House Appliances Solar Power PV System MPPT PWM Controller 500w Pure Sine Wave Inverter

Basic Information
Place of Origin: Shijiazhuang Hebei China
Certification: CE , SGS, ISO9001
Model Number: AY-500WM
Minimum Order Quantity: 1-2
Price: 30-5000$/Set,Price needs to be negotiated
Packaging Details: 1pcs/pack,6pcs/pack, 12pcs/pack,Can be customized
Delivery Time: 3-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000Sets/days
Detail Information
Name:: Solar Power PV System Solar Panel Type:: Monocrystalline Silicon
Controller Type:: MPPT, PWM Load Power (W):: 500W
Battery:: Lead Acid Battery Output Frequency: 50/60Hz
Inverter:: Pure Sine Wave Inverter DC Output:: 12VDC*4 5VDC*4
Mounting Type:: Ground Mounting, Roof Mounting, Carport Mounting Application:: Home, Commercial, Industrial, Solar Generator
AC Output:: 110V/220V Output Voltage (V):: 220V
Load:: House Appliances Warranty:: 3 Years
High Light:

MPPT Solar Power PV System


PWM Solar Power PV System


500w Pure Sine Wave Inverter

Product Description

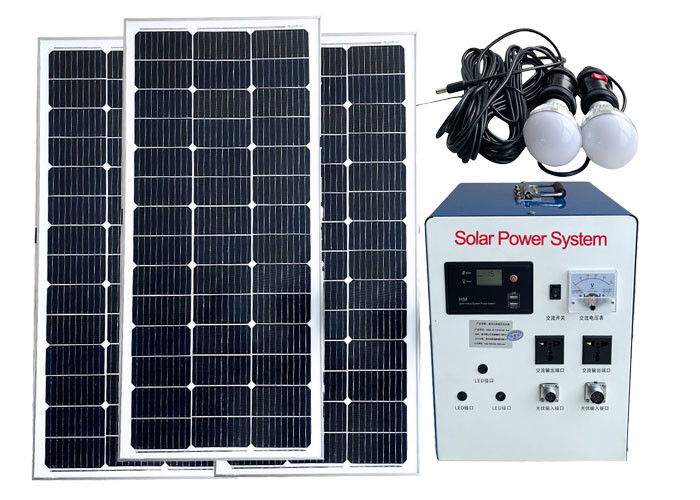

500W Pure Sine Wave Inverter Monocrystalline Silicon Solar Power PV System


Production Introduction


Solar Power PV System is widely used,can be used for outdoor Lighting,Home Power supply,Mobile phone charging ect. It solves the limitations of electricity. More and more people choose it for their home,farm and industry factory.


The whole System include three main part the solar panel(Polycrystalline/ Monocrystalline silicon), Lead acid battery(45AH-600AH),Inverter.


There are different accessories package can be choose,such as the LED light,USD cable and others.


Also we customized  the suitable power system depends on the load you want to use.


Product Feathure


1. DSP intelligent control chipset.

2. 3 times peak power,excellent loading capability.

3. AC prior/ECO mode/Battery prior selectable.

4. Combine inverter/solar controller/battery all in one

5. Adding fault code to monitor real-time work situations.

6. continuous stable pure sine wave output with inbuilt AVR stabilizer.

7. Inbuilt automatic AC charger and AC mains switcher,switch time ≤ 4ms.




Model AY-300WM AY-500WM AY-1000WM AY-1500WM
Capacity power 300W 500W 1000W 1500W
Input Standard battery voltage 12VDC 12VDC 24VDC 24VDC
AC input voltage range 73~138VAC(110VAC) / 145~275VAC(220VAC)
AC input frequency range 45Hz~65Hz(50Hz/60Hz automatic recognition)
Output Conversion efficiency ≥90%
Output voltage 110VAC/220VAC
Output frequency 50/60Hz
Output waveform Pure Sine Wave
DC Output port USB outputs *4 , 12VDC outputs*4
PWM solar charger PV input voltage range 15~44V 30~44V
Inbuilt battery Capacity 12.8V48AH 12.8V48AH 2*12.8V78AH 2*12.8V120AH




Transfer time ≤4ms
Display LCD
Working temperature '-15℃~60℃



Product Details


a) Heat dissipation design


Heat dissipation design on the side of the product to reduce damage to the product during long-term operation


b)Intimate Portable Design


Due to the weight of the product body, we have designed a sturdy portable for you, which is convenient for you to carry and move.


c)Meet the household power supply


Solar power generation system,it can help the family to solve the electricity problem anytime.





Family Emergency;Commercicl Emergency;Industrial Emergency;Travel


Why choose us


a)Solar product manufacturer,an enterprise integrating production, R&D and sales of solar products.Support ODM/OEM service.And our professional engineers can provide solar energy solutions for you.


b)Five production lines.A profession production team.100% quality inspections.


c)We have participated in many exhibitions.And our products are exported to Africa,Southeast Asia, the Middle East and South
Southeast Asia, the Middle East and South America.And well received by customers.


a)24 Hours Online Customer Service


b)Solar Solution Customization


c)2 Year Product Warranty


1. Q: Are you a solar power energy storage system manufacturer or trading company
A: We are a solar power energy storage system company that integrates R&D, production and sales of solar products


2. Q: Can I buy one or two units for the sample first?
A: Yes. Samples are welcome for the solar generator. You can buy the sample directly online here.Or please contact our sales manager to place the order.

3. Q: How to charge the portable solar generator?
A: There are two ways to charge the portable power station. By grid and solar panel .

4. Q: Do this portable power station/solar generator include the solar panel?
A: Yes. The portable power station include the solar panel and controller.

5. Q: What is the production time for this portable power station/solar generator?
A: The delivery time for the samples is usually 5-10 days. The production time for the mass production is usually 25-30 days.

6. Q: What is the warranty of this portable power station?
A: 3 year warranty (24 Months)

7. Q: What kind of application can be powered by this portable power station?
A: This portable power station can power Laptops, Tablets, and Lights, Mini Fridge, Power tool charging, TV and so on.If you don't understand how much power to choose a solar generator, we can help you according to your electrical appliance power.

House Appliances Solar Power PV System MPPT PWM Controller 500w Pure Sine Wave Inverter 0

House Appliances Solar Power PV System MPPT PWM Controller 500w Pure Sine Wave Inverter 1

House Appliances Solar Power PV System MPPT PWM Controller 500w Pure Sine Wave Inverter 2House Appliances Solar Power PV System MPPT PWM Controller 500w Pure Sine Wave Inverter 3

House Appliances Solar Power PV System MPPT PWM Controller 500w Pure Sine Wave Inverter 4
