| Place of Origin: | Shijiazhuang Hebei China |
|---|---|
| Certification: | CE , SGS, ISO9001 |
| Model Number: | AY-09-450W soloar energy PV system |
| Minimum Order Quantity: | 1-2 |
| Price: | 30-5000$/Set,Price needs to be negotiated |
| Packaging Details: | 1pcs/pack,6pcs/pack, 12pcs/pack,Can be customized |
| Delivery Time: | 3-25days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000Sets/days |
| Product Name: | Solar Power PV System | Solar Panel Type: | Mono Perc Solar Panels |
|---|---|---|---|
| Inverter: | Pure Sine Wine DC Inverter | Solar Power (w): | 1000W Home Solar Power Systems |
| Type: | DC/AC Inverters,Off Grid System | Battery: | 12V/200AH |
| Color: | Silver Or Customized | Battery Type: | Lead Acid |
| Output Frequency: | 50/60HZ | Controller Type: | MPPT |
| High Light: | 450watt Solar Energy PV System,MONO Perc Solar Energy PV System,200AH Perc Home Solar Energy Systems |
||
Solar energy is now the most environmentally friendly energy source in the world. Using the MARS solar system can reduce your electricity bill by 90%. 450watt MONO Perc Solar Module Solar Energy PV System For Use In Home And Outdoor produced by our company mainly include solar panel, solar controller, battery and inverter, through the professional assembling to be an easy using product; after some times of product upgrading, stands on the head of solar product peer. The product has many highlights, easy installation, maintenance free, safety and easy to solve the basic use of electricity.....
二．Parameter Specisfication
| 100kW On-grid Solar Energy System for Home | ||||||
| Model | Specifications | Size(mm) | Weight (kg) | Unit | Qty. | Basic parameters |
| Solar panel | 450W | 2094*1038*35 | 27.5 | pcs | 220 | Monocrystalline |
| silicon power: 450W, | ||||||
| working voltage: 41.4v, | ||||||
| working current: 10.87A, | ||||||
| open circuit voltage: 49.6V, | ||||||
| short circuit current: 11.52A, | ||||||
| service life: 25 years | ||||||
| inverter | 50kW | 647*629*252 | 45 | pc | 2 | Sinusoidal wave |
| output power: 50000W, | ||||||
| input voltage: DC1100V, | ||||||
| output voltage: 220/380Vac, | ||||||
| output frequency:50Hz/60Hz, | ||||||
| protection function: undervoltage/overvoltage, overload, overtemperature, short circuit, input reverse connection | ||||||
| Solar bracket | Q235B steel structure | Set | 1 | Stents | ||
| Material: Q235B, | ||||||
| surface treatment: hot dip zinc, | ||||||
| wind load capacity: 40m/s, 35Kg/m2 | ||||||
| Years of use: 25 years | ||||||
| Cables | 2*16mm2 | m | 500 | Rated voltage: 1000 v, | ||
| Working temperature:≤90ºC, | ||||||
| Features: exterior insulation, flame retardant, wear - resistant, anti - aging properties | ||||||
1.Safety and easy installation,Plug and play systems;
2. Long lifespan high efficiency good quality solar pane;
3. Solar Automatic lighting controller :with adjustable run times, over-current protection;
4. Solar Batteries: Maintenance free, long life batteries
5. Lighting Source: LED lamp (Fixed/Movable)
6. Flexible designs per client requests;
|

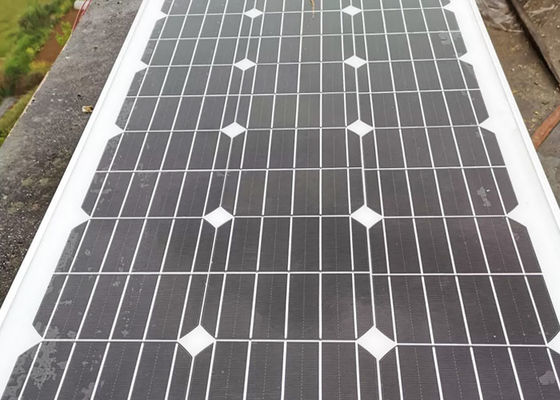

Solar Panel
|
MPPT solar charge controller Automatic power control function Modular design with sinmple structure and easy maintenance LCD & LED display Perfect protection for solar panel and battery Certificate: CE,ISO,SGS |
|
Inverter with MPPT
|
Off Grid Inverter > Single phase and Three phase |
Hebei Aoyin Trading Co.,ltd as the uniqueness agent for export to foreign markets,responsible for off grid solar system home solar panel 10000w solar power system export,sales,after-sales service etc, our company have about 10 years in the market,Two patents have applied, Obtained six utility model patents,Automated production facilities
