Picnic 500W Mini Solar Lighting System 110V / 220V Pure Sine Wave Inverter

Basic Information
Place of Origin: Shijiazhuang Hebei China
Certification: CE , SGS, ISO9001
Model Number: AY-1000WP
Minimum Order Quantity: 1-2
Price: 30-5000$/Set,Price needs to be negotiated
Packaging Details: 1pcs/pack,6pcs/pack, 12pcs/pack,Can be customized
Delivery Time: 3-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000Sets/days
Detail Information
Name:: Home Solar Power System Solar Panel Type:: Monocrystalline Silicon
Controller Type:: MPPT, PWM Load Power (W):: 500W
Battery:: Lead Acid Battery Output Frequency: 50/60Hz
Inverter:: Pure Sine Wave Inverter DC Output:: 12VDC*4 5VDC*4
Mounting Type:: Ground Mounting, Roof Mounting, Carport Mounting Application:: Home, Commercial, Industrial, Solar Generator
AC Output:: 110V/220V Output Voltage (V):: 220V
Load:: House Appliances Warranty:: 3 Years
High Light:

500W Mini Solar Lighting System


220V Mini Solar Lighting System


Picnic 220v Solar Power System

Product Description

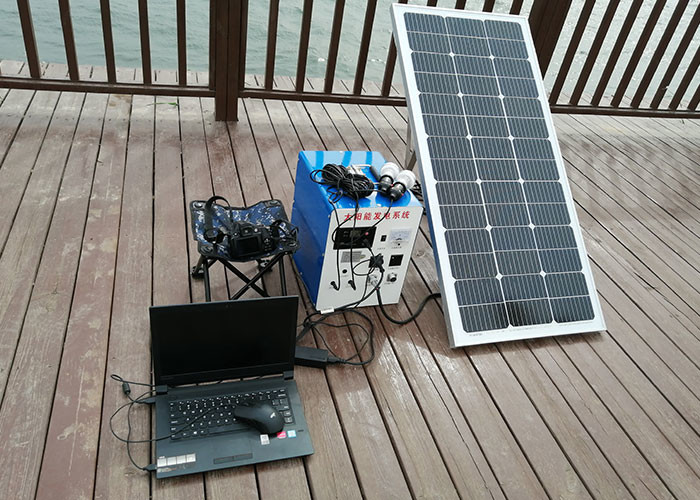

500W MINI Portable Solar Power Systems For Camping And Picnic


Portable Solar Power Systems Introduction


Solar Power System is a kind of  green energy.It is widely used in different filed. Such as home lighting, phone charging, small DC household appliances charging, camping ect.It solves the limitations of electricity. More and more people choose it for their home.


The whole System include three main parts the solar panel(Polycrystalline/ Monocrystalline silicon), Lead acid battery(45AH-600AH),Inverter.


There are different accessories package can be choose,such as the LED light,USB cable and others.


Also we customized  the suitable power system depends on the load you want to use.


Portable Solar Power Systems Specification


Model AY-300WM AY-500WM AY-1000WM AY-1500WM
Capacity power 300W 500W 1000W 1500W
Input Standard battery voltage 12VDC 12VDC 24VDC 24VDC
AC input voltage range 73~138VAC(110VAC) / 145~275VAC(220VAC)
AC input frequency range 45Hz~65Hz(50Hz/60Hz automatic recognition)
Output Conversion efficiency ≥90%
Output voltage 110VAC/220VAC
Output frequency 50/60Hz
Output waveform Pure Sine Wave
DC Output port USB outputs *4 , 12VDC outputs*4
PWM solar charger PV input voltage range 15~44V 30~44V
Inbuilt battery Capacity 12.8V48AH 12.8V48AH 2*12.8V78AH 2*12.8V120AH




Transfer time ≤4ms
Display LCD
Working temperature '-15℃~60℃
Application Family Emergency;Commercial Emergency;Industrial Emergency;Travel


Portable Solar Power Systems Character


1.DSP intelligent control chipset.


2. 3 times peak power,excellent loading capability.


3.AC prior/ECO mode/Battery prior selectable.


4.Combine inverter/solar controller/battery all in one


5.Adding fault code to monitor real-time work situations.


6.continuous stable pure sine wave output with inbuilt AVR stabilizer.


7.Inbuilt automatic AC charger and AC mains switcher,switch time ≤ 4ms.



Company Information


a)Solar product manufacturer,an enterprise integrating production, R&D and sales of solar products.Support ODM/OEM service.And our professional engineers can provide solar energy solutions for you.


b)Five production lines.A profession production team.100% quality inspections.


c)We have participated in many exhibitions.And our products are exported to Africa,Southeast Asia, the Middle East and South
Southeast Asia, the Middle East and South America.And well received by customers.


Key considerations when sizing solar systems


  • Daily average energy consumption (kWh) - Summer and winter
  • Peak load (kW) - Maximum power drawn from appliances
  • Average continuous load (kW)
  • Solar exposure - Location, climate, orientation & shading
  • Backup power options - During poor weather or shutdown
