|Place of Origin:||Shijiazhuang Hebei China|
|Brand Name:||ALLIN Solar Power System|
|Certification:||CE , SGS, ISO9001|
|Minimum Order Quantity:||1-2|
|Price:||30-5000$/Set,Price needs to be negotiated|
|Packaging Details:||1pcs/pack,6pcs/pack, 12pcs/pack,Can be customized|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Name:||2000W Output 400/600W Folding Panels Smart Solar Energe PV System||Model:||AY-ZD03-2000W|
|Battery Voltage:||12V||Battery Capacity:||200A|
|Solar Panel Material:||Poly/Mono Silicon||Controller:||12V 40A|
|Solar Panel Power:||400/600W||Output Power:||2000W|
|Output Frequency:||50Hz||Output Voltage:||5V12V110/220V|
SGS Solar Energy PV System,
200A Solar Energy PV System,
2kw solar system
Materials that can produce photovoltaic effect: monocrystalline silicon, polycrystalline silicon, amorphous silicon, gallium arsenide, selenium, indium copper, etc.N-type silicon can be obtained by doping P- type silicon and forming P-N junction.Crystalline silicon is the basic battery material.Solar cells made of crystalline silicon materials mainly include: monocrystalline silicon solar cells, cast polycrystalline silicon solar cells, amorphous silicon solar cells and thin film crystalline silicon solar cells.Monocrystalline silicon battery has high conversion efficiency, good stability, but high cost;Amorphous silicon solar cells have high production efficiency and low cost, but the conversion efficiency is low, and the efficiency decay is relatively fast.Cast polycrystalline silicon solar cells have stable conversion efficiency and the highest cost performance;Thin-film crystalline silicon solar cells are in the development stage.In the series of silicon solar cells, monocrystalline silicon and polycrystalline silicon cells continue to dominate the photovoltaic market, with the ratio of monocrystalline silicon and polycrystalline silicon exceeding 80%.
|Solar Panel (W)||Battery (A)||Host Machine (W)|
(1) Output voltage (V):2USB 5V, 3DC 12V, 2AC 110V or 220V
(2) Charging time (H):According to local illumination time and solar radiation intensity(about 8-10H)
(3) Discharging time (H):According to output power(about 6-8H)
(4) Circuit protection :Overload, Short-circuit, Reverse polarity, High/low Battery voltage
(5) Operating temperature (℃):-25℃~55℃
|Product Configuration Instructions|

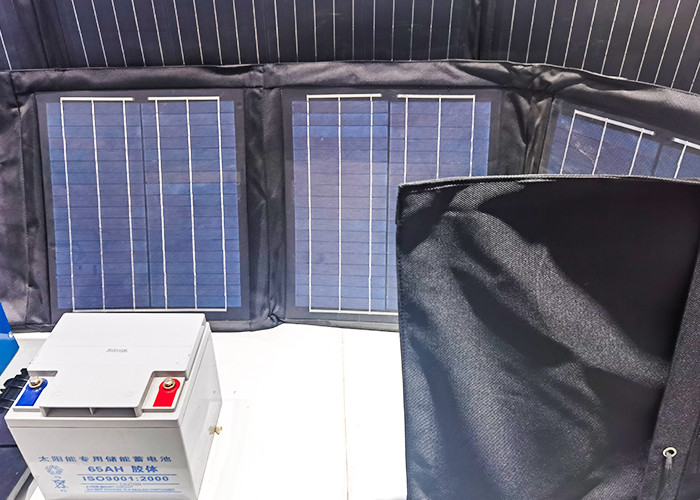

|1||400/600W Solar panels||
Poly/Mono silicon material
400W panel consists of eight 50W panels.
600W panel consists of twelve 50W panels.
(1)12V10A solar energy special controller, PMW intelligent, can prevent the battery over charge and discharge, effectively protect the battery.
(2)12V2000W solar positive wave inverter, the output is equal to the mains power, belongs to the highest level of waveform.
(3)AC Voltmeter, DC Voltmeter, AC Output socket , LED Socket, USB Socket, PV input socket, etc
(4)200A colloid maintenance-free solar battery.
|3||PV cables||Dedicated||1 Group|
|4||Connection fittings||Dedicated||1 Set|
|5||Panel bracket||Dedicated||1 Set|
|6||5W LED lights and wires||Wire length 6 meters, straight socket.||2 Sets|
The solar power PV system 2000W can be used for loads with 220V currents less than 9.1A.
