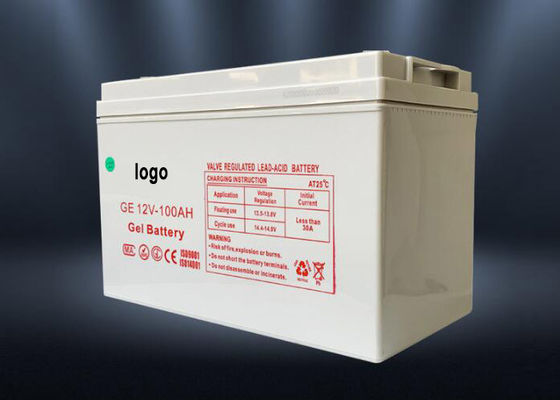

Sealed 12V 100AH Gel Deep Cycle Battery For Home Solar System

Basic Information
Place of Origin: Shijiazhuang Hebei China
Brand Name: ALLIN Solar Battery
Certification: CE , SGS, ISO9001
Model Number: AY-09-100AH Solar Battery
Minimum Order Quantity: 1-2
Price: 50-2000$/Set,Price needs to be negotiated
Packaging Details: 1pcs/pac,Can be customized
Delivery Time: 3-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000Sets/days
Detail Information
Product Name: Gel Solar Battery Application: Solar System, UPS, Control Equipment
Voltage: 12v,1.2V 12V 48V Rechargeable: Chargeable
Warranty: 1 Year, 2 Year Capacity: 100AH
Materails: High Pure Lead 99.997% Nominal Capacity: 100AH,100AH 120AH 150AH
Sealed Type: Sealed HS Code: 850720000
High Light:

12V 100AH Gel Deep Cycle Battery


12 Volt Gel Cell Deep Cycle Battery


Solar Deep Cycle Gel Battery 100AH 12V

Product Description

100AH 12V Gel Cell Deep Cycle Gel Solar Battery For Home Solar System


Gel Solar Battery Product details

The Gel solar battery lead-acid battery is an improvement of the ordinary lead-acid battery with liquid electrolyte. It replaces the sulfuric acid electrolyte with the colloidal electrolyte, which is better than ordinary batteries in terms of safety, storage capacity, discharge performance and service life.
The Gel Solar battery lead-acid battery adopts a gel-like electrolyte, and there is no free liquid inside. Under the same volume, the electrolyte capacity is large, the heat capacity is large, and the heat dissipation ability is strong. It can avoid the phenomenon of thermal runaway in general batteries; The corrosion effect is weak; the concentration is uniform, and there is no electrolyte layering phenomenon.


Model Normal Rated Weight Approx Dimension Terminal
Voltage Capacity (KG) Length(±3mm) Width(±3mm) Height(±3mm) Total Height(±3mm) Type
(V) (20HR)   (mm) (in.) (mm) (in.) (mm) (in.) (mm) (in.)
6-AY-55 12 55 15.3 230 9.06 140 5.51 225 8.86 225 8.86 NB/B
6-AY-65 12 65 20.5 330 12.99 174 6.85 220 8.66 175 6.89 NB/B
6-AY-75 12 75 22 260 10.24 170 6.69 230 9.06 230 9.06 NB/B
6-AY-80 12 80 24 260 10.24 170 6.69 230 9.06 230 9.06 NB/B
6-AY-90 12 90 26 330 12.99 174 6.85 220 8.66 225 8.86 NB/B
6-AY-100 12 100 29 330 12.99 174 6.85 220 8.66 225 8.86 B
6-AY-120 12 120 35.5 405 15.94 175 6.89 235 9.25 235 9.25 NB
6-AY-150 12 150 43 480 18.90 170 6.69 240 9.45 240 9.45 NB
6-AY-200 12 200 57 525 20.67 240 9.45 245 9.65 245 9.65 NB



Gel Solar Battery  Features:


1.Using oxygen recombination technology: maintenance-free
2. PbCaSn alloy for plate grids: less gassing, less self-discharging
3. High quality AGM separator: extend cycle life and prevent micro short circuit
4. ABS material: increase the strength of battery container. (Flame-retardant ABS is optional);
5. High purity raw material: ensure low self-discharge rate

6. Silver-coated copper terminals (T1, T2 terminal), brass insert terminals and lead terminals improve the electric conductivity


Sealed 12V 100AH Gel Deep Cycle Battery  For Home Solar System 0



Gel Solar Battery Applications :


1. All purpose
2. Uninterruptable Power Supply (UPS)
3. Electric Power System (EPS)
4. Emergency light
5. Emergency backup power supply
6. Auto control system
7. Tele-communication central station (wired or cellular)
8. Power system communication
9. Network communication including: data transmission, television signal transmission, etc.
10. Uninterruptable Power System (UPS- for Telecom)


Sealed 12V 100AH Gel Deep Cycle Battery  For Home Solar System 1


Gel Solar Battery Packing:Hard carton packaging


Sealed 12V 100AH Gel Deep Cycle Battery  For Home Solar System 2

Voltage Rated Capacity size Net weight Chemical type State of charge


12V 250AH 525*268*220(mm) 63KG Gel battery Maintenance-free battery


12V 200AH 525x240x219(mm) 55.5KG Gel battery Maintenance-free battery 1162-1102
12V 150AH 482*171*240(mm) 40KG Gel battery Maintenance-free battery 847-827
12V 120AH 405*173*231(mm) 32KG Gel battery Maintenance-free battery 688-668
12V 100AH 325*170*215(mm) 30KG Gel battery Maintenance-free battery 596-563
12V 80AH 330*171*215(mm) 24.5KG Gel battery Maintenance-free battery 496-476

Sealed 12V 100AH Gel Deep Cycle Battery  For Home Solar System 3


Gel Solar Battery FAQ


Q1: What're the terms of payment?
A: T/T 30% deposit in advance, The Balance before shipment. We'll show you the photos of the products and packages before you pay
the balance.
T/T 30% deposit in advance, The balance against L/C at sight.
100% L/C at sight

Q2: What're kinds of battery we supply?
A: AGM, Gel 12V 7AH-300AH, 2V 200AH-3000AH, OPzV/OPzS 2V 200AH-3000AH Batteries usage in the Solar system, UPS, Street Light, Control Equipment, Wind energy system, Telecommunication, Emergency System, etc.

Q3: How to maintain the battery?
A: The battery should be stored in a clean, dry, ventilated, dark environment when not using, keep it after a full charge,
recharge it every 3 months or 6 months.and must use it in one year.

Q4: If we could accept OEM & ODM Service
A: We could accept customized, such as the brand, Logo, Container color, etc.Dictionnaire.The premise is to reach a certain Quantity.

Q5: MOQ & Samples
A: According to the certain voltage and capacity of the batteries you need, different batteries with different MOQ.Because of the shipment. we really want to offer you a sample, but our batteries cannot be shipped by express or the MOQ must more than 300KG for the weight of total batteries.

Q6: About the certificates & Other services
A: We have a professional export sales team with full experience, and you just need to confirm the batteries you need and also advise us of the certificates you need and the docs for customs clearance.
