Off On Grid Hybrid Power Supply 1kw - 12kw Sine Wave Home Ups Inverter

Basic Information
Place of Origin: Shijiazhuang Hebei China
Brand Name: ALLIN home solar power systems inverter
Certification: CE , SGS, ISO9001
Model Number: AY-09-1KW
Minimum Order Quantity: 1-2
Price: 30-5000$/Set,Price needs to be negotiated
Packaging Details: 1pcs/pack,6pcs/pack, 12pcs/pack,Can be customized
Delivery Time: 3-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000Sets/days
Detail Information
Product Name: Solar Power System Ac Inverter Circuit Topologies: Half-Bridge Type
Nature Of Wave String: Sine Wave Inverter Power Source: Solar Power, Electric Power
HS Code: 8504403090 Output Type: Three Phase
Type: DC/AC Inverters Output Frequency: 50Hz/60Hz
Display: LED LCD Display Warranty: Three Years
High Light:

Lcd Solar Inverter For Home


1kw Sine Wave Home Ups Inverter


12kw Sine Wave Home Ups Inverter

Product Description


Off On Grid Hybrid Power Supply Home UPS Solar Power System AC Charger Inverter 1kw-12kw


1. Introduction


Inverter is a converter that converts DC electric energy (battery, storage battery) into fixed-frequency and constant-voltage or frequency-modulated alternating current (generally 220V, 50Hz sine wave). It is composed of inverter bridge, control logic and filter circuit.



2. Parameter Selection Table



Capacity VA / Watts 1KVA/1KW 1.5KVA/1.5KW 2KVA/2KW 3KVA/3KW 4KVA/4KW 5KVA/5KW 6KVA/6KW
Surge rating (10s) 3KVA 4.5KVA 6KVA 9KVA 12KVA 15KVA 18KVA
Efficiency >95% under AC mode,>88% under DC mode
Power Factor 0.9~1.0,
Input Normal voltage 220VAC/110V
220V Voltage range 184-270V+-4%
110V Voltage range 85-150V+-4%
Frequency range 50Hz/60HZ -3 +5 Hz (Auto detection)
Output Voltage (V) 220V/110V+-10%
Frequency (Hz) 50Hz/60HZ +-0.3 Hz
Wave form Pure Sine Wave
bypass without Battery yes
UPS Mode   Grid power first. Battery power ( Solar Power) as backup
Solar inverter Mode   Solar Power First, Grid power as Backup
Transfer Time less than 10 ms (typical)
Overload capacity DC Mode(SMPS load) (110%<load<125%) ±10% for 15 minutes;(125%<load<150%) ±10% for 60s;
Load>150% ±10% for 20s
AC Mode(SMPS load) by breaker
Protection Overload Current limit under DC mode ,Breaker under AC mode
Battery Protection Over charge, Over discharge,DC Breaker,Alarm
Over Temperature Variable speed fan,LED lighting and alarm
Back-Feed Protection yes
short Circuit. by breaker.Faul after 10 secs
Battery Charger AC input 95-127V, 194(164)--243V
DC input 12VDC /24VDC or 48VDC,external Battery
Charge Voltage for 12VDC system,Boost voltage 14-15.5V selectable for different Battery. The others are multiple
Charger Current 12-75AMP difference for different mode
Charge Manage digital control,Three stage charger
Display LED Line On/ Inverter on / Fast Charger / Float charge / Over Temp. trip / Over load trip / Power Saver on
Audible Alarm Battery Low,Battery High,Over Temp. Over load,Fail,Over charge
Optional RS232 Communication,SNMP Net Agent,Remote Control
Power Saver below 25W when enabled.loading checking 2 time/sec.
Working Environment Temperature 0°C to 40°C
Noise 60dB max
Humidity 5% to 95%
Package Carton Carton Carton Carton Carton Carton Carton
Package Size WxDxH (mm) 590*335*320 590*335*320 590*335*320 590*335*320 765*340*320 765*340*320 765*340*320
Gross Weight KG 17 18 22 26 38 48 48
ATTENTION the inverter do not build in solar charger controller.

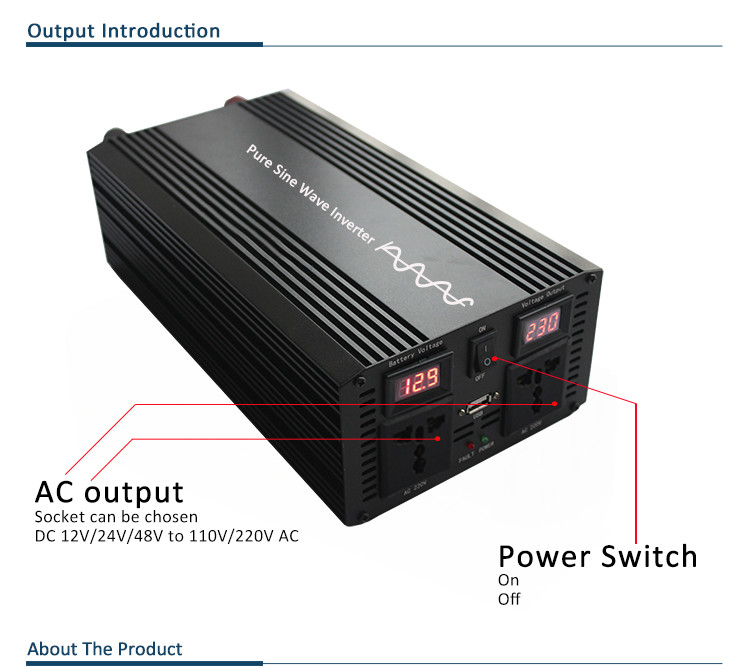

Off On Grid Hybrid Power Supply 1kw - 12kw Sine Wave Home Ups Inverter 0


Off On Grid Hybrid Power Supply 1kw - 12kw Sine Wave Home Ups Inverter 1

Off On Grid Hybrid Power Supply 1kw - 12kw Sine Wave Home Ups Inverter 2


3. Advantage


1) TOP 5 manufacturer, 15 years Rich experience , 8000 square meters, 200 employees ,15 Engineers.
2) QC control,100% inspection before shipment .
3) 10 years experience in international bidding together with dealer.
We constantly improve the design and provide new products. And we are the only one
who can sign "Quality Warranty"&"On Time Delivery Warranty" with clients.



4. Application


It is widely used in air conditioners, home theaters, electric grinding wheels, electric tools, sewing machines, DVDs, VCDs, computers, TVs, washing machines, range hoods, refrigerators, video recorders, massagers, fans, lighting, etc. In foreign countries, because of the high popularity of automobiles, you can use inverters to connect batteries to drive electrical appliances and various tools to work when you go out to work or travel. The car inverter output through the cigarette lighter is 20W, 40W, 80W, 120W to 150W power specifications. The higher power inverter power supply should be connected to the battery through the connecting wire. Various electrical appliances can be used in the car by connecting household appliances to the output end of the power converter. The electrical appliances that can be used are: mobile phones, laptops, digital cameras, cameras, lights, electric shavers, CD players, game consoles, handheld computers, power tools, car refrigerators, and various travel, camping, and medical emergency appliances Wait.


Off On Grid Hybrid Power Supply 1kw - 12kw Sine Wave Home Ups Inverter 3


Off On Grid Hybrid Power Supply 1kw - 12kw Sine Wave Home Ups Inverter 4



5. FAQ


Q: Are you factory or trade company?
A:We have two factories in China. we make UPS/Inverter/Battery in Foshan city
which is close to tianjin
Q:How to Collect the goods together from Two Factory?
A:We will collect the goods together. And arranging the shipment from tianjin .
Q:Can I get a sample to check quality before mass order?
A: Sure, don't hesitate to contact me.
Q:How long is the warranty?
A:One year or Two years for electronic products and batteries. 10 years for Solar panel.
More details be shown in the Performa Invoice .
Q:What's the delivery time?
A:Usually for sample order within one week, for mass order 10-30days.
Q:Do you provide OEM/ODM service?
A:we have experienced R&D team, welcome to place OEM/ODM orders.
Q:What's the payment terms?
A:T/T,W/U or LC options.



6. Payment


  •  Payment: T/T /LC, 30% deposits before production, 70% balance to be paid before deliverying

  •  Production lead time for 100~500PCS: 7-14days, 500~1000PCS: 14-20days

  •  Sample can be delivered in 7days

  •  Shipping freight are quoted under your requests

  • Shipping port: Qingdao, Mainland China

  • Discounts are offered based on order quantities
