Product Details
Place of Origin: China
Brand Name: PVkingdom
Certification: CE/RoHS/UN38.3/MSDS
Model Number: U Series
Payment & Shipping Terms
Minimum Order Quantity: 10 units
Price: negotiable
Packaging Details: wooden Case
Delivery Time: 5-7 working days
Payment Terms: T/T
Supply Ability: 500 units/week
Name: |
Wall Mounted LiFePO4 Battery 7.5kwh |
Nominal Voltage: |
24V/25.6V 48V/51.2V |
Communication Port: |
CAN, RS485 |
Output Power Range: |
3-50kwh |
Grid Connection: |
Off Grid, Hybrid Grid |
Application: |
Home Appliances, BOATS, Solar Energy System.. |
Cycle Life: |
Over 6000 Times |
Warranty: |
5-10 Years |
Type: |
All-in-one |
OEM/ODM: |
Accepatable |
Name: |
Wall Mounted LiFePO4 Battery 7.5kwh |
Nominal Voltage: |
24V/25.6V 48V/51.2V |
Communication Port: |
CAN, RS485 |
Output Power Range: |
3-50kwh |
Grid Connection: |
Off Grid, Hybrid Grid |
Application: |
Home Appliances, BOATS, Solar Energy System.. |
Cycle Life: |
Over 6000 Times |
Warranty: |
5-10 Years |
Type: |
All-in-one |
OEM/ODM: |
Accepatable |

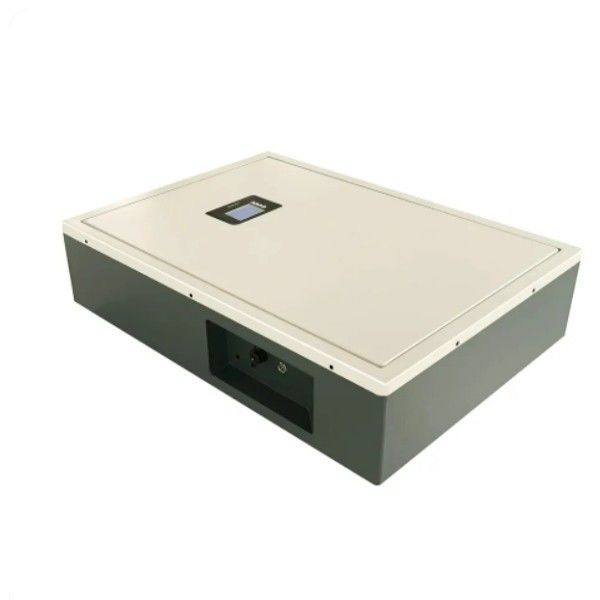

48V 51.2v 150ah 7.5kwh Residential Energy Storage Home Wall Mounted LiFePO4 Battery 150ah 48v Lifepo4 Powerwall
| Battery Configuration | 2P16S |
| Nominal Voltage | 51.2V |
| Working Voltage Range | 42V~58.4V |
| Nominal Capacity | 100ah 150ah 200ah |
| Nominal Power | 10.24KWh(95%DOD) |
| Standard Charging/Discharging Current | 100A @25±2℃ |
| Maximum Charging Current | 200A@25±2℃ |
| Maximum Discharging Current | 200A @25±2℃ |
| Working Ambient Temperature | 0~45℃(Charge) -10~40℃(Discharge) |
| Storage Temperature & Humidity | -10℃~35℃ (within 1 month storage) 25±2℃ (within 3 months storage) 65%±20%RH |
| Size (L x W x H) | (860)×(638)×(180)mm |
| Weight | 103Kg±3kg |
| Cycling Lifespan | 4000 cycles @25℃ 100A Charging/discharging current 80% DOD |
| IP Rate | IP 65 |
| Communication | CAN or RS485 |
| Altitude | 0-3000m |
| Humidity Range | 5~95%RIMDIN 51.2V 200AH LIFEPO4 BATTERY PACK |
