Product Details
Place of Origin: China
Brand Name: Growatt
Certification: CE, IEC62109, IEC 62040, VDE-AR-N 4105, VDE 0126, UTE C 15-712, C10/C11，EN50549, CEI 0-21, CEI 0-16, IEC62116, IEC61727, AS/NZS 4777 , G98, TOR Erzeuger
Model Number: MAC 50KTL3-X LV
Payment & Shipping Terms
Minimum Order Quantity: 10 units
Price: negotiable
Packaging Details: carton package
Supply Ability: 1000units/week
Type: |
DC/AC Inverters |
Output Type: |
Three Phase |
Inverter Efficiency: |
98.8% |
Input Voltage: |
1100v |
Output Voltage: |
180V-1100V |
Output Frequency: |
50Hz/60Hz |
Warranty: |
5-10 Years |
Display: |
OLED+LED/WIFI+APP |
Protection Degree: |
IP65 |
Apply For: |
Commercial & Industrial |
Type: |
DC/AC Inverters |
Output Type: |
Three Phase |
Inverter Efficiency: |
98.8% |
Input Voltage: |
1100v |
Output Voltage: |
180V-1100V |
Output Frequency: |
50Hz/60Hz |
Warranty: |
5-10 Years |
Display: |
OLED+LED/WIFI+APP |
Protection Degree: |
IP65 |
Apply For: |
Commercial & Industrial |

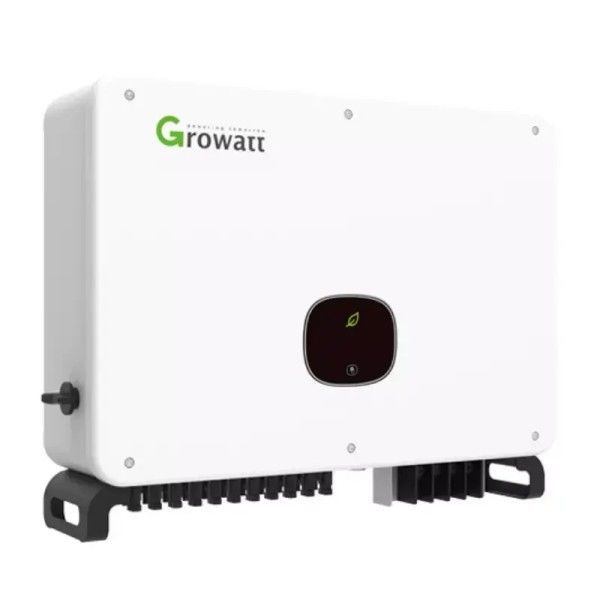

MAC 50KTL3-X LV on grid solar inverter 50KW Three Phase Growatt On Grid Inverter Commercial industry inverter
| Datasheet | MAC 50KTL3-X LV | MAC 50KTL3-X MV | MAC 60KTL3-X LV | MAC 60KTL3-X MV | MAC 70KTL3-X MV | |||||
| Inputu Data(DC) | ||||||||||
| Max. recommended PV power(for module STC) | 75000W | 75000W | 90000W | 90000W | 105000W | |||||
| Max.DC voltage | 1100V | |||||||||
| Start voltage |
|
|||||||||
| Nominal voltage | 600V | 700V | 600V | 700V | 700V | |||||
| MPPT voltage range | 200V-1000V | |||||||||
| No. of MPP trackers | 3 | |||||||||
| No. of PV strings per MPP tracker | 4/3/3 | 4/3/3 | 4/4/4 | 4/4/4 | 4/4/4 | |||||
| Max. input current per MPP tracker | 52A/39A/39A | 52A/39A/39A | 52A/52A/52A | 52A/52A/52A | 52A/52A/52A | |||||
| Max. short-circuit current per MPP tracker | 55A | |||||||||
| Output Data(AC) | ||||||||||
| Rated AC output power | 50000W | 50000W | 60000W | 60000W | 70000W | |||||
| Max. AC apparent power | 55500VA | 55500VA | 66600VA | 66600VA | 77700VA | |||||
| Nominal AC voltage(range*) | 230V/400V (340-440V) | 277V/480V (425-540V) | 230V/400V (340-440V) | 277V/480V (425-540V) | 277V/480V (425-540V) | |||||
| AC grid frequency(range*) | 50/60 Hz (45-55Hz/55-65 Hz) | |||||||||
| Max. output current | 80.5A | 66.9A | 96.6A | 80.2A | 93.6A | |||||
| Adjustable power factor | 0.8leading 0.8lagging | |||||||||
| THDi | <3% | |||||||||
| AC grid connection type | 3W+N+PE | 3W+PE | 3W+N+PE | 3W+PE | 3W+PE | |||||
| Efficiency | ||||||||||
| Max. efficiency | 98.8% | |||||||||
| European efficiency | 98.5% | |||||||||
| MPPT efficiency | 99.9% | |||||||||
| Protection Devices | ||||||||||
| DC reverse polarity protection | Yes | |||||||||
| DC switch | Yes | |||||||||
| AC/DC surge protection | Type II / Type II | |||||||||
| Insulation resistance monitoring | Yes | |||||||||
| AC short-circuit protection | Yes | |||||||||
| Ground fault monitoring | Yes | |||||||||
| Grid monitoring | Yes | |||||||||
| Anti-islanding protection | Yes | |||||||||
| Residual-current monitoring unit | Yes | |||||||||
| General Data | ||||||||||
| Dimensions(W / H / D) | 680/508/281mm | |||||||||
| Weight | 52kg | |||||||||
| Operating temperature range | –25°C ... +60°C | |||||||||
| Nighttime power consumption | <1W | |||||||||
| Topology | Transformerless | |||||||||
| Cooling | Smart air cooling | |||||||||
| Protection degree | IP65 | |||||||||
| Relative humidity | 0~100% | |||||||||
| Altitude | 4000m | |||||||||
| DC connection | H4/MC4(Optional) | |||||||||
| AC connection | Cable gland+OT terminal | |||||||||
| Display | OLED+LED/WIFI+APP | |||||||||
| Interfaces: RS485 / USB /WiFi/ GPRS / RF |
Yes/Yes /Optional/Optional/Optional | |||||||||
| Warranty: 5 years / 10 years | Yes/Optional | |||||||||
| CE, IEC62116, IEC61727, IEC60068, IEC61683, IEEE1547 | ||||||||||
