12 MPPT Goodwe Solar Inverter GW-225K-HT 225kW Three Phase Pv Inverter

Name: 12 MPPT Goodwe Solar Inverter GW-225K-HT 225kW Three Phase Pv Inverter
Brand: PVkingdom (Chongqing) New Energy Co., Ltd.
SKU: GW-225K-HT
Price: 0.12 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Goodwe

Certification: SAA / CE / ROHS / ISO9001 / CCC

Model Number: GW-225K-HT

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Price: negotiable

Packaging Details: carton package

Supply Ability: 1000units/week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      GW-225K-HT 225kW, 12 MPPT Goodwe Solar Inverter, 225kW Three Phase Pv Inverter


Type:	DC/AC Inverters	Phase:	Three Phase
Inverter Efficiency:	98.8%	Input Voltage:	180-1500V
Output Frequency:	50/60Hz	Protection Degree:	IP66
Operating Altitude:	4000(>3000 Derating)	Operation Temperature Range:	-30~60℃
User Interface:	LED, Bluetooth+APP	MPPT:	12 MPPTs

Type:	DC/AC Inverters
Phase:	Three Phase
Inverter Efficiency:	98.8%
Input Voltage:	180-1500V
Output Frequency:	50/60Hz
Protection Degree:	IP66
Operating Altitude:	4000(>3000 Derating)
Operation Temperature Range:	-30~60℃
User Interface:	LED, Bluetooth+APP
MPPT:	12 MPPTs

Description

12 MPPT Goodwe Solar Inverter GW-225K-HT 225kW Three Phase Pv Inverter

GW-225K-HT 225kW Three phase 12 MPPTs on grid solar inverter Goodwe On Grid InverterGoodwe HT series

Input
Max. Input Voltage (V)	1500	1500	1500	1500
MPPT Operating Voltage Range (V)	500 ~ 1500	500 ~ 1500	500 ~ 1500	500 ~ 1500
Start-up Voltage (V)	550	550	550	550
Nominal Input Voltage (V)	1160	1160	1160	1160
Max. Input Current per MPPT (A)	30	30	60	60
Max. Short Circuit Current per MPPT (A)	50	50	90	90
Number of MPP Trackers	12	12	6	6
Number of Strings per MPPT	2	2	3	3
Output
Nominal Output Power (kW)	225	250	225	250
Nominal Output Apparent Power (kVA)	225	250	225	250
Max. AC Active Power (kW)	247.5	250	247.5	250
Max. AC Apparent Power (kVA)	247.5	250	247.5	250
Nominal Output Voltage (V)	800, 3L / PE	800, 3L / PE	800, 3L / PE	800, 3L / PE
Nominal AC Grid Frequency (Hz)	50 / 60	50 / 60	50 / 60	50 / 60
Max. Output Current (A)	178.7	180.5	178.7	180.5
Power Factor	~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion	<3%	<3%	<3%	<3%
Efficiency
Max. Efficiency	99.0%	99.0%	99.0%	99.0%
European Efficiency	98.5%	98.5%	98.7%	98.7%
Protection
PV String Current Monitoring	Integrated	Integrated	Integrated	Integrated
PV Insulation Resistance Detection	Integrated	Integrated	Integrated	Integrated
Residual Current Monitoring	Integrated	Integrated	Integrated	Integrated
PV Reverse Polarity Protection	Integrated	Integrated	Integrated	Integrated
Anti-islanding Protection	Integrated	Integrated	Integrated	Integrated
AC Overcurrent Protection	Integrated	Integrated	Integrated	Integrated
AC Short Circuit Protection	Integrated	Integrated	Integrated	Integrated
AC Overvoltage Protection	Integrated	Integrated	Integrated	Integrated
DC Switch	Integrated	Integrated	Integrated	Integrated
DC Surge Protection	Type II	Type II	Type II	Type II
AC Surge Protection	Type II	Type II	Type II	Type II
Emergency Power Off	Optional	Optional	Optional	Optional
Remote Shutdown	Optional	Optional	Optional	Optional
Anti-PID	Optional	Optional	Optional	Optional
General Data
Operating Temperature Range (°C)	-30 ~ +60	-30 ~ +60	-30 ~ +60	-30 ~ +60
Relative Humidity	0 ~ 100%	0 ~ 100%	0 ~ 100%	0 ~ 100%
Max. Operating Altitude (m)	5000 (>4000 derating)	5000 (>4000 derating)	5000 (>4000 derating)	5000 (>4000 derating)
Cooling Method	Smart Fan Cooling	Smart Fan Cooling	Smart Fan Cooling	Smart Fan Cooling
User Interface	LED (LCD optional), Bluetooth + APP
Communication	RS485 or PLC	RS485 or PLC	RS485 or PLC	RS485 or PLC
Communication Protocols	Modbus RTU	Modbus RTU	Modbus RTU	Modbus RTU
Weight (kg)	111	111	111	111
Dimension (W × H × D mm)	1091 × 678 × 341	1091 × 678 × 341	1091 × 678 × 341	1091 × 678 × 341
Topology	Non-isolated	Non-isolated	Non-isolated	Non-isolated
Self-consumption at Night (W)	<18	<18	<18	<18
Ingress Protection Rating	IP66	IP66	IP66	IP66
DC Connector	MC4-Evo2 (4 ~ 6mm²)	MC4-Evo2 (4 ~ 6mm²)	MC4-Evo2 (4 ~ 6mm²)	MC4-Evo2 (4 ~ 6mm²)
AC Connector	OT / DT terminal (Max. 300mm²)
: Please visit GoodWe website for the latest certificates. : The product appearance shown is GW225KN-HT / GW250KN-HT. The appearance may vary for GW225K-HT / GW250K-HT.

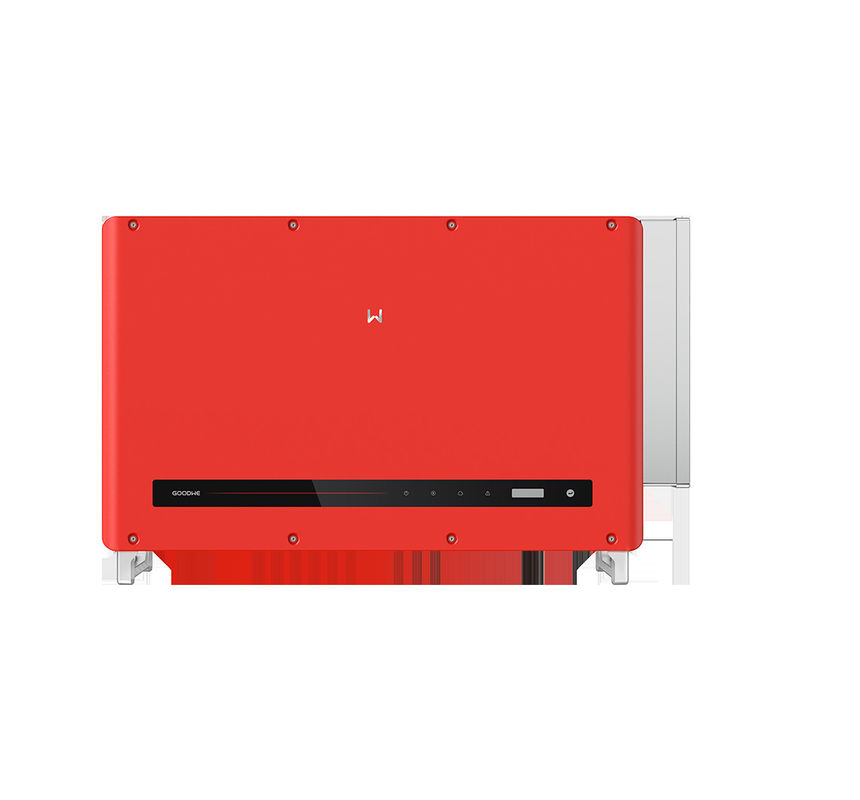

12 MPPT Goodwe Solar Inverter GW-225K-HT 225kW Three Phase Pv Inverter 0

12 MPPT Goodwe Solar Inverter GW-225K-HT 225kW Three Phase Pv Inverter 1

12 MPPT Goodwe Solar Inverter GW-225K-HT 225kW Three Phase Pv Inverter 2
