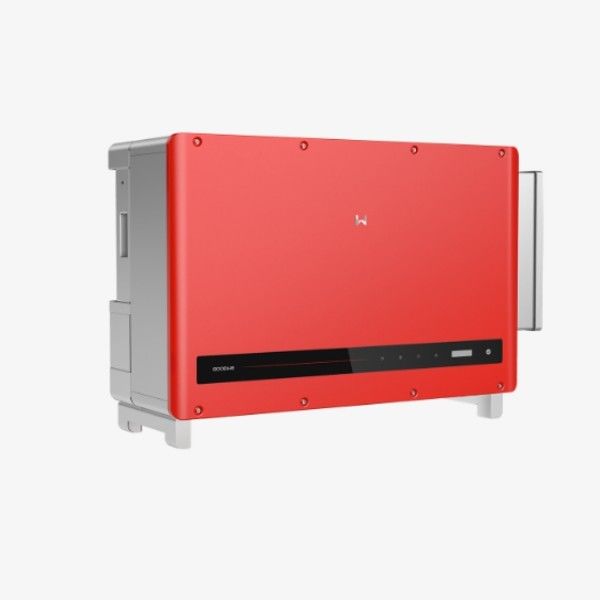

GW73KLV-HT 73kW Three phase on grid solar inverter Goodwe On Grid Inverter commercial industrial solar inverter

Name: GW73KLV-HT 73kW Three phase on grid solar inverter Goodwe On Grid Inverter commercial industrial solar inverter
Brand: PVkingdom (Chongqing) New Energy Co., Ltd.
SKU: GW73KLV-HT
Price: 0.12 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Goodwe

Certification: SAA / CE / ROHS / ISO9001 / CCC

Model Number: GW73KLV-HT

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Price: negotiable

Packaging Details: carton package

Supply Ability: 1000units/week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      GW73KLV-HT 73kW Inverter, GW73KLV-HT 73kW solar inverter, GW73KLV-HT solar 73kW inverter


Type:	DC/AC Inverters	Phase:	Three Phase
Inverter Efficiency:	98.8%	Input Voltage:	180-1500V
Output Frequency:	50/60Hz	Protection Degree:	IP65
Operating Altitude:	4000(>3000 Derating)	Operation Temperature Range:	-30~60℃
User Interface:	LED, Bluetooth+APP	PID Recovery:	Optional

Type:	DC/AC Inverters
Phase:	Three Phase
Inverter Efficiency:	98.8%
Input Voltage:	180-1500V
Output Frequency:	50/60Hz
Protection Degree:	IP65
Operating Altitude:	4000(>3000 Derating)
Operation Temperature Range:	-30~60℃
User Interface:	LED, Bluetooth+APP
PID Recovery:	Optional

Description

GW73KLV-HT 73kW Three phase on grid solar inverter Goodwe On Grid Inverter commercial industrial solar inverter

GW73KLV-HT 73kW Three phase on grid solar inverter Goodwe On Grid Inverter commercial industrial solar inverter

Input

Max. Input Voltage (V)	800	1100	1100	1100	1100	1100
MPPT Operating Voltage Range (V)	180 ~ 650	180 ~ 1000	180 ~ 1000	180 ~ 1000	180 ~ 1000	180 ~ 1000
Start-up Voltage (V)			200
Nominal Input Voltage (V)	370	600	600	600	600	600
Max. Input Current per MPPT (A)			30
Max. Short Circuit Current per MPPT (A)			45
Number of MPP Trackers	12	10	10	10	12	12
Number of Strings per MPPT			2

Output

Nominal Output Power (kW)	73	75	80	100^*1	110	120
Nominal Output Apparent Power (kVA)	73	75	80	100^*1	110	120
Max. AC Active Power (kW)	69@208V; 73@220V; 75@240V	75	88	110^*1	121^*1	132^*1
Max. AC Apparent Power (kVA)	75	75	88	110^*1	121^*1	132^*1
Nominal Output Voltage (V)	220V, 3L / N / PE or 3L / PE	380V / 400V, 3L / N / PE or 3L / PE^*2		400V, 3L / N / PE or 3L / PE^*2
Output Voltage Range (V)	187 ~ 242	320 ~ 440	320 ~ 440	320 ~ 440	320 ~ 440	320 ~ 440
Nominal AC Grid Frequency (Hz)			50 / 60
AC Grid Frequency Range (Hz)			45 ~ 55 / 55 ~ 65
Max. Output Current (A)	192.0	125.3	134.0	167.0	175.5	191.3
Power Factor		~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion			<3%

Efficiency

Max. Efficiency	98.4%	98.6%	98.6%	98.6%	98.6%	98.6%
European Efficiency	98.1%	98.3%	98.3%	98.3%	98.3%	98.3%

Protection

PV String Current Monitoring			Integrated
PV Insulation Resistance Detection			Integrated
Residual Current Monitoring			Integrated
PV Reverse Polarity Protection			Integrated
Anti-islanding Protection			Integrated
AC Overcurrent Protection			Integrated
AC Short Circuit Protection			Integrated
AC Overvoltage Protection			Integrated
DC Switch			Integrated
DC Surge Protection			Type II (Type I optional)
AC Surge Protection			Type II (Type I optional)
AFCI			Optional
Remote Shutdown			Optional
PID Recovery			Optional

General Data

Operating Temperature Range (°C)			-30 ~ +60
Relative Humidity			0 ~ 100%
Max. Operating Altitude (m)			5000 (>4000 derating)
Cooling Method			Smart Fan Cooling
User Interface			LED, LCD (Optional), WLAN + APP
Communication			RS485, WiFi or 4G (Optional)
Communication Protocols			Modbus-RTU (SunSpec Compliant)
Weight (kg)	98.5	93.5	93.5	93.5	98.5	98.5
Dimension (W × H × D mm)			1008 ^×678 ^×343
Topology			Non-isolated
Self-consumption at Night (W)			<2
Ingress Protection Rating			IP66
DC Connector			MC4 (4 ~ 6mm²)
AC Connector			OT / DT terminal (Max. 300mm²)
1: For Australia is 99.99kW / kVA (GW100K-HT). 1: For Chile Max. AC Active Power (kW) & Max. AC Apparent Power (kVA): GW100K-HT is 100K; GW110K-HT is 110K; GW120K-HT is 120K. 2: For Brazil, Nominal Output Voltage (V): 380, 3L / N / PE or 3L / PE. : Please visit GoodWe website for the latest certificates. *: All pictures shown are for reference only. Actual appearance may vary.

GW73KLV-HT 73kW Three phase on grid solar inverter Goodwe On Grid Inverter commercial industrial solar inverter 0

GW73KLV-HT 73kW Three phase on grid solar inverter Goodwe On Grid Inverter commercial industrial solar inverter 1

GW73KLV-HT 73kW Three phase on grid solar inverter Goodwe On Grid Inverter commercial industrial solar inverter 2
