Product Details
Place of Origin: China
Brand Name: Goodwe
Certification: SAA / CE / ROHS / ISO9001 / CCC
Model Number: GW80K-MT
Payment & Shipping Terms
Minimum Order Quantity: 10 units
Price: negotiable
Packaging Details: carton package
Supply Ability: 1000units/week
Type: |
DC/AC Inverters |
Phase: |
Three Phase |
Inverter Efficiency: |
98.8% |
Input Voltage: |
180-1500V |
Output Frequency: |
50/60Hz |
Protection Degree: |
IP65 |
Operating Altitude: |
4000(>3000 Derating) |
Operation Temperature Range: |
-30~60℃ |
User Interface: |
LED, Bluetooth+APP |
PID Recovery: |
Optional |
Type: |
DC/AC Inverters |
Phase: |
Three Phase |
Inverter Efficiency: |
98.8% |
Input Voltage: |
180-1500V |
Output Frequency: |
50/60Hz |
Protection Degree: |
IP65 |
Operating Altitude: |
4000(>3000 Derating) |
Operation Temperature Range: |
-30~60℃ |
User Interface: |
LED, Bluetooth+APP |
PID Recovery: |
Optional |

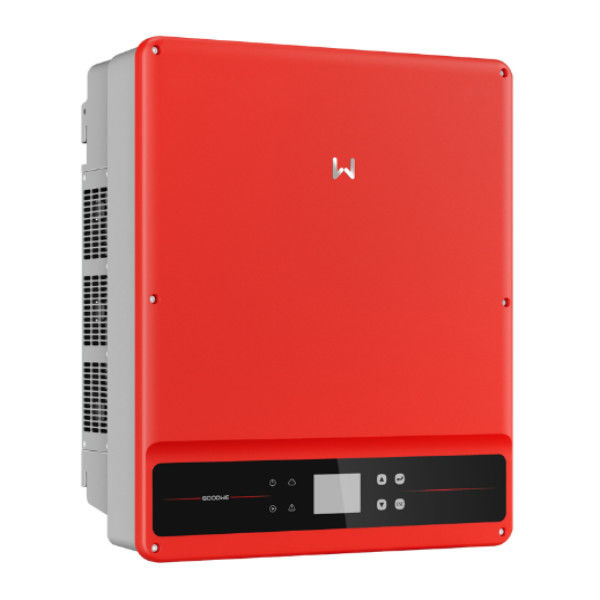

MT GW80K-MT 80kW Goodwe On Grid Inverter Three phase on grid solar inverter commercial industrial solar inverter
MT Series | |||||||||||
Technical Data | GW50KN -MT |
GW60KN -MT |
GW50KBF -MT |
GW60KBF -MT |
GW75KBF -MT |
GW80KBF -MT |
GW70KHV -MT |
GW80KHV -MT |
GW75K -MT |
GW80K -MT |
|
Input | |||||||||||
Max. Input Voltage (V) | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | |
MPPT Operating Voltage Range (V) | 200 ~ 1000 | 200 ~ 1000 | 200 ~ 1000 | 200 ~ 1000 | 200 ~ 1000 | 200 ~ 1000 | 200 ~ 1000 | 200 ~ 1000 | 200 ~ 1000 | 200 ~ 1000 | |
Start-up Voltage (V) | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |
Nominal Input Voltage (V) | 620 | 620 | 620 | 620 | 750 | 800 | 750 | 800 | 600 | 620 | |
Max. Input Current per MPPT (A) | 33 / 33 / 22 / 22 |
33 | 30 | 44 | 44 | 39 | 33 | 44 | 44 | 44 | |
Max. Short Circuit Current per MPPT (A) | 41.5 / 41.5 / 27.5 / 27.5 |
41.5 | 37.5 | 55.0 | 55.0 | 54.8 | 41.5 | 55.0 | 55.0 | 55.0 | |
Number of MPP Trackers | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
Number of Strings per MPPT | 3 / 3 / 2 / 2 | 3 | 2 | 3 | 3 | 3 | 3 | 4 | 4 (Standard), 3 (Optional, Support bifacial module) |
||
Output | |||||||||||
Nominal Output Power (W) | 50000 | 60000 | 50000 | 60000 | 75000 | 80000 | 70000 | 80000 | 75000 | 80000 | |
Nominal Output Apparent Power (VA) | 50000 | 60000 | 50000 | 60000 | 75000 | 80000 | 70000 | 80000 | 75000 | 80000 | |
Max. AC Active Power (W) | 55000; 57500 @415V*1 | 66000; 69000 @415V*1 | 55000; 57500 @415V*1 | 66000; 69000 @415V*1 | 82500*1 | 88000*1 | 77000*1 | 88000*1 | 75000 | 88000*1 | |
Max. AC Apparent Power (VA) | 55000; 57500 @415V*2 | 66000; 69000 @415V*2 | 55000; 57500 @415V*2 | 66000; 69000 @415V*2 | 82500*2 | 88000*2 | 77000*2 | 88000*2 | 75000 | 88000*2 | |
Nominal Output Voltage (V) | 400, 3L / N / PE or 3L / PE | 500, 3L / PE | 540, 3L / PE | 500, 3L / PE | 540, 3L / PE | 400, 3L / N / PE or 3L / PE | |||||
Nominal AC Grid Frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 | |
Max. Output Current (A) | 80.0 | 96.0 | 80.0 | 96.0 | 95.3 | 94.1 | 89.0 | 94.1 | 133.0 | 133.0 | |
Power Factor | ~1 (adjustable from 0.8 lagging to 0.8 leading) | ||||||||||
Max. Total Harmonic Distortion | <3% | <3% | <3% | <3% | <3% | <3% | <3% | <3% | <3% | <3% | |
Efficiency | |||||||||||
Max. Efficiency | 98.7% | 98.8% | 98.8% | 98.8% | 99.0% | 99.0% | 99.0% | 99.0% | 98.8% | 98.8% | |
European Efficiency | 98.3% | 98.5% | 98.3% | 98.3% | 98.4% | 98.4% | 98.4% | 98.4% | 98.3% | 98.3% | |
Protection | |||||||||||
PV String Current Monitoring | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | |
PV Insulation Resistance Detection | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | |
Residual Current Monitoring | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | |
PV Reverse Polarity Protection | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | |
Anti-islanding Protection | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | |
AC Overcurrent Protection | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | |
AC Short Circuit Protection | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | |
AC Overvoltage Protection | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | |
DC Switch | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | |
DC Surge Protection | Type II | Type II | Type II | Type II | Type II | Type II | Type II | Type II | Type II | Type II | |
AC Surge Protection | Type II | Type II | Type II | Type II | Type II | Type II | Type II | Type II | Type II | Type II | |
AFCI | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | |
PID Recovery | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | |
General Data | |||||||||||
Operating Temperature Range (°C) | -30 ~ +60 | -30 ~ +60 | -30 ~ +60 | -30 ~ +60 | -30 ~ +60 | -30 ~ +60 | -30 ~ +60 | -30 ~ +60 | -30 ~ +60 | -30 ~ +60 | |
Relative Humidity | 0 ~ 100% | 0 ~ 100% | 0 ~ 100% | 0 ~ 100% | 0 ~ 100% | 0 ~ 100% | 0 ~ 100% | 0 ~ 100% | 0 ~ 100% | 0 ~ 100% | |
Max. Operating Altitude (m) | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | £4000 | £4000 | |
Cooling Method | Smart Fan Cooling | Fan Cooling | |||||||||
User Interface | LED, LCD (Optional), WiFi + APP | LED, WiFi + APP | LED, LCD (Optional), WiFi + APP |
LED, WiFi + APP | |||||||
Communication | RS485, WiFi or PLC (Optional) | RS485, WiFi, PLC (Optional) |
|||||||||
Weight (kg) | 59.0 | 64.0 | 60.0 | 65.0 | 65.0 | 65.0 | 60.0 | 65.0 | 70.0 | 70.0 | |
Dimension (W × H × D mm) | 586 × 788 × 264 | 586 × 788 × 267 | 586 × 788 × 264 |
586 × 788 × 267 | |||||||
Topology | Non-isolated | ||||||||||
Self-consumption at Night (W) | <1 | <1 | <1 | <1 | <1 | <1 | <1 | <1 | <1 | <1 | |
Ingress Protection Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | |
DC Connector | MC4 (4 ~ 6mm²) | - | - | - | - | - | - | - | MC4 (4 ~ 6mm²) |
||
*1: For Chile Max. AC Active Power (W): GW50KN-MT is 50000; GW60KN-MT is 60000; GW50KBF-MT is 50000; GW60KBF-MT is 60000; GW75KBF-MT is 75000; GW80KBF-MT is 80000; GW70KHV-MT is 70000; GW80KHV-MT is 80000; GW80K-MT is 80000. *2: For Chile Max. AC Apparent Power (VA): GW50KN-MT is 50000; GW60KN-MT is 60000; GW50KBF-MT is 50000; GW60KBF-MT is 60000; GW75KBF-MT is 75000; GW80KBF-MT is 80000; GW70KHV-MT is 70000; GW80KHV-MT is 80000; GW80K-MT is 80000. *: Please visit GoodWe website for the latest certificates. |
