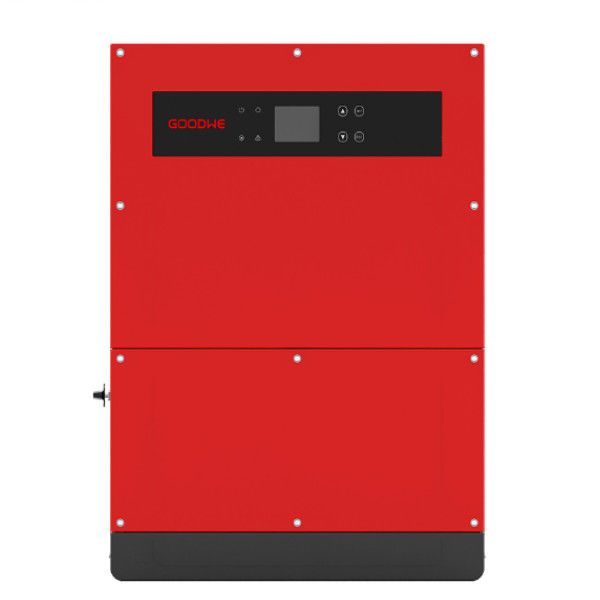

IP65 Goodwe 50kw Inverter On Grid 3 Phase LVMT GW50KLV-MT

Product Details

Place of Origin: China

Brand Name: Goodwe

Certification: SAA / CE / ROHS / ISO9001 / CCC

Model Number: GW50KLV-MT

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Price: negotiable

Packaging Details: carton package

Supply Ability: 1000units/week

Get Best Price
Contact Now
Specifications
Highlight:

IP65 Goodwe 50kw Inverter

,

50kw Inverter On Grid 3 Phase

,

LVMT GW50KLV-MT

Type:
DC/AC Inverters
Phase:
Three Phase
Inverter Efficiency:
98.8%
Input Voltage:
180-1500V
Output Frequency:
50/60Hz
Protection Degree:
IP65
Operating Altitude:
4000(>3000 Derating)
Operation Temperature Range:
-30~60℃
User Interface:
LED, Bluetooth+APP
PID Recovery:
Optional
Type:
DC/AC Inverters
Phase:
Three Phase
Inverter Efficiency:
98.8%
Input Voltage:
180-1500V
Output Frequency:
50/60Hz
Protection Degree:
IP65
Operating Altitude:
4000(>3000 Derating)
Operation Temperature Range:
-30~60℃
User Interface:
LED, Bluetooth+APP
PID Recovery:
Optional
Description
IP65 Goodwe 50kw Inverter On Grid 3 Phase LVMT GW50KLV-MT

LVMT GW50KLV-MT Goodwe On Grid Inverter 50kW Three phase on grid solar inverter commercial industrial solar inverter


IP65 Goodwe 50kw Inverter On Grid 3 Phase LVMT GW50KLV-MT 0LVMT Series
Technical Data GW30KLV-MT GW35KLV-MT GW50KLV-MT
Input
Max. Input Voltage (V) 800
MPPT Operating Voltage Range (V) 200 ~ 650
Start-up Voltage (V) 200
Nominal Input Voltage (V) 370
Max. Input Current per MPPT (A) 33 / 33 / 22 / 22 33 44
Max. Short Circuit Current per MPPT (A) 41.5 / 41.5 / 27.5 / 27.5 41.5 55
Number of MPP Trackers 4
Number of Strings per MPPT 3 / 3 / 2 / 2 3 4
Output
Nominal Output Power (W) 30000 36000 50000
Nominal Output Apparent Power (VA) 30000 36000 50000
Max. AC Active Power (W) 28800@208V;
30000@220V;
33000@240V;
34500@208V;
36000@220V;
39900@240V;
47300@208V;
50000@220V;
55000@240V;
Max. AC Apparent Power (VA) 33000 39900 55000
Nominal Output Voltage (V) 220, 3L / N / PE or 3L / PE
Nominal AC Grid Frequency (Hz) 50 / 60
Max. Output Current (A) 80.0 96.0 133.0
Power Factor ~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion <3%
Efficiency
Max. Efficiency 98.7% 98.8% 98.7%
European Efficiency 98.3% 98.5% 98.3%
Protection
PV String Current Monitoring Integrated
PV Insulation Resistance Detection Integrated
Residual Current Monitoring Integrated
PV Reverse Polarity Protection Integrated
Anti-islanding Protection Integrated
AC Overcurrent Protection Integrated
AC Short Circuit Protection Integrated
AC Overvoltage Protection Integrated
DC Switch Optional
DC Surge Protection Type II
AC Surge Protection Type II
AFCI Optional
PID Recovery Optional
General Data
Operating Temperature Range (ºC) -30 ~ +60
Relative Humidity 0 ~ 100%
Max. Operating Altitude (m) 4000
Cooling Method Fan Cooling
User Interface LED, LCD (Optional), WiFi + APP LED, LCD (Optional), WiFi + APP LED, WiFi + APP
Communication RS485, WiFi (Optional) RS485, WiFi (Optional) RS485, WiFi, PLC (Optional)
Weight (kg) 59.0 64.0 70.0
Dimension (W × H × D mm) 586 × 788 × 264 586 × 788 × 264 586 × 788 × 267
Topology Non-isolated
Self-consumption at Night (W) <1
Ingress Protection Rating IP65



IP65 Goodwe 50kw Inverter On Grid 3 Phase LVMT GW50KLV-MT 1
IP65 Goodwe 50kw Inverter On Grid 3 Phase LVMT GW50KLV-MT 2
IP65 Goodwe 50kw Inverter On Grid 3 Phase LVMT GW50KLV-MT 3
IP65 Goodwe 50kw Inverter On Grid 3 Phase LVMT GW50KLV-MT 4
IP65 Goodwe 50kw Inverter On Grid 3 Phase LVMT GW50KLV-MT 5
