SDT G2 GW25KT-DT 25kW Goodwe On Grid Inverter Marine Solar Inverter

Name: SDT G2 GW25KT-DT 25kW Goodwe On Grid Inverter Marine Solar Inverter
Brand: PVkingdom (Chongqing) New Energy Co., Ltd.
SKU: GW25KT-DT
Price: 0.12 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Goodwe

Certification: SAA / CE / ROHS / ISO9001 / CCC

Model Number: GW25KT-DT

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Price: negotiable

Packaging Details: carton package

Supply Ability: 1000units/week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      SDT G2 GW25KT-DT, 25kW Goodwe On Grid Inverter, Marine Solar Inverter


Type:	DC/AC Inverters	Phase:	Three Phase
Inverter Efficiency:	98.8%	Input Voltage:	180-1500V
Output Frequency:	50/60Hz	Protection Degree:	IP65
Operating Altitude:	4000(>3000 Derating)	Operation Temperature Range:	-30~60℃
User Interface:	LED, Bluetooth+APP	PID Recovery:	Optional

Type:	DC/AC Inverters
Phase:	Three Phase
Inverter Efficiency:	98.8%
Input Voltage:	180-1500V
Output Frequency:	50/60Hz
Protection Degree:	IP65
Operating Altitude:	4000(>3000 Derating)
Operation Temperature Range:	-30~60℃
User Interface:	LED, Bluetooth+APP
PID Recovery:	Optional

Description

SDT G2 GW25KT-DT 25kW Goodwe On Grid Inverter Marine Solar Inverter

SDT G2 GW25KT-DT 25kW Three phase on grid solar inverter Goodwe On Grid Inverter commercial & industrial solar inverter

SDT G2 Series
Technical Data	GW17KT-DT	GW20KT-DT	GW25KT-DT
Input
Max. Input Voltage (V)	1100	1100	1100
MPPT Operating Voltage Range (V)	200 ~ 950	200 ~ 950	200 ~ 950
Start-up Voltage (V)	180	180	180
Nominal Input Voltage (V)	620	620	620
Max. Input Current per MPPT (A)	25.0	25.0	37.5 / 25.0
Max. Short Circuit Current per MPPT (A)	31.2	31.2	46.8 / 31.2
Number of MPP Trackers	2	2	2
Number of Strings per MPPT	2	2	3 / 2
Output
Nominal Output Power (W)	17000	20000	25000
Nominal Output Apparent Power (VA)	17000	20000	25000
Max. AC Active Power (W)	19000	22000	27500
Max. AC Apparent Power (VA)	19000	22000	27500
Nominal Output Voltage (V)	400, 3L / N / PE	400, 3L / N / PE	400, 3L / N / PE
Output Voltage Range (V) (according to local standard)	180 ~ 270	180 ~ 270	180 ~ 270
Nominal AC Grid Frequency (Hz)	50 / 60	50 / 60	50 / 60
AC Grid Frequency Range (Hz)	45 ~ 55 / 55 ~ 65	45 ~ 55 / 55 ~ 65	45 ~ 55 / 55 ~ 65
Max. Output Current (A)	28.8	31.9	40.8
Power Factor	~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion	<3%	<3%	<3%
Efficiency
Max. Efficiency	98.4%	98.4%	98.4%
European Efficiency	97.7%	97.7%	97.7%
Protection
PV Insulation Resistance Detection	Integrated	Integrated	Integrated
Residual Current Monitoring	Integrated	Integrated	Integrated
PV Reverse Polarity Protection	Integrated	Integrated	Integrated
Anti-islanding Protection	Integrated	Integrated	Integrated
AC Overcurrent Protection	Integrated	Integrated	Integrated
AC Short Circuit Protection	Integrated	Integrated	Integrated
AC Overvoltage Protection	Integrated	Integrated	Integrated
DC Switch	Integrated	Integrated	Integrated
DC Surge Protection	Type III(Type II Optional)	Type III(Type II Optional)	Type III(Type II Optional)
AC Surge Protection	Type III	Type III	Type III
AFCI	Optional	Optional	Optional
General Data
Operating Temperature Range (°C)	-30 ~ +60	-30 ~ +60	-30 ~ +60
Relative Humidity	0 ~ 100%	0 ~ 100%	0 ~ 100%
Max. Operating Altitude (m)^*1	4000	4000	4000
Cooling Method	Smart Fan Cooling	Smart Fan Cooling	Smart Fan Cooling
User Interface	LCD, LED (Optional), WLAN + APP
Communication	WiFi, RS485 or LAN (Optional)
Communication Protocols	Modbus-RTU (SunSpec Compliant)
Weight (kg)	25.0	25.0	25.0
Dimension (W × H × D mm)	415 × 511 × 175	415 × 511 × 175	415 × 511 × 175
Topology	Non-isolated	Non-isolated	Non-isolated
Self-consumption at Night (W)	<1	<1	<1
Ingress Protection Rating	IP65	IP65	IP65
DC Connector	MC4 (4 ~ 6mm²)	MC4 (4 ~ 6mm²)	MC4 (4 ~ 6mm²)
AC Connector	AC Connector	AC Connector	AC Connector
1: For Australia, Max. Operating Altitude (m) is 3000. : Please visit GoodWe website for the latest certificates.

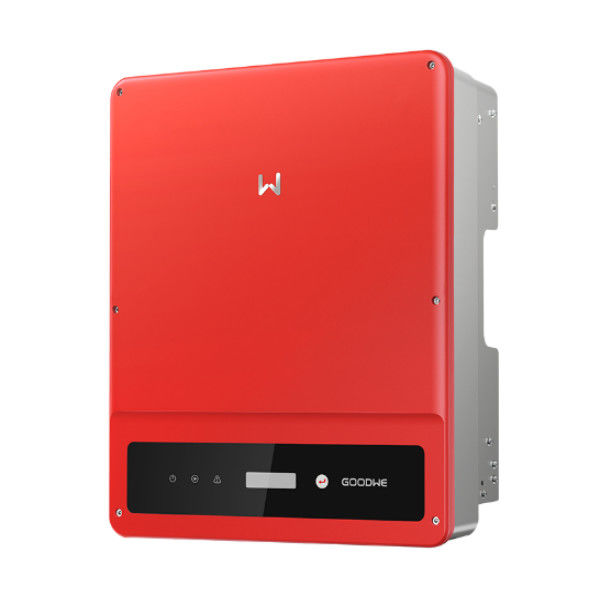

SDT G2 GW25KT-DT 25kW Goodwe On Grid Inverter Marine Solar Inverter 0

SDT G2 GW25KT-DT 25kW Goodwe On Grid Inverter Marine Solar Inverter 1

SDT G2 GW25KT-DT 25kW Goodwe On Grid Inverter Marine Solar Inverter 2

SDT G2 GW25KT-DT 25kW Goodwe On Grid Inverter Marine Solar Inverter 3

SDT G2 GW25KT-DT 25kW Goodwe On Grid Inverter Marine Solar Inverter 4
