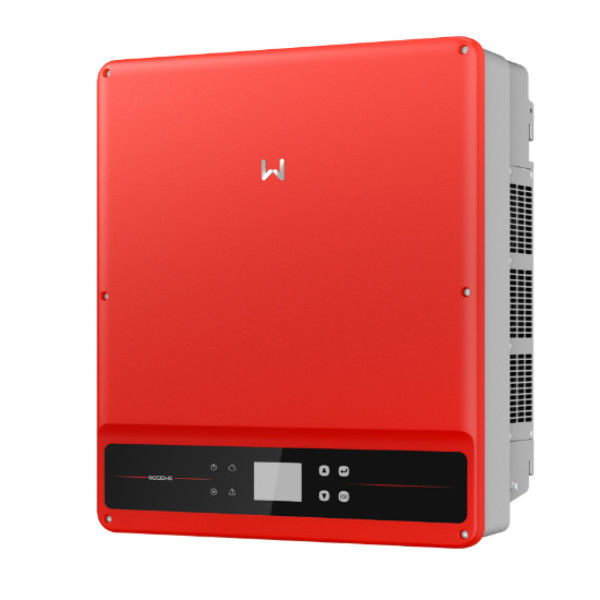

LVSMT Goodwe On Grid Inverter GW15KLV-MT 15kW Three Phase Solar Inverter

Name: LVSMT Goodwe On Grid Inverter GW15KLV-MT 15kW Three Phase Solar Inverter
Brand: PVkingdom (Chongqing) New Energy Co., Ltd.
SKU: GW15KLV-MT
Price: 0.12 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Goodwe

Certification: SAA / CE / ROHS / ISO9001 / CCC

Model Number: GW15KLV-MT

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Price: negotiable

Packaging Details: carton package

Supply Ability: 1000units/week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      LVSMT On Grid Inverter GW15KLV-MT 15kW, On Grid Inverter GW15KLV-MT 15kW, GW15KLV-MT 15kW On Grid Inverter


Type:	DC/AC Inverters	Phase:	Three Phase
Inverter Efficiency:	98.8%	Input Voltage:	180-1500V
Output Frequency:	50/60Hz	Protection Degree:	IP65
Operating Altitude:	4000(>3000 Derating)	Operation Temperature Range:	-30~60℃
User Interface:	LED, Bluetooth+APP	PID Recovery:	Optional

Type:	DC/AC Inverters
Phase:	Three Phase
Inverter Efficiency:	98.8%
Input Voltage:	180-1500V
Output Frequency:	50/60Hz
Protection Degree:	IP65
Operating Altitude:	4000(>3000 Derating)
Operation Temperature Range:	-30~60℃
User Interface:	LED, Bluetooth+APP
PID Recovery:	Optional

Description

LVSMT Goodwe On Grid Inverter GW15KLV-MT 15kW Three Phase Solar Inverter

LVSMT Goodwe On Grid Inverter GW15KLV-MT 15kW Three phase on grid solar inverter commercial & industrial solar inverter

Input
Max. Input Voltage (V)			800
MPPT Operating Voltage Range (V)			200 ~ 650
Start-up Voltage (V)			180
Nominal Input Voltage (V)			370
Max. Input Current per MPPT (A)			30
Max. Short Circuit Current per MPPT (A)			37.5
Number of MPP Trackers	3	3	3	5	6
Number of Strings per MPPT			2
Output
Nominal Output Power (kW)	12.0	15.0	20.7	30.0	35.0
Nominal Output Apparent Power (kVA)	12.0	15.0	20.7	30.0	35.0
Max. AC Active Power (kW)	11.3@208V, 12.0@220V, 13.1@240V	14.4@208V, 15.0@220V, 16.6@240V	19.6@208V, 20.7@220V, 22.6@240V	30.0	35.0
Max. AC Apparent Power (kVA)	13.1	16.6	22.6	30.0	35.0
Nominal Output Voltage (V)		220, 3L / N / PE or 3L / PE
Output Voltage Range (V)	150 ~ 300	150 ~ 300	150 ~ 300	176 ~ 242	176 ~ 242
Nominal AC Grid Frequency (Hz)			50 / 60
AC Grid Frequency Range (Hz)		47.5 ~ 51.5 / 57.0 ~ 61.8
Max. Output Current (A)	31.5	40.0	54.5	80.0	96.0
Power Factor		~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion			<3%
Efficiency
Max. Efficiency	98.7%	98.7%	98.8%	98.0%	98.0%
European Efficiency	98.4%	98.5%	98.5%	97.7%	97.7%
Protection
PV String Current Monitoring			Integrated
PV Insulation Resistance Detection			Integrated
Residual Current Monitoring			Integrated
PV Reverse Polarity Protection			Integrated
Anti-islanding Protection			Integrated
AC Overcurrent Protection			Integrated
AC Short Circuit Protection			Integrated
AC Overvoltage Protection			Integrated
DC Switch			Integrated
DC Surge Protection	Type III (Type II Optional)			Type II (Type I Optional)
AC Surge Protection	Type III (Type II Optional)			Type II
AFCI			Optional
Remote Shutdown			Optional
PID Recovery			Optional
General Data
Operating Temperature Range (°C)			-30 ~ +60
Relative Humidity			0 ~ 100%
Max. Operating Altitude (m)			3000
Cooling Method			Smart Fan Cooling
User Interface		LED, LCD (Optional), WLAN + APP
Communication		RS485, WiFi or 4G or PLC (Optional)^*1
Communication Protocols		Modbus-RTU (SunSpec Compliant)
Weight (kg)	40.0	40.0	40.0	55.0	55.0
Dimension (W × H × D mm)		480 × 590 × 200		520 × 660 × 220
Noise Emission (dB)	<60	<60	<60	<65	<65
Topology			Non-isolated
Self-consumption at Night (W)			<1
Ingress Protection Rating			IP65
DC Connector			MC4 (4 ~ 6mm²)
AC Connector	OT / DT Terminal (Max.25mm²)			OT / DT Terminal (Max.50mm²)

LVSMT Goodwe On Grid Inverter GW15KLV-MT 15kW Three Phase Solar Inverter 0

LVSMT Goodwe On Grid Inverter GW15KLV-MT 15kW Three Phase Solar Inverter 1

LVSMT Goodwe On Grid Inverter GW15KLV-MT 15kW Three Phase Solar Inverter 2

LVSMT Goodwe On Grid Inverter GW15KLV-MT 15kW Three Phase Solar Inverter 3

LVSMT Goodwe On Grid Inverter GW15KLV-MT 15kW Three Phase Solar Inverter 4
