GW3000-DNS-30 3kW Goodwe On Grid Inverter Single Phase For Household

Product Details

Place of Origin: China

Brand Name: Goodwe

Certification: SAA / CE / ROHS / ISO9001 / CCC

Model Number: GW3000-DNS-30

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Price: negotiable

Packaging Details: carton package

Supply Ability: 1000units/week

Get Best Price
Contact Now
Specifications
Highlight:

GW3000-DNS-30 3kW

,

3kW Goodwe On Grid Inverter

,

GW3000 Goodwe On Grid Inverter

Type:
DC/AC Inverters
Phase:
Single Phase
Inverter Efficiency:
98.8%
Input Voltage:
180-1500V
Output Frequency:
50/60Hz
Protection Degree:
IP65
Operating Altitude:
4000(>3000 Derating)
Operation Temperature Range:
-30~60℃
User Interface:
LED, Bluetooth+APP
PID Recovery:
Optional
Type:
DC/AC Inverters
Phase:
Single Phase
Inverter Efficiency:
98.8%
Input Voltage:
180-1500V
Output Frequency:
50/60Hz
Protection Degree:
IP65
Operating Altitude:
4000(>3000 Derating)
Operation Temperature Range:
-30~60℃
User Interface:
LED, Bluetooth+APP
PID Recovery:
Optional
Description
GW3000-DNS-30 3kW Goodwe On Grid Inverter Single Phase For Household

Goodwe GW3000-DNS-30 3kW single phase Goodwe On Grid Inverter on grid solar inverter residential solar inverter



Input
Max. Input Voltage (V) 600 600 600 600 600
MPPT Operating Voltage Range (V) 40 ~ 560 40 ~ 560 40 ~ 560 40 ~ 560 40 ~ 560
Start-up Voltage (V) 50 50 50 50 50
Nominal Input Voltage (V) 360 360 360 360 360
Max. Input Current per MPPT (A) 16 16 16 16 16
Max. Short Circuit Current per MPPT (A) 23 23 23 23 23
Number of MPP Trackers 2 2 2 2 2
Number of Strings per MPPT 1 1 1 1 1
Output
Nominal Output Power (W) 3000 3600 4200*1 5000 6000
Nominal Output Apparent Power (VA) 3000 3600 4200*1 5000 6000
Max. AC Active Power (W)*4 3300 3960*2 4620*1*2 5500 6600
Max. AC Apparent Power (VA)*4 3300 3960*2 4620*1*2 5500 6600
Nominal Output Voltage (V) 220 / 230 / 240 220 / 230 / 240 220 / 230 / 240 220 / 230 / 240 220 / 230 / 240
Output Voltage Range (V)     196 ~ 311
Nominal AC Grid Frequency (Hz) 50 / 60 50 / 60 50 / 60 50 / 60 50 / 60
AC Grid Frequency Range (Hz)     45 ~ 55 / 55 ~ 65
Max. Output Current (A) 14.4 17.3*2 20.1*2 24.0 28.8
Power Factor   ~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion <3% <3% <3% <3% <3%
Efficiency
Max. Efficiency 97.9% 97.9% 97.9% 97.9% 97.9%
European Efficiency 97.0% 97.0% 97.2% 97.3% 97.4%
Protection
PV String Current Monitoring Integrated Integrated Integrated Integrated Integrated
PV Insulation Resistance Detection Integrated Integrated Integrated Integrated Integrated
Residual Current Monitoring Integrated Integrated Integrated Integrated Integrated
PV Reverse Polarity Protection Integrated Integrated Integrated Integrated Integrated
Anti-islanding Protection Integrated Integrated Integrated Integrated Integrated
AC Overcurrent Protection Integrated Integrated Integrated Integrated Integrated
AC Short Circuit Protection Integrated Integrated Integrated Integrated Integrated
AC Overvoltage Protection Integrated Integrated Integrated Integrated Integrated
DC Switch Integrated Integrated Integrated Integrated Integrated
DC Surge Protection   Type III (Type II Optional)
AC Surge Protection   Type III (Type II Optional)
AFCI Optional Optional Optional Optional Optional
Emergency Power Off Optional Optional Optional Optional Optional
Remote Shutdown Optional Optional Optional Optional Optional
Power Supply at Night Optional Optional Optional Optional Optional
General Data
Operating Temperature Range (°C) -25 ~ +60 -25 ~ +60 -25 ~ +60 -25 ~ +60 -25 ~ +60
Relative Humidity 0 ~ 100% 0 ~ 100% 0 ~ 100% 0 ~ 100% 0 ~ 100%
Max. Operating Altitude (m)*3 4000 4000 4000 4000 4000
Cooling Method     Natural Convection
Display   LED, LCD (Optional), WLAN + APP
Communication WiFi, RS485 or LAN or 4G or DI (Ripple Control or DRM) (Optional)
Communication Protocols   Modbus-RTU (SunSpec Compliant)
Weight (kg) 12.8 12.8 12.8 12.8 13.4
Dimension (W × H × D mm) 350 × 410 × 143 350 × 410 × 143 350 × 410 × 143 350 × 410 × 143 350 × 410 × 143
Noise Emission (dB) <25 <25 <25 <25 <25
Topology Non-isolated Non-isolated Non-isolated Non-isolated Non-isolated
Self-consumption at Night (W) <1 <1 <1 <1 <1
Ingress Protection Rating IP66 IP66 IP66 IP66 IP66
DC Connector MC4 (4 ~ 6mm²) MC4 (4 ~ 6mm²) MC4 (4 ~ 6mm²) MC4 (4 ~ 6mm²) MC4 (4 ~ 6mm²)
AC Connector   Plug and play connector (Max. 6mm²)

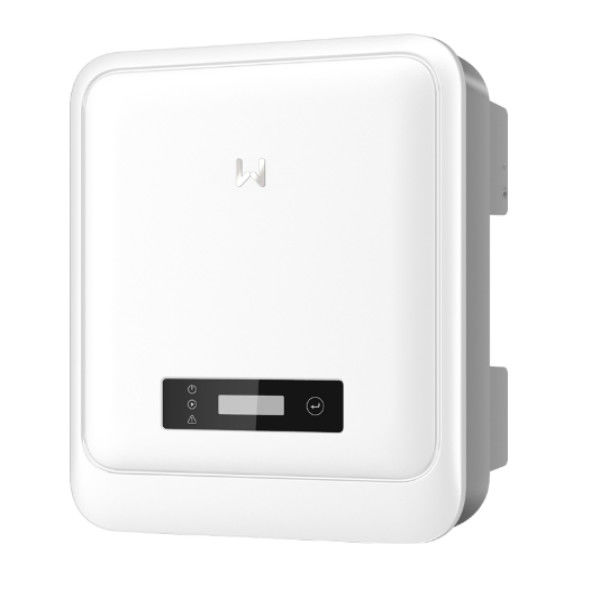

GW3000-DNS-30 3kW Goodwe On Grid Inverter Single Phase For Household 0

GW3000-DNS-30 3kW Goodwe On Grid Inverter Single Phase For Household 1

GW3000-DNS-30 3kW Goodwe On Grid Inverter Single Phase For Household 2

GW3000-DNS-30 3kW Goodwe On Grid Inverter Single Phase For Household 3

GW3000-DNS-30 3kW Goodwe On Grid Inverter Single Phase For Household 4
