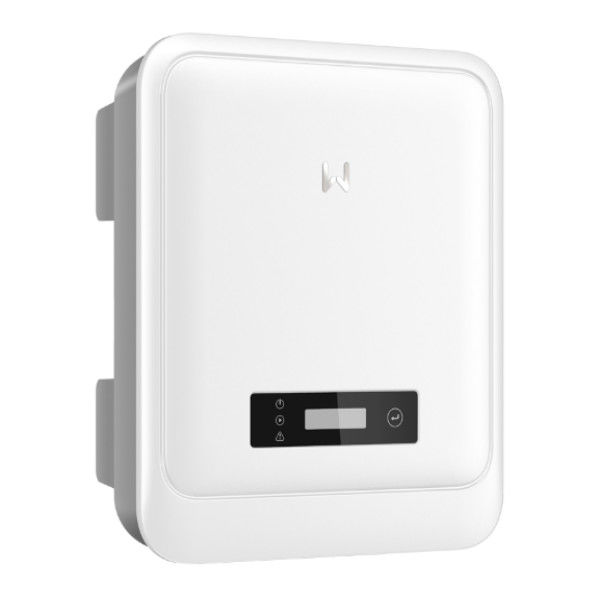

DNS G3 Goodwe On Grid Inverter GW5000-DNS-30 5kW One Phase

Name: DNS G3 Goodwe On Grid Inverter GW5000-DNS-30 5kW One Phase
Brand: PVkingdom (Chongqing) New Energy Co., Ltd.
SKU: GW5000-DNS-30
Price: 0.12 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Goodwe

Certification: SAA / CE / ROHS / ISO9001 / CCC

Model Number: GW5000-DNS-30

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Price: negotiable

Packaging Details: carton package

Supply Ability: 1000units/week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      DNS G3 Goodwe On Grid Inverter, GW5000-DNS-30 5kW, Goodwe On Grid Inverter GW5000


Type:	DC/AC Inverters	Phase:	Single Phase
Inverter Efficiency:	98.8%	Input Voltage:	180-1500V
Output Frequency:	50/60Hz	Protection Degree:	IP65
Operating Altitude:	4000(>3000 Derating)	Operation Temperature Range:	-30~60℃
User Interface:	LED, Bluetooth+APP	PID Recovery:	Optional

Type:	DC/AC Inverters
Phase:	Single Phase
Inverter Efficiency:	98.8%
Input Voltage:	180-1500V
Output Frequency:	50/60Hz
Protection Degree:	IP65
Operating Altitude:	4000(>3000 Derating)
Operation Temperature Range:	-30~60℃
User Interface:	LED, Bluetooth+APP
PID Recovery:	Optional

Description

DNS G3 Goodwe On Grid Inverter GW5000-DNS-30 5kW One Phase

DNS G3 series Goodwe On Grid Inverter GW5000-DNS-30 5kW single phase on grid solar inverter residential solar inverter

Input
Max. Input Voltage (V)	600	600	600	600	600
MPPT Operating Voltage Range (V)	40 ~ 560	40 ~ 560	40 ~ 560	40 ~ 560	40 ~ 560
Start-up Voltage (V)	50	50	50	50	50
Nominal Input Voltage (V)	360	360	360	360	360
Max. Input Current per MPPT (A)	16	16	16	16	16
Max. Short Circuit Current per MPPT (A)	23	23	23	23	23
Number of MPP Trackers	2	2	2	2	2
Number of Strings per MPPT	1	1	1	1	1
Output
Nominal Output Power (W)	3000	3600	4200^*1	5000	6000
Nominal Output Apparent Power (VA)	3000	3600	4200^*1	5000	6000
Max. AC Active Power (W)^*4	3300	3960^*2	₄₆₂₀12	5500	6600
Max. AC Apparent Power (VA)^*4	3300	3960^*2	₄₆₂₀12	5500	6600
Nominal Output Voltage (V)	220 / 230 / 240	220 / 230 / 240	220 / 230 / 240	220 / 230 / 240	220 / 230 / 240
Output Voltage Range (V)			196 ~ 311
Nominal AC Grid Frequency (Hz)	50 / 60	50 / 60	50 / 60	50 / 60	50 / 60
AC Grid Frequency Range (Hz)			45 ~ 55 / 55 ~ 65
Max. Output Current (A)	14.4	17.3^*2	20.1^*2	24.0	28.8
Power Factor		~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion	<3%	<3%	<3%	<3%	<3%
Efficiency
Max. Efficiency	97.9%	97.9%	97.9%	97.9%	97.9%
European Efficiency	97.0%	97.0%	97.2%	97.3%	97.4%
Protection
PV String Current Monitoring	Integrated	Integrated	Integrated	Integrated	Integrated
PV Insulation Resistance Detection	Integrated	Integrated	Integrated	Integrated	Integrated
Residual Current Monitoring	Integrated	Integrated	Integrated	Integrated	Integrated
PV Reverse Polarity Protection	Integrated	Integrated	Integrated	Integrated	Integrated
Anti-islanding Protection	Integrated	Integrated	Integrated	Integrated	Integrated
AC Overcurrent Protection	Integrated	Integrated	Integrated	Integrated	Integrated
AC Short Circuit Protection	Integrated	Integrated	Integrated	Integrated	Integrated
AC Overvoltage Protection	Integrated	Integrated	Integrated	Integrated	Integrated
DC Switch	Integrated	Integrated	Integrated	Integrated	Integrated
DC Surge Protection		Type III (Type II Optional)
AC Surge Protection		Type III (Type II Optional)
AFCI	Optional	Optional	Optional	Optional	Optional
Emergency Power Off	Optional	Optional	Optional	Optional	Optional
Remote Shutdown	Optional	Optional	Optional	Optional	Optional
Power Supply at Night	Optional	Optional	Optional	Optional	Optional
General Data
Operating Temperature Range (°C)	-25 ~ +60	-25 ~ +60	-25 ~ +60	-25 ~ +60	-25 ~ +60
Relative Humidity	0 ~ 100%	0 ~ 100%	0 ~ 100%	0 ~ 100%	0 ~ 100%
Max. Operating Altitude (m)^*3	4000	4000	4000	4000	4000
Cooling Method			Natural Convection
Display		LED, LCD (Optional), WLAN + APP
Communication	WiFi, RS485 or LAN or 4G or DI (Ripple Control or DRM) (Optional)
Communication Protocols		Modbus-RTU (SunSpec Compliant)
Weight (kg)	12.8	12.8	12.8	12.8	13.4
Dimension (W × H × D mm)	350 × 410 × 143	350 × 410 × 143	350 × 410 × 143	350 × 410 × 143	350 × 410 × 143
Noise Emission (dB)	<25	<25	<25	<25	<25
Topology	Non-isolated	Non-isolated	Non-isolated	Non-isolated	Non-isolated
Self-consumption at Night (W)	<1	<1	<1	<1	<1
Ingress Protection Rating	IP66	IP66	IP66	IP66	IP66
DC Connector	MC4 (4 ~ 6mm²)	MC4 (4 ~ 6mm²)	MC4 (4 ~ 6mm²)	MC4 (4 ~ 6mm²)	MC4 (4 ~ 6mm²)
AC Connector		Plug and play connector (Max. 6mm²)

DNS G3 Goodwe On Grid Inverter GW5000-DNS-30 5kW One Phase 0

DNS G3 Goodwe On Grid Inverter GW5000-DNS-30 5kW One Phase 1

DNS G3 Goodwe On Grid Inverter GW5000-DNS-30 5kW One Phase 2

DNS G3 Goodwe On Grid Inverter GW5000-DNS-30 5kW One Phase 3

DNS G3 Goodwe On Grid Inverter GW5000-DNS-30 5kW One Phase 4
