6000W Goodwe On Grid Inverter GW6000-SDT-20 6Kw Solar Inverter

Product Details

Place of Origin: China

Brand Name: Goodwe

Certification: SAA / CE / ROHS / ISO9001 / CCC

Model Number: GW6000-SDT-20

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Price: negotiable

Packaging Details: carton package

Supply Ability: 1000units/week

Get Best Price
Contact Now
Specifications
Highlight:

6000W Goodwe On Grid Inverter

,

GW6000-SDT-20

,

Goodwe On Grid Inverter GW6000

Type:
DC/AC Inverters
Phase:
Three Phase
Inverter Efficiency:
98.8%
Input Voltage:
180-1500V
Output Frequency:
50/60Hz
Protection Degree:
IP65
Operating Altitude:
4000(>3000 Derating)
Operation Temperature Range:
-30~60℃
User Interface:
LED, Bluetooth+APP
PID Recovery:
Optional
Type:
DC/AC Inverters
Phase:
Three Phase
Inverter Efficiency:
98.8%
Input Voltage:
180-1500V
Output Frequency:
50/60Hz
Protection Degree:
IP65
Operating Altitude:
4000(>3000 Derating)
Operation Temperature Range:
-30~60℃
User Interface:
LED, Bluetooth+APP
PID Recovery:
Optional
Description
6000W Goodwe On Grid Inverter GW6000-SDT-20 6Kw Solar Inverter

Goodwe On Grid Inverter GW6000-SDT-20 6kW three phase on grid solar inverter residential solar inverter



Input
Max.Input Voltage (V) 1000 1000 1000 1100 1100 1100 800 1100 1100 1100
MPPT Operating Voltage Range (V) 180 ~ 850 180 ~ 850 180 ~ 850 140 ~ 950 140 ~ 950 140 ~ 950 140 ~ 650 140 ~ 950 140 ~ 950 140 ~ 950
Start-up Voltage (V) 180 180 180 180 180 180 180 180 180 180
Nominal Input Voltage (V) 620 620 620 620 620 620 370 620 620 620
Max. Input Current per MPPT (A) 16 16 16 15 15 30 30 30 30 30
Max. Short Circuit Current per MPPT (A) 20.0 20.0 20.0 18.7 18.7 37.5 37.5 37.5 37.5 37.5
Number of MPP trackers 2 2 2 2 2 2 2 2 2 2
Number of Strings per MPPT 1 1 1 1 1 2 2 2 2 2
Output
Nominal Output Power (W) 4000 5000 6000 8000 10000 12000 12000 15000 17000 20000
Nominal Output Apparent Power (VA) 4000 5000 6000 8000 10000 12000 12000 15000 17000 20000
Max. AC Active Power (W)*1 4400 5500 6600 8800 11000 13200 12000 16500 18700 22000
Max. AC Apparent Power (VA)*1 4400 5500 6600 8800 11000 13200 12000 16500 18700 22000
Nominal Output Voltage (V) 400, 3L / N / PE   380 / 400 / 415, 3L / N / PE 220 / 127,
3L / N / PE
380 / 400 / 415, 3L / N / PE
Output Voltage Range (V) (according to local standard) 180 ~ 270 180 ~ 270 180 ~ 270 180 ~ 270 180 ~ 270 180 ~ 270 180 ~ 270 180 ~ 270 180 ~ 270 180 ~ 270
Nominal AC Grid Frequency (Hz) 50 / 60 50 / 60 50 / 60 50 / 60 50 / 60 50 / 60 60 50 / 60 50 / 60 50 / 60
AC Grid Frequency Range (Hz)         45 ~ 55 / 55 ~ 65
Max. Output Current (A) 6.4 8.0 9.6 12.8 16.0 19.1 31.9 24.0 27.1 32.0
Power Factor       ~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion <3% <3% <3% <3% <3% <3% <3% <3% <3% <3%
Efficiency
Max. Efficiency 98.2% 98.2% 98.2% 98.3% 98.3% 98.4% 96.9% 98.4% 98.4% 98.4%
European Efficiency 97.6% 97.6% 97.6% 97.6% 97.6% 97.8% 96.4% 97.8% 97.8% 97.8%
Protection
PV Insulation Resistance Detection Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated
Residual Current Monitoring Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated
PV Reverse Polarity Protection Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated
Anti-islanding Protection Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated
AC Overcurrent Protection Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated
AC Short Circuit Protection Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated
AC Overvoltage Protection Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated
DC Switch Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated
DC Surge Protection         Type III (Type II Optional)
AC Surge Protection   Tpye III       Type III (Type II Optional)
AFCI Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional
Emergency Power Off Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional
Remote Shutdown Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional
General Data
Operating Temperature Range (°C) -30 ~ +60 -30 ~ +60 -30 ~ +60 -30 ~ +60 -30 ~ +60 -30 ~ +60 -30 ~ +60 -30 ~ +60 -30 ~ +60 -30 ~ +60
Relative Humidity 0 ~ 100% 0 ~ 100% 0 ~ 100% 0 ~ 100% 0 ~ 100% 0 ~ 100% 0 ~ 100% 0 ~ 100% 0 ~ 100% 0 ~ 100%
Max. Operating Altitude (m)*2 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000
Cooling Method   Natural Convection     Smart Fan Cooling
Display       LED, LCD (Optional), WLAN + APP
Communication       WiFi, RS485 or LAN or 4G (Optional)
Weight (kg) 15.0 15.0 15.0 20.5 20.5 23.5 26.0 26.0 26.0 26.0
Dimension (W × H × D mm) 354 × 433 × 147 415 × 511 × 175   415 × 511 × 198
Noise Emission (dB) <34 <34 <34 <25 <25 <50 <50 <50 <50 <50
Topology         Non-isolated
Self-consumption at Night (W) <1 <1 <1 <1 <1 <1 <1 <1 <1 <1
Ingress Protection Rating IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65
DC Connector     MC4 (4 ~ 6mm²)
AC Connector Plug and play connector     OT Terminal
*1: For Chile Max. AC Active Power (W) & Max. Output Apparent Power (VA): GW4000-SDT-20 is 4000, GW5000-SDT-20 is 5000, GW6000-SDT-20 is 6000, GW8000-SDT-20 is 8000, GW10K-SDT-20 is 10000, GW12K-SDT-20 is 12000, GW12KLV-SDT-20 is 12000, GW15K-SDT-20 is 15000, GW17K-SDT-20 is 17000, GW20K-SDT-20 is 20000.
*2: For Australia, Max. Operating Altitude (m) is 3000.
*: Please visit GoodWe website for the latest certificates.
*: All pictures shown are for reference only. Actual appearance may vary.

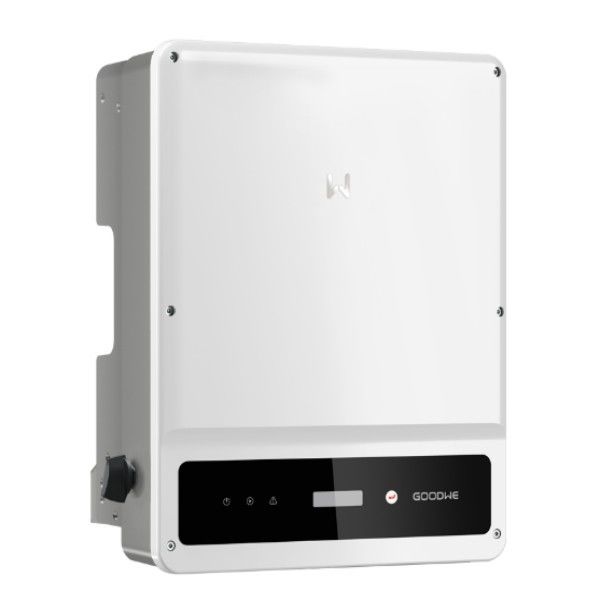

6000W Goodwe On Grid Inverter GW6000-SDT-20 6Kw Solar Inverter 0
