Product Details
Place of Origin: China
Brand Name: Goodwe
Certification: SAA / CE / ROHS / ISO9001 / CCC
Model Number: GW6000TDS
Payment & Shipping Terms
Minimum Order Quantity: 10 units
Price: negotiable
Packaging Details: carton package
Supply Ability: 1000units/week
Type: |
DC/AC Inverters |
Phase: |
Single Phase |
Inverter Efficiency: |
98.3% |
Input Voltage: |
180-1500V |
Output Frequency: |
50/60Hz |
Protection Degree: |
IP65 |
Operating Altitude: |
4000(>3000 Derating) |
Operation Temperature Range: |
-30~60℃ |
User Interface: |
LED, Bluetooth+APP |
PID Recovery: |
Optional |
Type: |
DC/AC Inverters |
Phase: |
Single Phase |
Inverter Efficiency: |
98.3% |
Input Voltage: |
180-1500V |
Output Frequency: |
50/60Hz |
Protection Degree: |
IP65 |
Operating Altitude: |
4000(>3000 Derating) |
Operation Temperature Range: |
-30~60℃ |
User Interface: |
LED, Bluetooth+APP |
PID Recovery: |
Optional |

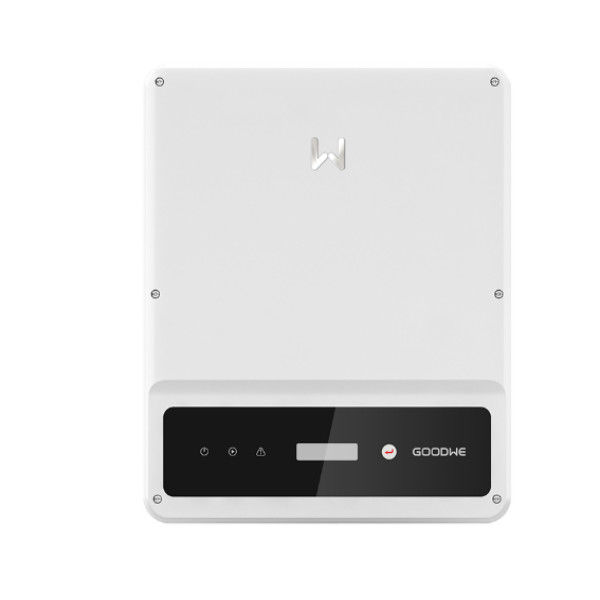

GW6000TDS 6kW On Grid Solar Inverter Goodwe On Grid Inverter single phase on grid solar inverter commercial use
| DNS Series | |||||||||
| Technical Data | GW3000D -NS |
GW3600D -NS |
GW4200D -NS |
GW5000D -NS |
GW6000D -NS |
GW3000T -DS |
GW3600T -DS |
GW4200T -DS |
GW5000T -DS |
| Input | |||||||||
| Max. Input Voltage (V) | 600 | ||||||||
| MPPT Operating Voltage Range (V) | 80 ~ 550 | ||||||||
| Start-up Voltage (V) | 80 | ||||||||
| Nominal Input Voltage (V) | 360 | ||||||||
| Max. Input Current per MPPT (A) | 11 | 11 | 11 | 11 | 11 | 13 | 13 | 13 | 13 |
| Max. Short Circuit Current per MPPT (A) | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 16.3 | 16.3 | 16.3 | 16.3 |
| Number of MPP Trackers | 2 | ||||||||
| Number of Strings per MPPT | 1 | ||||||||
| Output | |||||||||
| Nominal Output Power (W)*1*2 | 3000 | 3680 | 4200 | 5000 | 6000 | 3000 | 3680 | 4200 | 5000 |
| Nominal Output Apparent Power (VA)*3 | 3000 | 3680 | 4200 | 5000 | 6000 | 3000 | 3680 | 4200 | 5000 |
| Max. AC Active Power (W)*5 | 3000 | 3680 | 4200 | 5000 | 6000 | 3000 | 3680 | 4200 | 5000 |
| Max. AC Apparent Power (VA)*5 | 3000 | 3680 | 4200 | 5000 | 6000 | 3000 | 3680 | 4200 | 5000 |
| Nominal Output Voltage (V) | 220 / 230 | ||||||||
| Nominal AC Grid Frequency (Hz) | 50 / 60 | ||||||||
| Max. Output Current (A) | 13.6 | 16.0 | 19.0 | 22.8 | 27.3 | 13.6 | 16.0 | 19.0 | 22.8 |
| Power Factor | ~1 (Adjustable from 0.8 leading to 0.8 lagging) | ||||||||
| Max. Total Harmonic Distortion | <3% | ||||||||
| Efficiency | |||||||||
| Max. Efficiency | 97.8% | ||||||||
| European Efficiency | 97.5% | ||||||||
| Protection | |||||||||
| PV String Current Monitoring | - | - | - | - | - | Integrated | |||
| PV Insulation Resistance Detection | Integrated | ||||||||
| Residual Current Monitoring | Integrated | ||||||||
| PV Reverse Polarity Protection | Integrated | ||||||||
| Anti-islanding Protection | Integrated | ||||||||
| AC Overcurrent Protection | Integrated | ||||||||
| AC Short Circuit Protection | Integrated | ||||||||
| AC Overvoltage Protection | Integrated | ||||||||
| DC Switch | Optional | ||||||||
| DC Surge Protection | Type III | Type III (Type II Optional) | |||||||
| AC Surge Protection | Type III | ||||||||
| AFCI | - | - | - | - | - | Optional | |||
| Emergency Power Off | Optional | ||||||||
| Remote Shutdown | Optional | ||||||||
| General Data | |||||||||
| Operating Temperature Range (ºC) | -25 ~ +60 | ||||||||
| Relative Humidity | 0 ~ 100% | ||||||||
| Max. Operating Altitude (m)*4 | 4000 | ||||||||
| Cooling Method | Natural Convection | ||||||||
| User Interface | LED, LCD, WLAN + APP | ||||||||
| Communication | WiFi, RS485 or 4G or 2G or LAN (Optional) | ||||||||
| Weight (kg) | 13.0 | 13.0 | 13.0 | 13.0 | 13.5 | 13.0 | 13.0 | 13.0 | 13.0 |
| Dimension (W × H × D mm) | 354 × 433 × 147 | ||||||||
| Noise Emission (dB) | <25 | <25 | <25 | <25 | <50 | <25 | <25 | <25 | <25 |
| Topology | Non-isolated | ||||||||
| Self-consumption at Night (W) | <1 | ||||||||
| Ingress Protection Rating | IP65 | ||||||||
| DC Connector | MC4 | ||||||||
| AC Connector | Plug and play connector | ||||||||
| *4: For Australia, Max. Operating Altitude (m) is 3000. *5: For Chile Max. AC Active Power (W) & Max. Output Apparent Power(VA): GW3000T-DS is 3000, GW3600T-DS is 3600, GW4200T-DS is 4200, GW5000T-DS is 5000, GW6000T-DS is 6000. *: Please visit GoodWe website for the latest certificates. |
|||||||||
