Product Details
Place of Origin: China
Brand Name: Goodwe
Certification: SAA / CE / ROHS / ISO9001 / CCC
Model Number: GW5000N-EH
Payment & Shipping Terms
Minimum Order Quantity: 10 units
Price: negotiable
Packaging Details: carton package
Supply Ability: 1000units/week
Type: |
DC/AC Inverters |
Phase: |
Single Phase |
Inverter Efficiency: |
98.3% |
Input Voltage: |
180-1500V |
Output Frequency: |
50/60Hz |
Protection Degree: |
IP65 |
Operating Altitude: |
4000(>3000 Derating) |
Operation Temperature Range: |
-30~60℃ |
User Interface: |
LED, Bluetooth+APP |
PID Recovery: |
Optional |
Type: |
DC/AC Inverters |
Phase: |
Single Phase |
Inverter Efficiency: |
98.3% |
Input Voltage: |
180-1500V |
Output Frequency: |
50/60Hz |
Protection Degree: |
IP65 |
Operating Altitude: |
4000(>3000 Derating) |
Operation Temperature Range: |
-30~60℃ |
User Interface: |
LED, Bluetooth+APP |
PID Recovery: |
Optional |

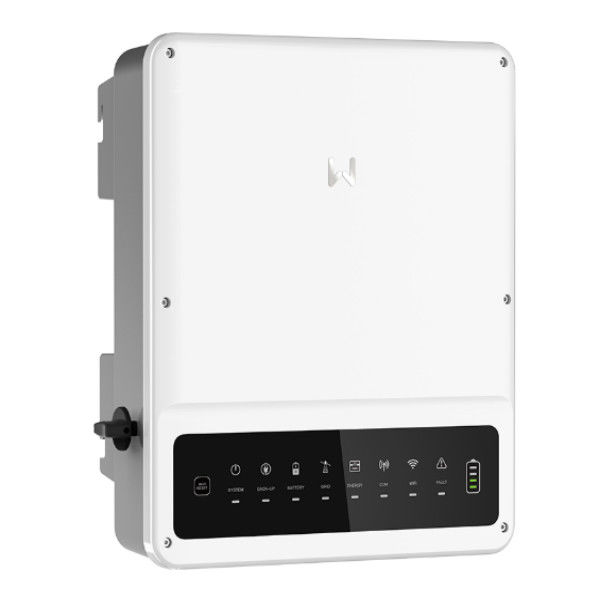

GW5000N-EH 5kW Hybrid Solar Inverter Goodwe Hybrid Inverter single phase hybrid solar inverter energy storage inverter
| Battery Input Data | |||
| Battery Type | Li-Ion | ||
| Nominal Battery Voltage (V) | 350 | ||
| Battery Voltage Range (V) | 85 ~ 460 | ||
| Start-up Voltage (V) | 85 | ||
| Number of Battery Input | 1 | ||
| Max. Continuous Charging Current (A) | 25 | ||
| Max. Continuous Discharging Current (A) | 25 | ||
| Max. Charging Power (W) | 6000 | ||
| Max. Discharging Power (W) | 3600 | 5000 | 6000 |
| PV String Input Data | |||
| Max. Input Power (W) | 5400 | 7500 | 9000 |
| Max. Input Voltage (V) | 580 | ||
| MPPT Operating Voltage Range (V) | 100 ~ 550 | ||
| Start-up Voltage (V) | 85 | ||
| Nominal Input Voltage (V) | 380 | ||
| Max. Input Current per MPPT (A) | 16 | ||
| Max. Short Circuit Current per MPPT (A) | 21.2 | ||
| Number of MPP Trackers | 2 | ||
| Number of Strings per MPPT | 1 | ||
| AC Output Data (On-grid) | |||
| Nominal Output Power (W) | 3600 | 5000 | 6000 |
| Nominal Apparent Power Output to Utility Grid (VA)*2 | 3600 | 5000 | 6000 |
| Max. Apparent Power Output to Utility Grid (VA)*2 | 3600 / 3960*1 | 5000 / 5500*1 | 6000 / 6600*1 |
| Max. Apparent Power from Utility Grid (VA) | 7200 (Charging 3.6kW, Backup Output 3.6kW) |
10000 (Charging 5kW, Backup Output 5kW) |
12000 (Charging 6kW, Backup Output 6kW) |
| Nominal Output Voltage (V) | 230 / 220*5 | ||
| Nominal AC Grid Frequency (Hz) | 50 / 60 | ||
| Max. AC Current Output to Utility Grid (A) | 16 / 18*1 | 21.7 / 24*1 | 26.1 / 28.7*1 / 27.3*6 |
| Max. AC Current From Utility Grid (A) | 32 | 43.4 | 52.2 |
| Power Factor | ~1 (Adjustable from 0.8 leading to 0.8 lagging) | ||
| Max. Total Harmonic Distortion | <3% | ||
| AC Output Data (Back-up) | |||
| Back-up Nominal Apparent Power (VA) | 3600 | 5000 | 6000 |
| Max. Output Apparent Power without Grid (VA) | 3600 (4320@60sec) | 5000 (6000@60sec) | 6000 (7200@60sec) |
| Max. Output Apparent Power with Grid (VA) | 3600 | 5000 | 6000 |
| Max. Output Current (A) | 15.7 | 21.7 | 26.1 |
| Nominal Output Voltage (V) | 230 (±2%) | ||
| Nominal Output Frequency (Hz) | 50 / 60 (±0.2%) | ||
| Output THDv (@Linear Load) | <3% | ||
| Efficiency | |||
| Max. Efficiency | 97.6% | ||
| European Efficiency | 97.0% | ||
| Max. Battery to AC Efficiency | 96.6% | ||
| MPPT Efficiency | 99.9% | ||
| Protection | |||
| PV String Current Monitoring | Integrated | ||
| PV Insulation Resistance Detection | Integrated | ||
| Residual Current Monitoring | Integrated | ||
| PV Reverse Polarity Protection | Integrated | ||
| Battery Reverse Polarity Protection | Integrated | ||
| Anti-islanding Protection | Integrated | ||
| AC Overcurrent Protection | Integrated | ||
| AC Short Circuit Protection | Integrated | ||
| AC Overvoltage Protection | Integrated | ||
| DC Switch | Integrated | ||
| DC Surge Protection | Type II | ||
| AC Surge protection | Type III | ||
| Remote Shutdown | Integrated | ||
| General Data | |||
| Operating Temperature Range (°C) | -25 ~ +60 | ||
| Relative Humidity | 0 ~ 95% | ||
| Max. Operating Altitude (m) | 3000*7 | ||
| Cooling Method | Natural Convection | ||
| User Interface | LED, APP | ||
| Communication with BMS*3 | RS485, CAN | ||
| Communication with Meter | RS485 | ||
| Communication with Portal | WiFi / Ethernet (Optional) | ||
| Weight (kg) | 17 | ||
| Dimension (W × H × D mm) | 354 × 433 × 147 | ||
| Topology | Non-isolated | ||
| Self-consumption at Night (W)*4 | <10 | ||
| Ingress Protection Rating | IP65 | ||
| Mounting Method | Wall Mounted | ||
