Product Details
Place of Origin: China
Brand Name: Goodwe
Certification: SAA / CE / ROHS / ISO9001 / CCC
Model Number: GW5000-SBP-20
Payment & Shipping Terms
Minimum Order Quantity: 10 units
Price: negotiable
Packaging Details: carton package
Supply Ability: 1000units/week
Type: |
DC/AC Inverters |
Phase: |
Single Phase |
Inverter Efficiency: |
98.3% |
Input Voltage: |
180-1500V |
Output Frequency: |
50/60Hz |
Protection Degree: |
IP65 |
Operating Altitude: |
4000(>3000 Derating) |
Operation Temperature Range: |
-30~60℃ |
User Interface: |
LED, Bluetooth+APP |
PID Recovery: |
Optional |
Type: |
DC/AC Inverters |
Phase: |
Single Phase |
Inverter Efficiency: |
98.3% |
Input Voltage: |
180-1500V |
Output Frequency: |
50/60Hz |
Protection Degree: |
IP65 |
Operating Altitude: |
4000(>3000 Derating) |
Operation Temperature Range: |
-30~60℃ |
User Interface: |
LED, Bluetooth+APP |
PID Recovery: |
Optional |

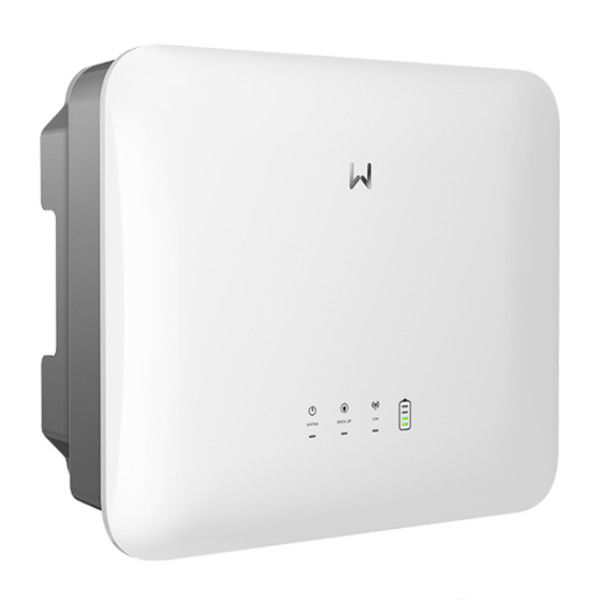

SBP G2 Series GW5000-SBP-20 Hybrid Solar Inverter Goodwe Hybrid Inverter 5kW single phase hybrid solar energy storage
| Battery Input Data | |||
| Battery Type*1 | Li-Ion | ||
| Nominal Battery Voltage (V) | 48 | ||
| Battery Voltage Range (V) | 40 ~ 60 | ||
| Start-up Voltage (V) | 40 | ||
| Number of Battery Input | 1 | ||
| Max. Continuous Charging Current (A)*1 | 75 | 120 | 120 |
| Max. Continuous Discharging Current (A)*1 | 75 | 120 | 120 |
| Max. Charging Power (W)*1 | 3600 | 5000 | 6000 |
| Max. Discharging Power (W) | 3900 | 5300 | 6300 |
| AC Output Data (On-grid) | |||
| Nominal Output Power (W) | 3680 | 5000 | 6000 |
| Nominal Apparent Power Output to Utility Grid (VA) | 3680 | 5000*2 | 6000*2 |
| Max. Apparent Power Output to Utility Grid (VA) | 3680 | 5000*2 | 6000*2 |
| Max. Apparent Power from Utility Grid (VA) | 7360 | 10000 | 10000 |
| Nominal Output Voltage (V) | 220 / 230 / 240 | ||
| Nominal AC Grid Frequency (Hz) | 50 / 60 | ||
| Max. AC Current Output to Utility Grid (A) | 16.7 | 22.7 | 27.3 |
| Max. AC Current From Utility Grid (A) | 33.5 | 43.5 | 43.5 |
| Power Factor | ~1 (Adjustable from 0.8 leading to 0.8 lagging) | ||
| Max. Total Harmonic Distortion | <3% | ||
| AC Output Data (Back-up) | |||
| Back-up Nominal Apparent Power (VA) | 3680 | 5000 | 6000 |
| Max. Output Apparent Power without Grid (VA) | 3680 (7360@10sec) | 5000 (10000@10sec) | 6000 (10000@10sec) |
| Max. Output Apparent Power with Grid (VA) | 3680 | 5000 | 6000 |
| Max. Output Current (A) | 16.7 | 22.7 | 27.3 |
| Nominal Output Voltage (V) | 220 / 230 / 240 | ||
| Nominal Output Frequency (Hz) | 50 / 60 | ||
| Output THDv (@Linear Load) | <3% | ||
| Efficiency | |||
| Max. Battery to AC Efficiency | 95.5% | ||
| Protection | |||
| Residual Current Monitoring | Integrated | ||
| Anti-islanding Protection | Integrated | ||
| AC Overcurrent Protection | Integrated | ||
| AC Short Circuit Protection | Integrated | ||
| AC Overvoltage Protection | Integrated | ||
| AC Surge Protection | Type III | ||
| Remote Shutdown | Integrated | ||
| General Data | |||
| Operating Temperature Range (°C) | -25 ~ +60 | ||
| Relative Humidity | 0 ~ 95% | ||
| Max. Operating Altitude (m) | 3000 (>2000 derating) | ||
| Cooling Method | Natural Convection | ||
| User Interface | LED, WLAN + APP | ||
| Communication with BMS | CAN | ||
| Communication with Meter | RS485 | ||
| Communication with Portal | WiFi / WiFi + LAN / 4G | ||
| Weight (kg) | 19.2 | 19.5 | 19.5 |
| Dimension (W × H × D mm) | 505.9 × 434.9 × 154.8 | ||
| Topology | Isolated | ||
| Self-consumption at Night (W) | <10 | ||
| Ingress Protection Rating | IP65 | ||
| Mounting Method | Wall Mounted | ||
