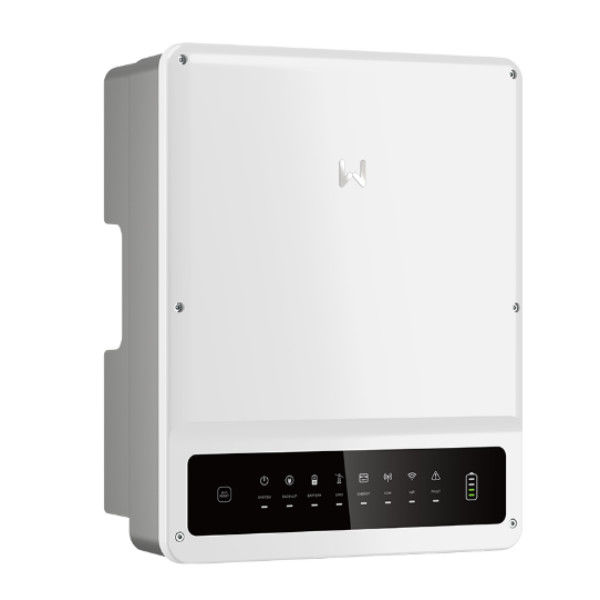

Goodwe ET Series GW20K-ET Hybrid Solar Inverter 20kW 3 Phase

Name: Goodwe ET Series GW20K-ET Hybrid Solar Inverter 20kW 3 Phase
Brand: PVkingdom (Chongqing) New Energy Co., Ltd.
SKU: GW20K-ET
Price: 0.12 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Goodwe

Certification: SAA / CE / ROHS / ISO9001 / CCC

Model Number: GW20K-ET

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Price: negotiable

Packaging Details: carton package

Supply Ability: 1000units/week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Goodwe ET Series GW20K-ET, GW20K-ET Hybrid Solar Inverter, 20kW 3 Phase GW20K-ET


Type:	DC/AC Inverters	Phase:	Single Phase
Inverter Efficiency:	98.3%	Input Voltage:	180-1500V
Output Frequency:	50/60Hz	Protection Degree:	IP65
Operating Altitude:	4000(>3000 Derating)	Operation Temperature Range:	-30~60℃
User Interface:	LED, Bluetooth+APP	PID Recovery:	Optional

Type:	DC/AC Inverters
Phase:	Single Phase
Inverter Efficiency:	98.3%
Input Voltage:	180-1500V
Output Frequency:	50/60Hz
Protection Degree:	IP65
Operating Altitude:	4000(>3000 Derating)
Operation Temperature Range:	-30~60℃
User Interface:	LED, Bluetooth+APP
PID Recovery:	Optional

Description

Goodwe ET Series GW20K-ET Hybrid Solar Inverter 20kW 3 Phase

Goodwe ET Series GW20K-ET Goodwe Hybrid Inverter Hybrid Solar Inverter 20kW three phase hybrid inverter commercial use

Battery Input Data
Battery Type				Li-Ion
Nominal Battery Voltage (V)				500
Battery voltage range (V)				200 ~ 800
Start-up Voltage (V)				180
Number of Battery Input	1		1	2	2	2
Max. Continuous Charging Current (A)	50		50	50 × 2	50 × 2	50 × 2
Max. Continuous Discharging Current (A)	50		50	50 × 2	50 × 2	50 × 2
Max. Charging Power (W)	15000		20000	25000	30000	30000
Max. Discharging Power (W)	15000		20000	25000	30000	30000
PV String Input Data
Max. Input Power (W)^*1	22500		30000	37500	45000	45000
Max. Input Voltage (V)^*2				1000
MPPT Operating Voltage Range (V)				200 ~ 850
Start-up Voltage (V)				200
Nominal Input Voltage (V)				620
Max. Input Current per MPPT (A)				30
Max. Short Circuit Current per MPPT (A)				38
Number of MPP Trackers	2		2	3	3	3
Number of Strings per MPPT	2 / 2		2 / 2	2 / 2 / 2	2 / 2 / 2	2 / 2 / 2
AC Output Data (On-grid)
Nominal Output Power (W)	15000		20000	25000	29900	30000
Nominal Apparent Power Output to Utility Grid (VA)	15000		20000	25000	29900	30000
Max. Apparent Power Output to Utility Grid (VA)	16500		22000	27500	29900	33000
Max. Apparent Power from Utility Grid (VA)	22500		30000	33000	33000	33000
Nominal Output Voltage (V)				380 / 400, 3L / N / PE
Nominal AC Grid Frequency (Hz)				50 / 60
Max. AC Current Output to Utility Grid (A)^*7	25.0		33.3	41.7	49.8	50.0
Max. AC Current From Utility Grid (A)	34.0		45.0	50.0	50.0	50.0
Power Factor			~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion				<3%
AC Output Data (Back-up)
Back-up Nominal Apparent Power (VA)	15000		20000	25000	29900	30000
Max. Output Apparent Power without Grid (VA)^*4	15000 (18000@60s, 24000@3s)		20000 (24000@60s, 32000@3s)	25000 (30000@60s)	30000 (36000@60s)	30000 (36000@60s)
Max. Output Apparent Power with Grid (VA)^*3	15000		20000	25000	29900	30000
Max. Output Current (A)	22.7 (27.3@60s, 36.4@3s)		30.3 (36.4@60s, 48.5@3s)	37.9 (45.5@60s)	45.5 (54.5@60s)	45.5 (54.5@60s)
Nominal Output Voltage (V)				380 / 400
Nominal Output Freqency (Hz)				50 / 60
Output THDv (@Linear Load)				<3%
Efficiency
Max. Efficiency				98.0%
European Efficiency				97.5%
Max. Battery to AC Efficiency				97.5%
MPPT Efficiency				99.9%
Protection
PV String Current Monitoring				Integrated
PV Insulation Resistance Detection				Integrated
Residual Current Monitoring				Integrated
PV Reverse Polarity Protection				Integrated
Battery Reverse Polarity Protection				Integrated
Anti-islanding Protection				Integrated
AC Overcurrent Protection				Integrated
AC Short Circuit Protection				Integrated
AC Overvoltage Protection				Integrated
DC Switch^*5				Integrated
DC Surge Protection				Type II
AC Surge Protection				Type III
AFCI				Optional
Rapid Shutdown				Optional
Remote Shutdown				Integrated
General Data
Operating Temperature Range (°C)				-35 ~ +60
Relative Humidity				0 ~ 95%
Max. Operating Altitude (m)				4000
Cooling Method				Smart Fan Cooling
User Interface				LED, WLAN + APP
Communication with BMS				RS485 / CAN
Communication with Meter				RS485
Communication with Portal				WiFi / 4G
Weight (kg)	48		48	54	54	54
Dimension (W × H × D mm)				520 × 660 × 220
Noise Emission (dB)	<45		<45	<45	<60	<60
Topology				Non-isolated
Self-consumption at Night (W)^*6				<15
Ingress Protection Rating				IP66
Mounting Method				Wall Mounted
		6: No Back-up Output. 7: For 400V grid, the Max. AC Current Output to Utility Grid is 23.9A for GW15K-ET, 31.9A for GW20K-ET, 39.9A for GW25K-ET, 43.3A for GW29.9K-ET, 47.8A for GW30K-ET. : For 400V grid, the Nominal Output Current is 21.7A for GW15K-ET, 29.0A for GW20K-ET, 36.2A for GW25K-ET, 43.3A for GW29.9K-ET, 43.5A for GW30K-ET. : Please visit GoodWe website for the latest certificates. *: All pictures shown are for reference only. Actual appearance may vary.
