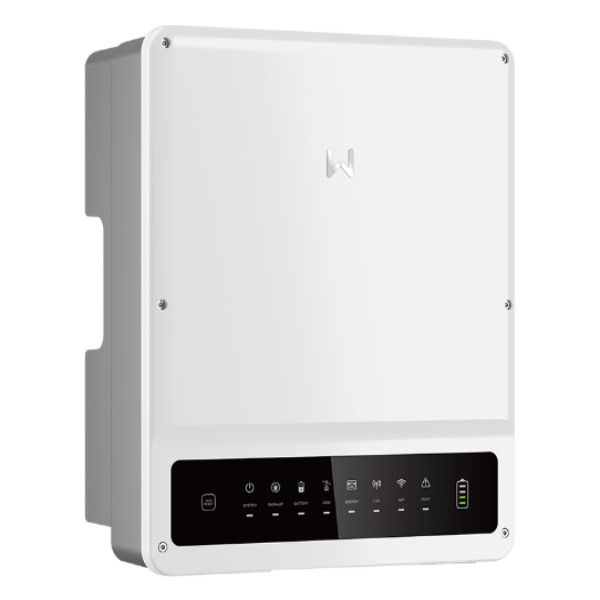

ET PLUS+ Goodwe Hybrid Inverter GW6.5K-ET 6500W Three Phase Hybrid Inverter

Product Details

Place of Origin: China

Brand Name: Goodwe

Certification: SAA / CE / ROHS / ISO9001 / CCC

Model Number: GW6.5K-ET

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Price: negotiable

Packaging Details: carton package

Supply Ability: 1000units/week

Get Best Price
Contact Now
Specifications
Highlight:

6.5kW Three Phase Hybrid Inverter PVkingdom

,

6.5kW Hybrid Inverter PVkingdom

,

6.5kW PVkingdom Hybrid Inverter

Type:
DC/AC Inverters
Phase:
Single Phase
Inverter Efficiency:
98.3%
Input Voltage:
180-1500V
Output Frequency:
50/60Hz
Protection Degree:
IP65
Operating Altitude:
4000(>3000 Derating)
Operation Temperature Range:
-30~60℃
User Interface:
LED, Bluetooth+APP
PID Recovery:
Optional
Type:
DC/AC Inverters
Phase:
Single Phase
Inverter Efficiency:
98.3%
Input Voltage:
180-1500V
Output Frequency:
50/60Hz
Protection Degree:
IP65
Operating Altitude:
4000(>3000 Derating)
Operation Temperature Range:
-30~60℃
User Interface:
LED, Bluetooth+APP
PID Recovery:
Optional
Description
ET PLUS+ Goodwe Hybrid Inverter GW6.5K-ET 6500W Three Phase Hybrid Inverter

Goodwe ET PLUS+ Series Hybrid Solar Inverter Goodwe Hybrid Inverter GW6.5K-ET 6.5kW three phase hybrid inverter



Battery Input Data
Battery Type   Li-Ion
Nominal Battery Voltage (V)   500
Battery Voltage Range (V)   180 ~ 600
Start-up Voltage (V)   180
Number of Battery Input   1
Max. Continuous Charging Current (A)   25
Max. Continuous Discharging Current (A)   25
Max. Charging Power (W) 7500 8450 9600 10000
Max. Discharging Power (W) 7500 8450 9600 10000
PV String Input Data
Max. Input Power (W) 7500 9700 12000 15000
Max. Input Voltage (V)*1   1000
MPPT Operating Voltage Range (V)*2   200 ~ 850
Start-up Voltage (V)   180
Nominal Input Voltage (V)   620
Max. Input Current per MPPT (A) 12.5 12.5 12.5 12.5
Max. Short Circuit Current per MPPT (A)   15.2
Number of MPP Trackers   2
Number of Strings per MPPT   1
AC Output Data (On-grid)
Nominal Output Power (W) 5000 6500 8000 10000
Nominal Apparent Power Output to Utility Grid (VA) 5000 6500 8000 10000
Max. Apparent Power Output to Utility Grid (VA)*2*4 5500 7150 8800 11000
Max. Apparent Power from Utility Grid (VA) 10000 13000 15000 15000
Nominal Output Voltage (V)   400 / 380, 3L / N / PE
Output Voltage Range (V)   0 ~ 300
Nominal AC Grid Frequency (Hz)   50 / 60
AC Grid Frequency Range (Hz)   45 ~ 65
Max. AC Current Output to Utility Grid (A) 8.5 10.8 13.5 16.5
Max. AC Current From Utility Grid (A) 15.2 19.7 22.7 22.7
Power Factor   ~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion   <3%
AC Output Data (Back-up)
Back-up Nominal Apparent Power (VA) 5000 6500 8000 10000
Max. Output Apparent Power without grid (VA)*3 5000 (10000@60sec) 6500 (13000@ 60sec) 8000 (16000@60sec) 10000 (16500@60sec)
Max. Output Apparent Power with grid (VA) 5000 6500 8000 10000
Max. Output Current (A) 8.5 10.8 13.5 16.5
Nominal Output Voltage (V)   400 / 380
Nominal Output Frequency (Hz)   50 / 60
Output THDv (@Linear Load)   <3%
Efficiency
Max. Efficiency 98.00% 98.00% 98.20% 98.20%
European Efficiency 97.20% 97.20% 97.50% 97.50%
Max. Battery to AC Efficiency 97.50% 97.50% 97.50% 97.50%
Protection
PV Insulation Resistance Detection   Integrated
Residual Current Monitoring   Integrated
PV Reverse Polarity Protection   Integrated
Anti-islanding Protection   Integrated
AC Overcurrent Protection   Integrated
AC Short Circuit Protection   Integrated
AC Overvoltage Protection   Integrated
DC Switch   Integrated
DC Surge Protection   Type II
AC Surge Protection   Type III
Remote Shutdown   Integrated
General Data
Operating Temperature Range (°C)   -35 ~ +60
Relative Humidity   0 ~ 95%
Max. Operating Altitude (m)   4000
Cooling Method   Natural Convection
User Interface   LED, APP
Communication with BMS*5   RS485, CAN
Communication with Meter   RS485
Communication with Portal   WiFi
Weight (kg)   24
Dimension (W × H × D mm)   415 × 516 × 180
Topology   Non-isolated
Self-consumption at Night (W)*6   <15
Ingress Protection Rating   IP66
Mounting Method   Wall Mounted





ET PLUS+ Goodwe Hybrid Inverter GW6.5K-ET 6500W Three Phase Hybrid Inverter 0

ET PLUS+ Goodwe Hybrid Inverter GW6.5K-ET 6500W Three Phase Hybrid Inverter 1

ET PLUS+ Goodwe Hybrid Inverter GW6.5K-ET 6500W Three Phase Hybrid Inverter 2

ET PLUS+ Goodwe Hybrid Inverter GW6.5K-ET 6500W Three Phase Hybrid Inverter 3

ET PLUS+ Goodwe Hybrid Inverter GW6.5K-ET 6500W Three Phase Hybrid Inverter 4
