Product Details
Place of Origin: China
Brand Name: Goodwe
Certification: SAA / CE / ROHS / ISO9001 / CCC
Model Number: GW3600-BH
Payment & Shipping Terms
Minimum Order Quantity: 10 units
Price: negotiable
Packaging Details: carton package
Supply Ability: 1000units/week
Type: |
DC/AC Inverters |
Phase: |
Single Phase |
Inverter Efficiency: |
98.3% |
Input Voltage: |
180-1500V |
Output Frequency: |
50/60Hz |
Protection Degree: |
IP65 |
Operating Altitude: |
4000(>3000 Derating) |
Operation Temperature Range: |
-30~60℃ |
User Interface: |
LED, Bluetooth+APP |
PID Recovery: |
Optional |
Type: |
DC/AC Inverters |
Phase: |
Single Phase |
Inverter Efficiency: |
98.3% |
Input Voltage: |
180-1500V |
Output Frequency: |
50/60Hz |
Protection Degree: |
IP65 |
Operating Altitude: |
4000(>3000 Derating) |
Operation Temperature Range: |
-30~60℃ |
User Interface: |
LED, Bluetooth+APP |
PID Recovery: |
Optional |

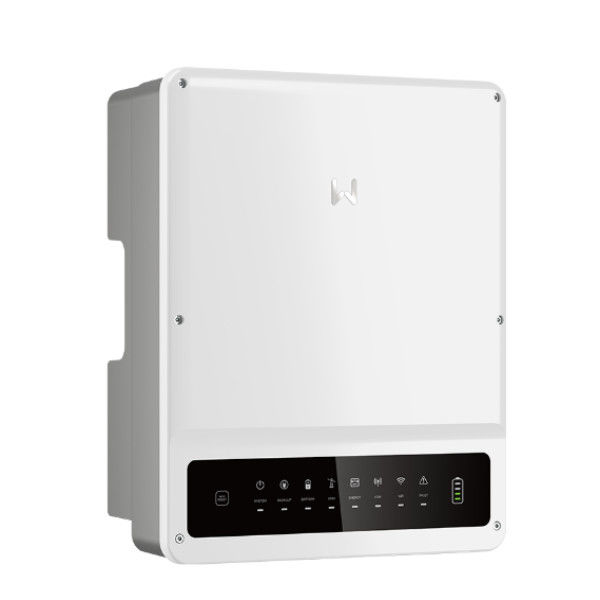

Goodwe BH Series GW3600-BH Hybrid Solar Inverter Goodwe Hybrid Inverter 3.6kW Single Phase hybrid inverter
| Battery Input Data | ||||
| Battery Type | Li-Ion | Li-Ion | Li-Ion | Li-Ion |
| Nominal Battery Voltage (V) | 350 | 350 | 350 | 350 |
| Battery Voltage Range (V) | 85 ~ 400 | 85 ~ 460 | 85 ~ 460 | 85 ~ 460 |
| Max. Continuous Charging Current (A) | 32 | 25 | 25 | 25 |
| Max. Continuous Discharging Current (A) | 32 | 25 | 25 | 25 |
| Max. Charging Power (W) | 3000 | 3600 | 5000 | 6000 |
| Max. Discharging Power (W) | 3300 | 4000 | 5500 | 6600 |
| AC Output Data (On-grid) | ||||
| Nominal Apparent Power Output to Utility Grid (VA)*1 | 3000 | 3600 | 5000 | 6000 |
| Max. Apparent Power Output to Utility Grid(VA)*1 | 3000 | 3600 | 5000 | 6000 |
| Max. Apparent Power from Utility Grid (VA) | 6000 | 7200 | 10000 | 12000 |
| Nominal Output Voltage (V) | 230 | 230 | 230 | 230 |
| Nominal AC Grid Frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 |
| Max. AC Current Output to Utility Grid (A) | 13.1 | 16.0 | 21.7 | 26.1 |
| Max. AC Current From Utility Grid (A) | 26.2 | 32.0 | 43.4 | 52.2 |
| Power Factor | Adjustable from 0.8 leading to 0.8 lagging | |||
| Max. Total Harmonic Distortion | <3% | <3% | <3% | <3% |
| AC Output Data (Back-up) | ||||
| Back-up Nominal Apparent Power (VA) | 3000 | 3600 | 5000 | 6000 |
| Max. Output Apparent Power (VA) | 3000 (3600@60sec) | 3600 (4320@60sec) | 5000 (6000@60sec) | 6000 (7200@60sec) |
| Max. Output Current (A) | 13.1 | 15.7 | 21.7 | 26.1 |
| Nominal Output Voltage (V) | 230 (±2%) | 230 (±2%) | 230 (±2%) | 230 (±2%) |
| Nominal Output Frequency (Hz) | 50 / 60 (±0.2%) | 50 / 60 (±0.2%) | 50 / 60 (±0.2%) | 50 / 60 (±0.2%) |
| Output THDv (@Linear Load) | <3% | <3% | <3% | <3% |
| Efficiency | ||||
| Max. Efficiency | 96.6% | 96.6% | 96.6% | 96.6% |
| European Efficiency | 96.0% | 96.0% | 96.0% | 96.0% |
| Max. Battery to AC Efficiency | 96.6% | 96.6% | 96.6% | 96.6% |
| Protection | ||||
| PV Insulation Resistance Detection | Integrated | Integrated | Integrated | Integrated |
| Residual Current Monitoring | Integrated | Integrated | Integrated | Integrated |
| Battery Reverse Polarity Protection | Integrated | Integrated | Integrated | Integrated |
| Anti-islanding Protection | Integrated | Integrated | Integrated | Integrated |
| AC Overcurrent Protection | Integrated | Integrated | Integrated | Integrated |
| AC Short Circuit Protection | Integrated | Integrated | Integrated | Integrated |
| AC Overvoltage Protection | Integrated | Integrated | Integrated | Integrated |
| General Data | ||||
| Operating Temperature Range (°C) | -25 ~ +60 | -25 ~ +60 | -25 ~ +60 | -25 ~ +60 |
| Relative Humidity | 0 ~ 95% | 0 ~ 95% | 0 ~ 95% | 0 ~ 95% |
| Max. Operating Altitude (m) | 3000*3 | 3000*3 | 3000*3 | 3000*3 |
| Cooling Method | Natural Convection | Natural Convection | Natural Convection | Natural Convection |
| User Interface | LED, APP | LED, APP | LED, APP | LED, APP |
| Communication with BMS | CAN | CAN | CAN | CAN |
| Communication with Meter | RS485 | RS485 | RS485 | RS485 |
| Communication with Portal | WiFi / Ethernet (Optional) | |||
| Weight (kg) | 15.5 | 15.5 | 15.5 | 15.5 |
| Dimension (W × H × D mm) | 354 × 433 × 147 | 354 × 433 × 147 | 354 × 433 × 147 | 354 × 433 × 147 |
| Noise Emission (dB) | <35 | <35 | <35 | <35 |
| Topology | Non-isolated | Non-isolated | Non-isolated | Non-isolated |
| Self-consumption at Night (W)*2 | <10 | <10 | <10 | <10 |
| Ingress Protection Rating | IP65 | IP65 | IP65 | IP65 |
| Mounting Method | Wall Mounted | Wall Mounted | Wall Mounted | Wall Mounted |
