Product Details
Place of Origin: China
Brand Name: Goodwe
Certification: SAA / CE / ROHS / ISO9001 / CCC
Model Number: GW50K06-ETC
Payment & Shipping Terms
Minimum Order Quantity: 10 units
Price: negotiable
Packaging Details: carton package
Supply Ability: 1000units/week
Type: |
DC/AC Inverters |
Phase: |
Single Phase |
Inverter Efficiency: |
98.3% |
Input Voltage: |
180-1500V |
Output Frequency: |
50/60Hz |
Protection Degree: |
IP65 |
Operating Altitude: |
4000(>3000 Derating) |
Operation Temperature Range: |
-30~60℃ |
User Interface: |
LED, Bluetooth+APP |
PID Recovery: |
Optional |
Type: |
DC/AC Inverters |
Phase: |
Single Phase |
Inverter Efficiency: |
98.3% |
Input Voltage: |
180-1500V |
Output Frequency: |
50/60Hz |
Protection Degree: |
IP65 |
Operating Altitude: |
4000(>3000 Derating) |
Operation Temperature Range: |
-30~60℃ |
User Interface: |
LED, Bluetooth+APP |
PID Recovery: |
Optional |

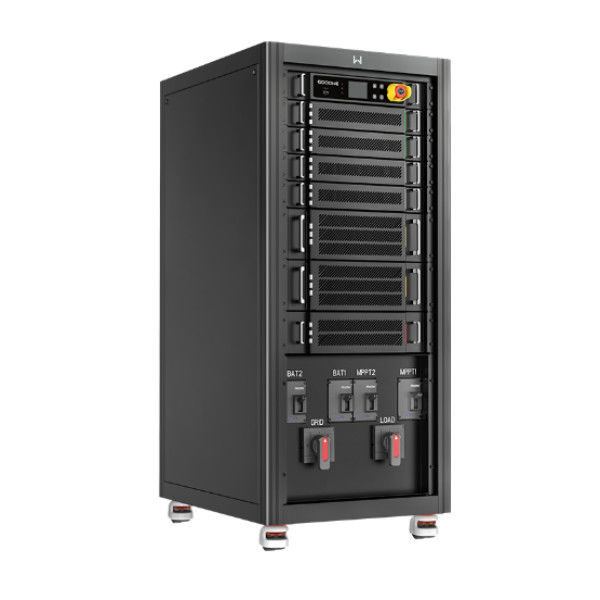

Goodwe ETC Series GW50K06-ETC 50kW Three Phase Hybrid inverter Goodwe Hybrid Inverter Hybrid Solar Inverter
| Battery Input Data | ||||
| Battery Type | Li-Ion | |||
| Nominal Battery Voltage (V) | 422.4 / 499.2 / 576.0 / 652.8 | |||
| Battery Voltage Range (V) | 200 ~ 865 | |||
| Start-up Voltage (V) | 200 | |||
| Number of Battery Input | 1 | 1 | 2 | 2 |
| Max. Continuous Charging Current (A) | 100 | 100 | 100 / 100 | 100 / 100 |
| Max. Continuous Discharging Current (A) | 100 | 100 | 100 / 100 | 100 / 100 |
| Max. Charging Power (kW) | 50 | 50 | 100 | 100 |
| Max. Discharging Power (kW) | 55 | 55 | 110 | 110 |
| PV String Input Data | ||||
| Max. Input Power (kW) | 65 | 65 | 130 | 130 |
| Max. Input Voltage (V) | 1000 | |||
| MPPT Operating Voltage Range (V) | 250 ~ 960 | |||
| Start-up Voltage (V) | 250 | |||
| Nominal Input Voltage (V) | 600 | |||
| Max. Input Current per MPPT (A) | 100 | |||
| Max. Short Circuit Current per MPPT (A) | 125 | |||
| Number of MPP Trackers | 1 | 1 | 2 | 2 |
| AC Output Data (On-grid) | ||||
| Nominal Output Power (kW) | 50 | 50 | 100 | 100 |
| Nominal Apparent Power Output to Utility Grid (kVA) | 50 | 50 | 100 | 100 |
| Max. Apparent Power Output to Utility Grid (kVA) | 55 | 55 | 110 | 110 |
| Max. Apparent Power from Utility Grid (kVA) | 55 | 55 | 110 | 110 |
| Nominal Output Voltage (V) | 400, 3L / N / PE | |||
| Output Voltage Range (V) | 312 ~ 460 (AU); 318 ~ 497 (Germany) | |||
| Nominal AC Grid Frequency (Hz) | 50 / 60 | |||
| AC Grid Frequency Range (Hz) | 47 ~ 52 (AU); 47.5 ~ 51.5 (Germany) | |||
| Max. AC Current Output to Utility Grid (A) | 79.8 | 79.8 | 159.5 | 159.5 |
| Max. AC Current from Utility Grid (A) | 79.8 | 79.8 | 159.5 | 159.5 |
| Power Factor | ~1 (Adjustable from 0.8 leading to 0.8 lagging) | |||
| Max. Total Harmonic Distortion | <3% | |||
| AC Output Data (Back-up) | ||||
| Back-up Nominal Apparent Power (kVA) | 50 | - | 100 | - |
| Max. Output Apparent Power without Grid (kVA) | 55 | - | 110 | - |
| Max. Output Apparent Power with Grid (kVA) | 55 | - | 110 | - |
| Max. Output Current (A) | 79.8 | - | 159.5 | - |
| Nominal Output Voltage (V) | 400 | - | 400 | - |
| Nominal Output Frequency (Hz) | 50 / 60 | - | 50 / 60 | - |
| Output THDv (@Linear Load) | <3% | - | <3% | - |
| Efficiency | ||||
| Max. Efficiency | 97.6% | |||
| European Efficiency | 97.3% | |||
| Max. Battery to AC Efficiency | 97.2% | |||
| MPPT Efficiency | 99.9% | |||
| Protection | ||||
| PV Insulation Resistance Detection | Integrated | |||
| Residual Current Monitoring | Integrated | |||
| PV Reverse Polarity Protection | Integrated | |||
| Battery Reverse Polarity Protection | Integrated | |||
| Anti-islanding Protection | Integrated | |||
| AC Overcurrent Protection | Integrated | |||
| AC Short Circuit Protection | Integrated | |||
| AC Overvoltage Protection | Integrated | |||
| DC Switch | Integrated | |||
| AC Switch | Integrated | |||
| DC Surge Protection | Type II (Type I + II Optional) | |||
| AC Surge Protection | Type II (Type I + II Optional) | |||
| Emergency Power Off | Integrated | |||
| Remote Shutdown | Integrated | |||
| General Data | ||||
| Operating Temperature Range (°C) | -20 ~ +60 (>45°C derating) | |||
| Relative Humidity | 0 ~ 95% (Non-condensing) | |||
| Max. Operating Altitude (m) | 4000 | |||
| Cooling Method | Smart Fan Cooling | |||
| User Interface | LED, LCD, WLAN + APP | |||
| Communication with BMS | RS485, CAN | |||
| Communication with Meter | RS485 | |||
| Communication with Portal | RS485, LAN | |||
| Weight (kg) | <200 | <200 | <260 | <260 |
| Dimension (W × H × D mm) | 585 × 1360 × 750 | |||
| Noise Emission (dB) | <68 | |||
| Topology | Non-isolated | |||
| Ingress Protection Rating | IP20 | |||
| Mounting Method | Grounded | |||
