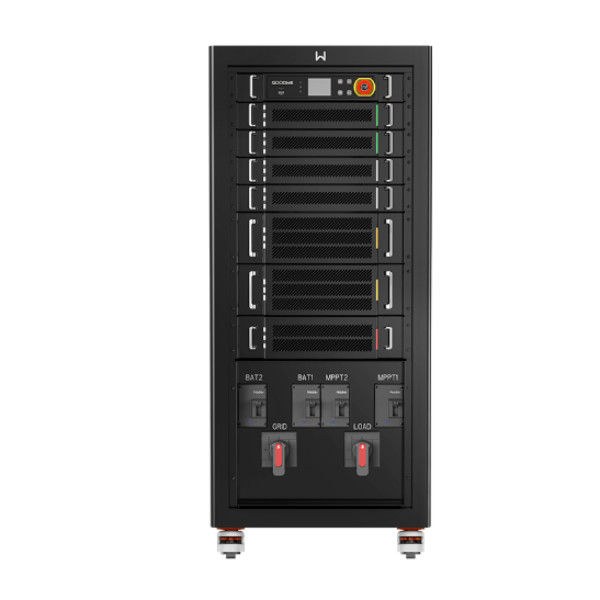

GW50K07-BTC 50kW Hybrid Inverter AC Coupled Goodwe BTC Series

Product Details

Place of Origin: China

Brand Name: Goodwe

Certification: SAA / CE / ROHS / ISO9001 / CCC

Model Number: GW50K07-BTC

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Price: negotiable

Packaging Details: carton package

Supply Ability: 1000units/week

Get Best Price
Contact Now
Specifications
Highlight:

GW50K07-BTC 50kW

,

50kW Hybrid Inverter

,

AC Coupled Goodwe BTC Series

Type:
DC/AC Inverters
Phase:
Single Phase
Inverter Efficiency:
98.3%
Input Voltage:
180-1500V
Output Frequency:
50/60Hz
Protection Degree:
IP65
Operating Altitude:
4000(>3000 Derating)
Operation Temperature Range:
-30~60℃
User Interface:
LED, Bluetooth+APP
PID Recovery:
Optional
Type:
DC/AC Inverters
Phase:
Single Phase
Inverter Efficiency:
98.3%
Input Voltage:
180-1500V
Output Frequency:
50/60Hz
Protection Degree:
IP65
Operating Altitude:
4000(>3000 Derating)
Operation Temperature Range:
-30~60℃
User Interface:
LED, Bluetooth+APP
PID Recovery:
Optional
Description
GW50K07-BTC 50kW Hybrid Inverter AC Coupled Goodwe BTC Series

Goodwe BTC Series GW50K07-BTC 50kW Three Phase AC-coupled retrofit residential and commercial solar hybrid inverter



Battery Input Data

Battery Type   Li-Ion
Nominal Battery Voltage (V)   422.4 / 499.2 / 576.0 / 652.8
Battery Voltage Range (V)   200 ~ 865
Start-up Voltage (V)   200
Number of Battery Input 1 1 2 2
Max. Continuous Charging Current (A) 100 100 100 / 100 100 / 100
Max. Continuous Discharging Current (A) 100 100 100 / 100 100 / 100
Max. Charging Power (kW) 50 50 100 100
Max. Discharging Power (kW) 55 55 110 110

PV String Input Data

Max. Input Power (kW) 65 65 130 130
Max. Input Voltage (V)   1000
MPPT Operating Voltage Range (V)   250 ~ 960
Start-up Voltage (V)   250
Nominal Input Voltage (V)   600
Max. Input Current per MPPT (A)   100
Max. Short Circuit Current per MPPT (A)   125
Number of MPP Trackers 1 1 2 2

AC Output Data (On-grid)

Nominal Output Power (kW) 50 50 100 100
Nominal Apparent Power Output to Utility Grid (kVA) 50 50 100 100
Max. Apparent Power Output to Utility Grid (kVA) 55 55 110 110
Max. Apparent Power from Utility Grid (kVA) 55 55 110 110
Nominal Output Voltage (V)   400, 3L / N / PE
Output Voltage Range (V)   312 ~ 460 (AU); 318 ~ 497 (Germany)
Nominal AC Grid Frequency (Hz)   50 / 60
AC Grid Frequency Range (Hz)   47 ~ 52 (AU); 47.5 ~ 51.5 (Germany)
Max. AC Current Output to Utility Grid (A) 79.8 79.8 159.5 159.5
Max. AC Current from Utility Grid (A) 79.8 79.8 159.5 159.5
Power Factor   ~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion   <3%

AC Output Data (Back-up)

Back-up Nominal Apparent Power (kVA) 50 - 100 -
Max. Output Apparent Power without Grid (kVA) 55 - 110 -
Max. Output Apparent Power with Grid (kVA) 55 - 110 -
Max. Output Current (A) 79.8 - 159.5 -
Nominal Output Voltage (V) 400 - 400 -
Nominal Output Frequency (Hz) 50 / 60 - 50 / 60 -
Output THDv (@Linear Load) <3% - <3% -

Efficiency

Max. Efficiency   97.6%
European Efficiency   97.3%
Max. Battery to AC Efficiency   97.2%
MPPT Efficiency   99.9%

Protection

PV Insulation Resistance Detection   Integrated
Residual Current Monitoring   Integrated
PV Reverse Polarity Protection   Integrated
Battery Reverse Polarity Protection   Integrated
Anti-islanding Protection   Integrated
AC Overcurrent Protection   Integrated
AC Short Circuit Protection   Integrated
AC Overvoltage Protection   Integrated
DC Switch   Integrated
AC Switch   Integrated
DC Surge Protection   Type II (Type I + II Optional)
AC Surge Protection   Type II (Type I + II Optional)
Emergency Power Off   Integrated
Remote Shutdown   Integrated

General Data

Operating Temperature Range (°C)   -20 ~ +60 (>45°C derating)
Relative Humidity   0 ~ 95% (Non-condensing)
Max. Operating Altitude (m)   4000
Cooling Method   Smart Fan Cooling
User Interface   LED, LCD, WLAN + APP
Communication with BMS   RS485, CAN
Communication with Meter   RS485
Communication with Portal   RS485, LAN
Weight (kg) <200 <200 <260 <260
Dimension (W × H × D mm)   585 × 1360 × 750
Noise Emission (dB)   <68
Topology   Non-isolated
Ingress Protection Rating   IP20
Mounting Method   Grounded





GW50K07-BTC 50kW Hybrid Inverter AC Coupled Goodwe BTC Series 0

GW50K07-BTC 50kW Hybrid Inverter AC Coupled Goodwe BTC Series 1





GW50K07-BTC 50kW Hybrid Inverter AC Coupled Goodwe BTC Series 2

GW50K07-BTC 50kW Hybrid Inverter AC Coupled Goodwe BTC Series 3

GW50K07-BTC 50kW Hybrid Inverter AC Coupled Goodwe BTC Series 4
