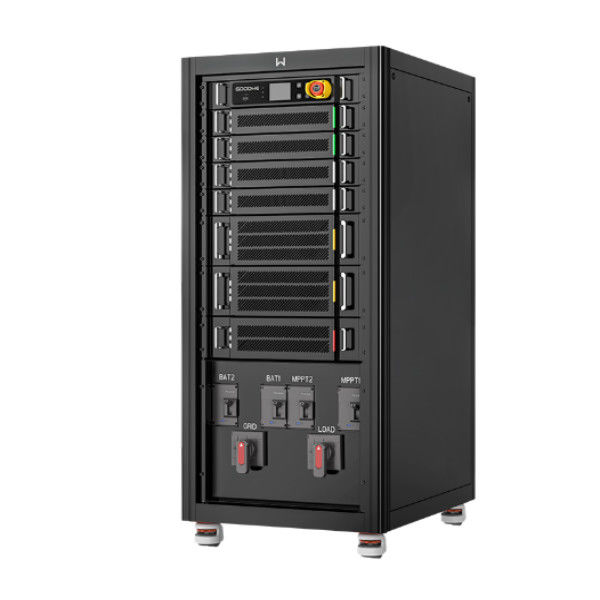

Goodwe BTC Series GW100K06-BTC 100kW Three Phase AC-coupled retrofit residential and commercial solar hybrid inverter

Name: Goodwe BTC Series GW100K06-BTC 100kW Three Phase AC-coupled retrofit residential and commercial solar hybrid inverter
Brand: PVkingdom (Chongqing) New Energy Co., Ltd.
SKU: GW100K06-BTC
Price: 0.12 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Goodwe

Certification: SAA / CE / ROHS / ISO9001 / CCC

Model Number: GW100K06-BTC

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Price: negotiable

Packaging Details: carton package

Supply Ability: 1000units/week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Three Phase Solar Hybrid Inverter, Goodwe 100kW Solar Hybrid Inverter


Type:	DC/AC Inverters	Phase:	Single Phase
Inverter Efficiency:	98.3%	Input Voltage:	180-1500V
Output Frequency:	50/60Hz	Protection Degree:	IP65
Operating Altitude:	4000(>3000 Derating)	Operation Temperature Range:	-30~60℃
User Interface:	LED, Bluetooth+APP	PID Recovery:	Optional

Type:	DC/AC Inverters
Phase:	Single Phase
Inverter Efficiency:	98.3%
Input Voltage:	180-1500V
Output Frequency:	50/60Hz
Protection Degree:	IP65
Operating Altitude:	4000(>3000 Derating)
Operation Temperature Range:	-30~60℃
User Interface:	LED, Bluetooth+APP
PID Recovery:	Optional

Description

Goodwe BTC Series GW100K06-BTC 100kW Three Phase AC-coupled retrofit residential and commercial solar hybrid inverter

Goodwe BTC Series GW100K06-BTC 100kW Three Phase AC-coupled retrofit residential and commercial solar hybrid inverter

Battery Input Data

Battery Type		Li-Ion
Nominal Battery Voltage (V)		422.4 / 499.2 / 576.0 / 652.8
Battery Voltage Range (V)		200 ~ 865
Start-up Voltage (V)		200
Number of Battery Input	1	1	2	2
Max. Continuous Charging Current (A)	100	100	100 / 100	100 / 100
Max. Continuous Discharging Current (A)	100	100	100 / 100	100 / 100
Max. Charging Power (kW)	50	50	100	100
Max. Discharging Power (kW)	55	55	110	110

PV String Input Data

Max. Input Power (kW)	65	65	130	130
Max. Input Voltage (V)		1000
MPPT Operating Voltage Range (V)		250 ~ 960
Start-up Voltage (V)		250
Nominal Input Voltage (V)		600
Max. Input Current per MPPT (A)		100
Max. Short Circuit Current per MPPT (A)		125
Number of MPP Trackers	1	1	2	2

AC Output Data (On-grid)

Nominal Output Power (kW)	50	50	100	100
Nominal Apparent Power Output to Utility Grid (kVA)	50	50	100	100
Max. Apparent Power Output to Utility Grid (kVA)	55	55	110	110
Max. Apparent Power from Utility Grid (kVA)	55	55	110	110
Nominal Output Voltage (V)		400, 3L / N / PE
Output Voltage Range (V)		312 ~ 460 (AU); 318 ~ 497 (Germany)
Nominal AC Grid Frequency (Hz)		50 / 60
AC Grid Frequency Range (Hz)		47 ~ 52 (AU); 47.5 ~ 51.5 (Germany)
Max. AC Current Output to Utility Grid (A)	79.8	79.8	159.5	159.5
Max. AC Current from Utility Grid (A)	79.8	79.8	159.5	159.5
Power Factor		~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion		<3%

AC Output Data (Back-up)

Back-up Nominal Apparent Power (kVA)	50	-	100	-
Max. Output Apparent Power without Grid (kVA)	55	-	110	-
Max. Output Apparent Power with Grid (kVA)	55	-	110	-
Max. Output Current (A)	79.8	-	159.5	-
Nominal Output Voltage (V)	400	-	400	-
Nominal Output Frequency (Hz)	50 / 60	-	50 / 60	-
Output THDv (@Linear Load)	<3%	-	<3%	-

Efficiency

Max. Efficiency		97.6%
European Efficiency		97.3%
Max. Battery to AC Efficiency		97.2%
MPPT Efficiency		99.9%

Protection

PV Insulation Resistance Detection		Integrated
Residual Current Monitoring		Integrated
PV Reverse Polarity Protection		Integrated
Battery Reverse Polarity Protection		Integrated
Anti-islanding Protection		Integrated
AC Overcurrent Protection		Integrated
AC Short Circuit Protection		Integrated
AC Overvoltage Protection		Integrated
DC Switch		Integrated
AC Switch		Integrated
DC Surge Protection		Type II (Type I + II Optional)
AC Surge Protection		Type II (Type I + II Optional)
Emergency Power Off		Integrated
Remote Shutdown		Integrated

General Data

Operating Temperature Range (°C)		-20 ~ +60 (>45°C derating)
Relative Humidity		0 ~ 95% (Non-condensing)
Max. Operating Altitude (m)		4000
Cooling Method		Smart Fan Cooling
User Interface		LED, LCD, WLAN + APP
Communication with BMS		RS485, CAN
Communication with Meter		RS485
Communication with Portal		RS485, LAN
Weight (kg)	<200	<200	<260	<260
Dimension (W × H × D mm)		585 × 1360 × 750
Noise Emission (dB)		<68
Topology		Non-isolated
Ingress Protection Rating		IP20
Mounting Method		Grounded

Goodwe BTC Series GW100K06-BTC 100kW Three Phase AC-coupled retrofit residential and commercial solar hybrid inverter 0

Goodwe BTC Series GW100K06-BTC 100kW Three Phase AC-coupled retrofit residential and commercial solar hybrid inverter 1

Goodwe BTC Series GW100K06-BTC 100kW Three Phase AC-coupled retrofit residential and commercial solar hybrid inverter 2

Goodwe BTC Series GW100K06-BTC 100kW Three Phase AC-coupled retrofit residential and commercial solar hybrid inverter 3

Goodwe BTC Series GW100K06-BTC 100kW Three Phase AC-coupled retrofit residential and commercial solar hybrid inverter 4
