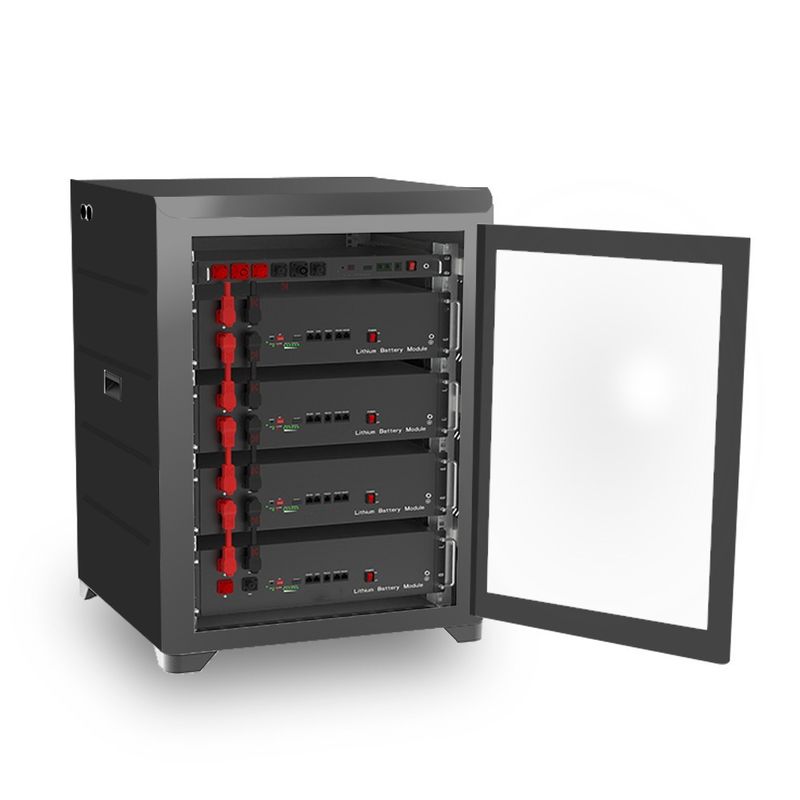

7.5kwh Rack Mount LiFePO4 Battery 150ah Rack Mount Solar Battery

Name: 7.5kwh Rack Mount LiFePO4 Battery 150ah Rack Mount Solar Battery
Brand: PVkingdom (Chongqing) New Energy Co., Ltd.
SKU: PV-RESS
Price: 0.12 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: PVkingdom

Certification: CE/RoHS/UN38.3/MSDS

Model Number: PV-RESS

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Price: negotiable

Packaging Details: wooden Case

Delivery Time: 5-7 working days

Payment Terms: T/T

Supply Ability: 500 units/week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      PVkingdom 7.5kwh Rack Mount LiFePO4, PVkingdom 7.5kwh Rack LiFePO4, PVkingdom 7.5kwh LiFePO4


Battery Type:	LiFePO4, Lithium Ion	Application:	Home Appliances, BOATS, Solar Energy System..
Nominal Voltage:	24V/25.6V 48V/51.2V	Cycle Life:	Over 6000 Times
Communication Port:	CAN, RS485	Warranty:	5-10 Years
OEM/ODM:	Accepatable	Output Power Range:	3-50kwh
Grid Connection:	Off Grid, Hybrid Grid	Type:	All-in-one

Battery Type:	LiFePO4, Lithium Ion
Application:	Home Appliances, BOATS, Solar Energy System..
Nominal Voltage:	24V/25.6V 48V/51.2V
Cycle Life:	Over 6000 Times
Communication Port:	CAN, RS485
Warranty:	5-10 Years
OEM/ODM:	Accepatable
Output Power Range:	3-50kwh
Grid Connection:	Off Grid, Hybrid Grid
Type:	All-in-one

Description

7.5kwh Rack Mount LiFePO4 Battery 150ah Rack Mount Solar Battery

Residential Energy Storage Rack Mount LiFePO4 Battery Solar Energy Storage 48V 51.2V 150ah 7.5kwh lithium battery pack

PVkingdom Deep Cycle 48V LiFePO4 Battery Pack *Using standard 3U size, battery energy up to 5.12 kwh. *Using stable quality and long life aluminum shell LFP battery. *With charging current limiting function, maximum 15 units parallel connect on Adopts dual-port output, more convenient for parallel. *Accurate LED power display and status indication.
*Grade-A LifePo4 battery, neat and safe wiring, no cumbersome redundant lines, automotive-grade design ideas, safe and beautiful.

Product Paramenters

Lifepo4 battery Options
Model	Nominal Voltage	Nominal Capacity	Energy
PV-25.6V 100AH	25.6V	100AH	2560WH
PV-25.6V 150AH	25.6V	150AH	3840WH
PV-25.6V 200AH	25.6V	200AH	5120WH
PV-25.6V 250AH	25.6V	250AH	6400WH
PV-48V 50AH	48V/51.2V	50AH	2400WH
PV-48V 100AH	48V/51.2V	100AH	4800WH
PV-48V 150AH	48V/51.2V	150AH	7200WH
PV-48V 200AH	48V/51.2V	200AH	9600WH
PV-48V 250AH	48V/51.2V	250AH	12000WH
PV-48V 300AH	48V/51.2V	300AH	14400WH

Lithium Solar Energy Storage Cabinet ESS Options
Module model	48/51.2V50Ah	48/51.2V80Ah	48/51.2V100Ah	48/51.2V150Ah	48/51.2V200Ah	48/51.2V300Ah
Number of modules	4PCS	4PCS	4PCS	4PCS	4PCS	4PCS
Battery Type	LiFePO4	LiFePO4	LiFePO4	LiFePO4	LiFePO4	LiFePO4
System Parameters
Rated voltage	48/51.2V			48/51.2V
Rated capacity	50Ah	80Ah	100Ah	150Ah	200Ah	300Ah
Rated energy	10.24KWh	16.37KWh	21.5KWh	32.76KWh	47.1KWh	57.34KWh
Rated charging current	25A	40A	50A	80A	115A	140A
Maximum charging current	50A	80A	105A	160A	230A	280A
Rated discharge current	50A	80A	105A	160A	230A	280A
Maximum discharge current	100A	160A	210A	320A	460A	460A
Charging temperature	0-55℃			0-55℃
Discharge temperature	-10-55℃			-10-55℃
Operating temperature	15-25℃			15-25℃
Cooling method	Natural cooling			Natural cooling
Relative humidity	5%-95%			5%-95%
Operating altitude	≤2000M			≤2000M
Cycle life	≥6000@80%DOD,0.5C/0.5C,25℃			≥6000@80%DOD,0.5C/0.5C,25℃
Communication method	CAN/RS485/RS232/OPTIONAL			CAN/RS485/RS232/OPTIONAL
Protective function	Over temperature, over current, short circuit, over charge, over discharge, etc.			Over temperature, over current, short circuit, over charge, over discharge, etc.
Display screen	LCD screen/Not(optional)			LCD screen/Not(optional)
Design service life	≥10 years			≥10 years
Certification	UN38.3/UL/IEC/CE/MSDS			UN38.3/UL/IEC/CE/MSDS
Cabinet size	To be confirmed	To be confirmed	To be confirmed	To be confirmed	To be confirmed	To be confirmed
Total weight	To be confirmed	To be confirmed	To be confirmed	To be confirmed	To be confirmed	To be confirmed
