5kw Hopewind Three Phase Hybrid Inverter HYNV5K-G01 For Home Use

Name: 5kw Hopewind Three Phase Hybrid Inverter HYNV5K-G01 For Home Use
Brand: PVkingdom (Chongqing) New Energy Co., Ltd.
SKU: HYNV5K-G01
Price: 0.12 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Hopewind

Certification: ICE EN VDE

Model Number: HYNV5K-G01

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Export packaging

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  5kw Hopewind Hybrid Inverter, Three phase Hopewind Hybrid Inverter, HYNV5K-G01 Hopewind Hybrid Inverter


Communication:	CAN/RS485	Type:	On-grid And Off-grid
Display:	LED, APP, Web	Max. PV Input Voltage:	1000V
Warranty:	5 Years	Battery Type:	Lithium-ion
Battery Voltage:	120-800V	Model:	Hybrid Inverter
Max. Input Current:	20A	Weight:	23kg
Output Frequency:	50/60hz	Ac Connection:	Plug And Play Connector
DC Connection:	MC4	Degree Of Protection:	IP66
Max. PV Power:	7.5kw	AC Output(Grid):	5kw
AC Output(Backup):	5kw

Communication:	CAN/RS485
Type:	On-grid And Off-grid
Display:	LED, APP, Web
Max. PV Input Voltage:	1000V
Warranty:	5 Years
Battery Type:	Lithium-ion
Battery Voltage:	120-800V
Model:	Hybrid Inverter
Max. Input Current:	20A
Weight:	23kg
Output Frequency:	50/60hz
Ac Connection:	Plug And Play Connector
DC Connection:	MC4
Degree Of Protection:	IP66
Max. PV Power:	7.5kw
AC Output(Grid):	5kw
AC Output(Backup):	5kw

Description

5kw Hopewind Three Phase Hybrid Inverter HYNV5K-G01 For Home Use

5kw Hopewind Three-phase Hybrid Inverter HYNV5K-G01for home use

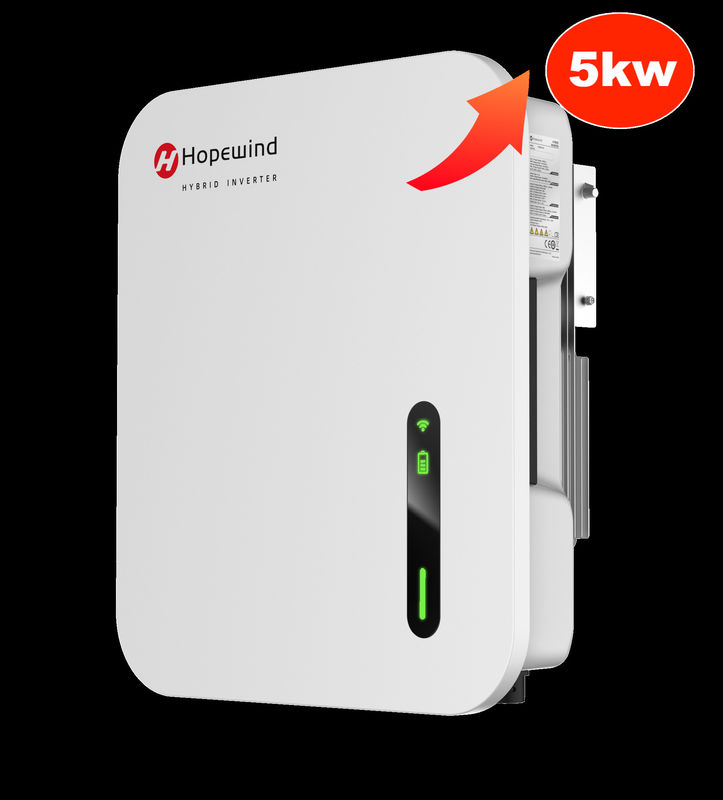

5kw Hopewind Three Phase Hybrid Inverter HYNV5K-G01 For Home Use 0

5kw Hopewind Three Phase Hybrid Inverter HYNV5K-G01 For Home Use 1

Features:

Flexible application

• Up to 20 A string current
• Support 210 mm & bifacial PV modules
• 100 ~ 800 V wide battery voltage range

Convenient installation

• All quick Plug and Play terminals

• Ergonomic handle

• WIFI + LAN connection for 24/7 monitoring

Superior performance

• 98.4% maximum conversion efficiency

• Support up to 3HP air conditioner black startup

• 100% three-phase unbalanced output

Safe & Reliable

• Integrated arc fault circuit interrupter (AFCI)
• IP66 ingress protection
• 4ms backup mode switching time

Parameters:

Model	HYNV5K-G01	HYNV6K-G01	HYNV8K-G01	HYNV10K-G01	HYNV12K-G01
PV Input
Recommended Max. PV power	7.5 kW	9 kW	12 kW	15 kW	18 kW
Max. PV Input Voltage	1000 V
Operating Voltage Range	140 — 950 V			200 — 950 V
Startup Voltage	180 V			250 V
Rated Input Voltage	600 V
Number of MPP Trackers	2
Max. Input Number Per MPP Tracker	1月1日			2月1日
Max. Input Current Per MPPT	20/20 A			27/20 A
Max. Short-circuit Current	30/30 A			40.5/30 A
Battery
Battery Type	Lithium battery
Battery Voltage	100 — 800 V
Max. Charge / Discharge Current	30 A			37 A
Max. Charge / Discharge Power	5 kW	6 kW	8 kW	10 kW	12 kW
Communication	CAN / RS485
AC Output (Grid)
Rated Output Power	5 kW	6 kW	8 kW	10 kW	12 kW
Max. Apparent Output Power	5.5 kVA	6.6 kVA	8.8 kVA	11 kVA	13.2 kVA
Rated Grid Voltage	380 V / 400 V (3P + N + PE)
Rated Grid Frequency	50 Hz / 60 Hz
Max. Output Current	8.4 A	10 A	13.3 A	16.7 A	20 A
Power Factor	>0.99 (0.8 leading — 0.8 lagging)
THDi	<3% (at rated power)
AC Output (Backup)
Rated Output Power	5 kW	6 kW	8 kW	10 kW	12 kW
Max. Apparent Output Power	5.5 kVA	6.6 kVA	8.8 kVA	11 kVA	13.2 kVA
Back-up Switch Time	4 ms
Rated Output Voltage	380 V / 400 V (3P + N + PE)
Rated Frequency	50 Hz / 60 Hz
THDv (Linear Load)	<3%
AC Input (Grid)
Max. Input Power	10 kW	12 kW	16 kW	20 kW	24 kW
Rated Input Current	15.2 A	18.2 A	24.2 A	30.3 A	36.4 A
Rated Input Voltage	380 V / 400 V (3P + N + PE)
Rated Input Frequency	50 Hz / 60 Hz
Efficiency
Max. Efficiency	98.00%			98.40%
European Efficiency	97.30%	97.60%		97.80%
Protection & Function
Grid Monitoring	Yes
AC Short-circuit Protection	Yes
DC Reverse Polarity Protection	Yes
DC Overcurrent Protection (Battery)	Yes
DC Switch (PV)	Yes
Surge Protection	Yes
Integrated AFCI	Yes
General Data
Topology (Solar / Battery)	Transformerless /Transformerless
Dimensions (W × H × D)	508 × 583 × 204 mm
Weight	22 kg			27 kg
Degree of Protection	IP66
Operating Temperature Range	-25 — +60 ℃
Operating Humidity Range	0 — 100% (non-condensing)
Max. Operating Altitude	3000 m
Cooling Method	Natural cooling
Display	LED, APP, Web
Communication	CAN / RS485
DC Connection Type	MC4
AC Connection Type	Plug-and-play connector

Application scenarios:

5kw Hopewind Three Phase Hybrid Inverter HYNV5K-G01 For Home Use 2

5kw Hopewind Three Phase Hybrid Inverter HYNV5K-G01 For Home Use 3

5kw Hopewind Three Phase Hybrid Inverter HYNV5K-G01 For Home Use 4

5kw Hopewind Three Phase Hybrid Inverter HYNV5K-G01 For Home Use 5

Package and Delivery:

5kw Hopewind Three Phase Hybrid Inverter HYNV5K-G01 For Home Use 6

5kw Hopewind Three Phase Hybrid Inverter HYNV5K-G01 For Home Use 7

5kw Hopewind Three Phase Hybrid Inverter HYNV5K-G01 For Home Use 8

5kw Hopewind Three Phase Hybrid Inverter HYNV5K-G01 For Home Use 9
