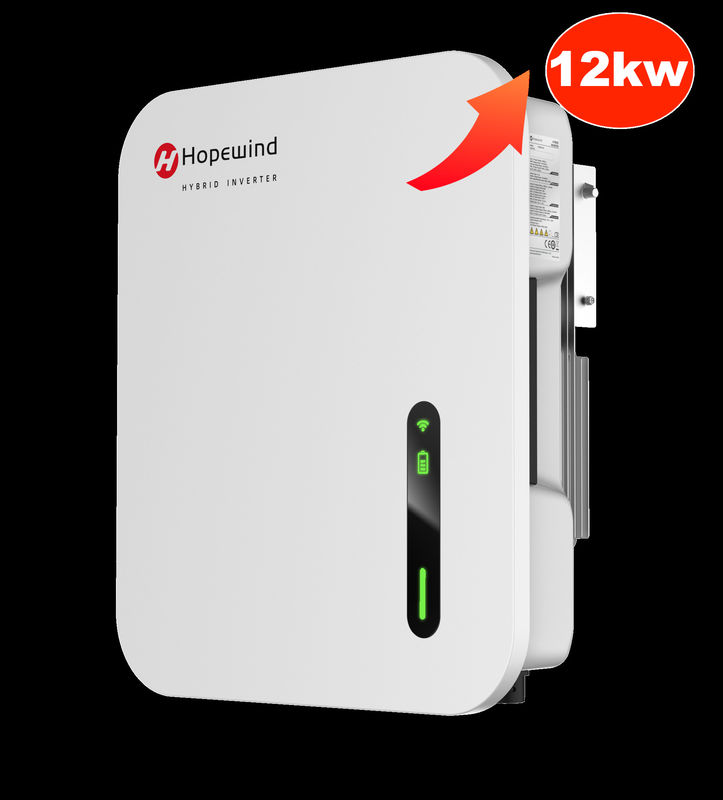

12kw Hopewind Three Phase Hybrid Inverter HYNV12K-G01 for Home Use

Product Details

Place of Origin: China

Brand Name: Hopewind

Certification: ICE EN VDE

Model Number: HYNV12K-G01

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Export packaging

Get Best Price
Contact Now
Specifications
Highlight:

HYNV12K-G01 Three phase Hybrid Inverter

,

12kw Three phase Hybrid Inverter

,

12kw Hopewind Hybrid Inverter

Communication:
CAN/RS485
Type:
On-grid And Off-grid
Display:
LED, APP, Web
Max. PV Input Voltage:
1000V
Warranty:
5 Years
Battery Type:
Lithium-ion
Battery Voltage:
120-800V
Model:
Hybrid Inverter
Max. Input Current:
20A
Weight:
27kg
Output Frequency:
50/60hz
Ac Connection:
Plug And Play Connector
DC Connection:
MC4
Degree Of Protection:
IP66
Max. PV Power:
18kw
AC Output(Grid):
12kw
AC Output(Backup):
12kw
Communication:
CAN/RS485
Type:
On-grid And Off-grid
Display:
LED, APP, Web
Max. PV Input Voltage:
1000V
Warranty:
5 Years
Battery Type:
Lithium-ion
Battery Voltage:
120-800V
Model:
Hybrid Inverter
Max. Input Current:
20A
Weight:
27kg
Output Frequency:
50/60hz
Ac Connection:
Plug And Play Connector
DC Connection:
MC4
Degree Of Protection:
IP66
Max. PV Power:
18kw
AC Output(Grid):
12kw
AC Output(Backup):
12kw
Description
12kw Hopewind Three Phase Hybrid Inverter HYNV12K-G01 for Home Use

10kw Hopewind Three-phase Hybrid Inverter HYNV10K-G01for home use



12kw Hopewind Three Phase Hybrid Inverter HYNV12K-G01 for Home Use 0

12kw Hopewind Three Phase Hybrid Inverter HYNV12K-G01 for Home Use 1

Features:



Flexible application

• Up to 20 A string current
• Support 210 mm & bifacial PV modules
• 100 ~ 800 V wide battery voltage range
Convenient installation
• All quick Plug and Play terminals

• Ergonomic handle

• WIFI + LAN connection for 24/7 monitoring

Superior performance

• 98.4% maximum conversion efficiency

• Support up to 3HP air conditioner black startup

• 100% three-phase unbalanced output

Safe & Reliable

• Integrated arc fault circuit interrupter (AFCI)
• IP66 ingress protection
• 4ms backup mode switching time



Parameters:



Model HYNV5K-G01 HYNV6K-G01 HYNV8K-G01 HYNV10K-G01 HYNV12K-G01
PV Input
Recommended Max. PV power 7.5 kW 9 kW 12 kW 15 kW 18 kW
Max. PV Input Voltage 1000 V
Operating Voltage Range 140 — 950 V 200 — 950 V
Startup Voltage 180 V 250 V
Rated Input Voltage 600 V
Number of MPP Trackers 2
Max. Input Number Per MPP Tracker 1月1日 2月1日
Max. Input Current Per MPPT 20/20 A 27/20 A
Max. Short-circuit Current 30/30 A 40.5/30 A
Battery
Battery Type Lithium battery
Battery Voltage 100 — 800 V
Max. Charge / Discharge Current 30 A 37 A
Max. Charge / Discharge Power 5 kW 6 kW 8 kW 10 kW 12 kW
Communication CAN / RS485
AC Output (Grid)
Rated Output Power 5 kW 6 kW 8 kW 10 kW 12 kW
Max. Apparent Output Power 5.5 kVA 6.6 kVA 8.8 kVA 11 kVA 13.2 kVA
Rated Grid Voltage 380 V / 400 V (3P + N + PE)
Rated Grid Frequency 50 Hz / 60 Hz
Max. Output Current 8.4 A 10 A 13.3 A 16.7 A 20 A
Power Factor >0.99 (0.8 leading — 0.8 lagging)
THDi <3% (at rated power)
AC Output (Backup)
Rated Output Power 5 kW 6 kW 8 kW 10 kW 12 kW
Max. Apparent Output Power 5.5 kVA 6.6 kVA 8.8 kVA 11 kVA 13.2 kVA
Back-up Switch Time 4 ms
Rated Output Voltage 380 V / 400 V (3P + N + PE)
Rated Frequency 50 Hz / 60 Hz
THDv (Linear Load) <3%
AC Input (Grid)
Max. Input Power 10 kW 12 kW 16 kW 20 kW 24 kW
Rated Input Current 15.2 A 18.2 A 24.2 A 30.3 A 36.4 A
Rated Input Voltage 380 V / 400 V (3P + N + PE)
Rated Input Frequency 50 Hz / 60 Hz
Efficiency
Max. Efficiency 98.00% 98.40%
European Efficiency 97.30% 97.60% 97.80%
Protection & Function
Grid Monitoring Yes
AC Short-circuit Protection Yes
DC Reverse Polarity Protection Yes
DC Overcurrent Protection (Battery) Yes
DC Switch (PV) Yes
Surge Protection Yes
Integrated AFCI Yes
General Data
Topology (Solar / Battery) Transformerless /Transformerless
Dimensions (W × H × D) 508 × 583 × 204 mm
Weight 22 kg 27 kg
Degree of Protection IP66
Operating Temperature Range -25 — +60 ℃
Operating Humidity Range 0 — 100% (non-condensing)
Max. Operating Altitude 3000 m
Cooling Method Natural cooling
Display LED, APP, Web
Communication CAN / RS485
DC Connection Type MC4
AC Connection Type Plug-and-play connector



Application scenarios:

12kw Hopewind Three Phase Hybrid Inverter HYNV12K-G01 for Home Use 2

12kw Hopewind Three Phase Hybrid Inverter HYNV12K-G01 for Home Use 3

12kw Hopewind Three Phase Hybrid Inverter HYNV12K-G01 for Home Use 4

12kw Hopewind Three Phase Hybrid Inverter HYNV12K-G01 for Home Use 5

Package and Delivery:

12kw Hopewind Three Phase Hybrid Inverter HYNV12K-G01 for Home Use 6

12kw Hopewind Three Phase Hybrid Inverter HYNV12K-G01 for Home Use 7

12kw Hopewind Three Phase Hybrid Inverter HYNV12K-G01 for Home Use 8

12kw Hopewind Three Phase Hybrid Inverter HYNV12K-G01 for Home Use 9
