Product Details
Place of Origin: China
Brand Name: Goodwe
Certification: CE/RoHS/UN38.3/MSDS
Model Number: U Series 32.4kwh
Payment & Shipping Terms
Minimum Order Quantity: 10 units
Price: negotiable
Packaging Details: wooden Case
Delivery Time: 5-7 working days
Payment Terms: T/T
Supply Ability: 500 units/week
Battery Type: |
LiFePO4, Lithium Ion |
Nominal Voltage: |
24V/25.6V 48V/51.2V |
Communication Port: |
CAN, RS485 |
Output Power Range: |
3-50kwh |
Grid Connection: |
Off Grid, Hybrid Grid |
Application: |
Home Appliances, BOATS, Solar Energy System.. |
Cycle Life: |
Over 6000 Times |
Warranty: |
5-10 Years |
Type: |
All-in-one |
OEM/ODM: |
Accepatable |
Battery Type: |
LiFePO4, Lithium Ion |
Nominal Voltage: |
24V/25.6V 48V/51.2V |
Communication Port: |
CAN, RS485 |
Output Power Range: |
3-50kwh |
Grid Connection: |
Off Grid, Hybrid Grid |
Application: |
Home Appliances, BOATS, Solar Energy System.. |
Cycle Life: |
Over 6000 Times |
Warranty: |
5-10 Years |
Type: |
All-in-one |
OEM/ODM: |
Accepatable |

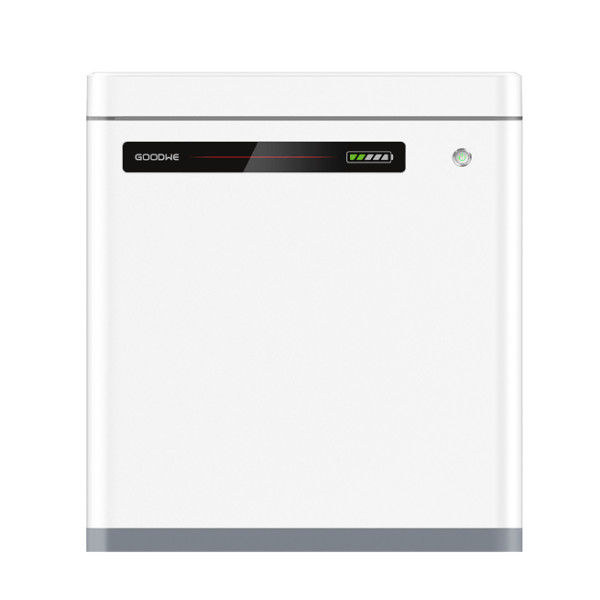

Goodwe Lynx Home U Series 32.4kWh Low voltage battery Stackable LiFePO4 Battery Residential Energy Storage
| Rated Energy (kWh)*1 | 5.4 | 10.8 | 16.2 | 21.6 | 27.0 | 32.4 | |
| Usable Energy (kWh)*2 | 4.8 | 9.6 | 14.4 | 19.2 | 24.0 | 28.8 | |
| Cell Type | LFP (LiFePO4) | ||||||
| Nominal Voltage (V) | 51.2 | ||||||
| Operating Voltage Range (V) | 48 ~ 57.6 | ||||||
| Nominal Dis- / Charge Current (A)*3 | 50 | 100 | 100 | 100 | 100 | 100 | |
| Nominal Power (kW)*3 | 2.88 | 5.76 | 5.76 | 5.76 | 5.76 | 5.76 | |
| Communication | CAN | ||||||
| Weight (kg) | 57 | 114 | 171 | 228 | 285 | 342 | |
| Dimensions (W × H × D mm) | 505 × 570 × 175 (LX U5.4-L) | ||||||
| Operating Temperature Range (°C) | Charge: 0 ~ +50 / Discharge: -10 ~ +50 | ||||||
| Relative Humidity | 0 ~ 95% | ||||||
| Max. Operating Altitude (m) | 2000 | ||||||
| Ingress Protection Rating | IP65 | ||||||
| Mounting Method | Wall Mounted / Grounded | ||||||
| Standard and Certification | Safety | IEC62619, IEC62040, CEC | |||||
| EMC | CE, RCM | ||||||
| Transportation | UN38.3 | ||||||
