Product Details
Place of Origin: China
Brand Name: Kingfeels
Certification: ISO
Model Number: KF-CR-17
Payment & Shipping Terms
Minimum Order Quantity: USD 20000
Price: Negotiable
Packaging Details: Export packaging
Delivery Time: 15 working days after the receipt of payment
Payment Terms: T/T, L/C
Material: |
Aluminium, Steel，AL6005-T5, SUS304 |
Color: |
Silver, Black |
Anti-corrosive: |
Anodized |
Install Site: |
Open Field Area |
Tilt Angle: |
0-45 Degree |
Applicable Module: |
Framed Or Frameless |
Max Wind Speed: |
≤60m/s |
Snow Load: |
≤1.4KN/M2 |
Warranty: |
12 Years |
Material: |
Aluminium, Steel，AL6005-T5, SUS304 |
Color: |
Silver, Black |
Anti-corrosive: |
Anodized |
Install Site: |
Open Field Area |
Tilt Angle: |
0-45 Degree |
Applicable Module: |
Framed Or Frameless |
Max Wind Speed: |
≤60m/s |
Snow Load: |
≤1.4KN/M2 |
Warranty: |
12 Years |

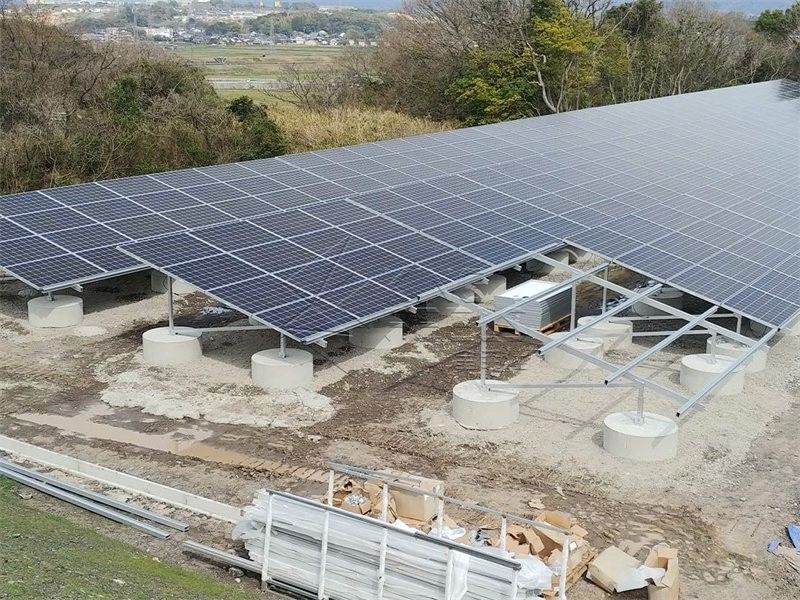

Anodized Aluminum Al-Mg-Zn Coated Solar Module Mounting Structure Ground Series
The main material of the system is high-strength aluminum, and bolts are all stainless-steel, so the anti-corrosion and self-recovery effect is very good, especially suit for island countries, such as Japan, Singapore ,Philippines.
The aluminum ground mount structure can match different base, for example ground screw, pile or concrete foundation. It also can used on flat ground or little slop ground. The array can be placed 2*n vertically, 3*n, 4*n horizontally, or larger arrays can also be done, but the difficulty of construction also needs to be considered when selecting the array. If the height of the upper end of the module is particularly high, the construction on site will be very difficult. The selection of span depends on the parameters of wind load and snow load of the project site. Through calculation, we can get the number of foundations. Of course, in the process of design, we also need to consider the situation of land as much as possible. If the customer can provide soil report and foundation test report, Kingfeels aluminum solar engineer team can provide a more accurate design.
Technical Data
| Install Site | Open field area |
| Max Wind Speed | ≤60m/s |
| Snow Load | ≤1.4KN/M2 |
| Tilt Angle | 0-45 degree |
| Applicable Module | Framed or frameless |
| Module Orientation | Landscape, portrait |
| Standards | AS/NZS 1170, ASCE 7-10, JIS2017 |
| Material | AL6005-T5, SUS304 |
| Anti-corrosive | Anodized |
| Color | Silver, Black |
| Warranty | 12 years |
Aluminium Solar Module Mounting systems:
Al-Mg-Zn Coated Solar Module Mounting system:
Hot-dip galvanized Al-Mg-Zn coated ground-mounted photovoltaic brackets offer excellent seismic resistance, corrosion resistance, and wind pressure resistance.
The galvanized magnesium-aluminum coating provides protection to the solar panels, allowing them to withstand over 10 years of exposure to sunlight, corrosion, strong winds, rain, snow, and other potential damages.
