Product Details
Place of Origin: China
Brand Name: PVkingdom
Certification: CCC/ISO
Model Number: YTBWX
Payment & Shipping Terms
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: Export packaging
Delivery Time: 15 working days after the receipt of payment
Payment Terms: T/T, L/C
Product Name: |
PV Combiner Box |
Model: |
YTBWX Single/Three Phase |
Installed Power: |
1-200 Kw |
Box Material: |
PC/SMC/Cold Rolled Steel/Stainless Steel |
Level Of Protection: |
Outdoor IP45/ IP55/IP65 |
Installation Ways: |
Indoor And Outdoor Wall Mounted |
Grid-connection Voltage: |
AC:220V AC:380V |
Contact Capacity: |
20A-100A/Single Phase 32A-400A/Three Phase |
Product Name: |
PV Combiner Box |
Model: |
YTBWX Single/Three Phase |
Installed Power: |
1-200 Kw |
Box Material: |
PC/SMC/Cold Rolled Steel/Stainless Steel |
Level Of Protection: |
Outdoor IP45/ IP55/IP65 |
Installation Ways: |
Indoor And Outdoor Wall Mounted |
Grid-connection Voltage: |
AC:220V AC:380V |
Contact Capacity: |
20A-100A/Single Phase 32A-400A/Three Phase |

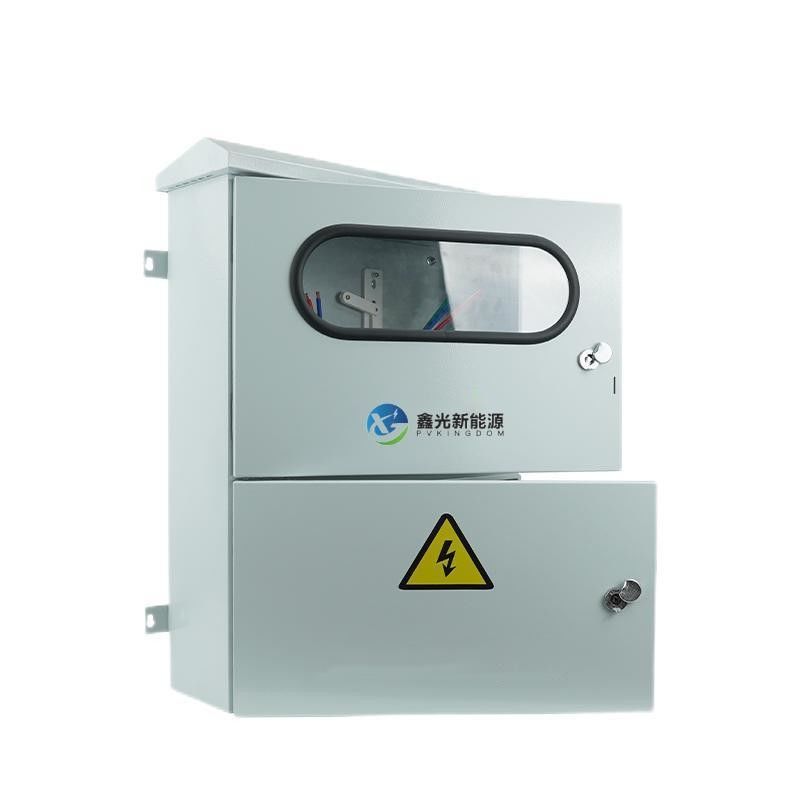

1-200 Kw AC/DC On-Grid PV Combiner Box For PV System Single Phase Three Phase
An On-Grid PV Combiner Box also known as a grid-tied combiner box, is an essential component used in grid-connected photovoltaic (PV) systems. Its primary function is to consolidate and manage the output of multiple PV strings or arrays before connecting them to the grid.The PV on-grid combiner box serves as a central point where the DC output from multiple PV strings or arrays is combined and connected to the grid. It provides a convenient and organized solution for wiring and protection.
YTBWX on-grid PV combiner box features a series of protections, including anti-islanding protection, overvoltage protection, undervoltage trip, low grid voltage, input lightning protection, system overcurrent, and grid isolation. Accurate energy metering, transmission, and intelligent operation control are essential parts of a household grid-connected power generation system. The product has obtained industry-standard CCC certification, IS9001 quality management system certification, and others.
Parameters:
|
Model |
YTBWX(Single phase) |
YTBWX(Three phase) |
|
Installed Power |
1KW~20kW |
3KW~200KW |
|
Number of inverter input |
1/2/3/4 |
|
|
Number of output |
1 |
|
|
Grid-connection requirement |
Single phase/Three phase |
|
|
Grid-connection voltage |
AC:220V AC:380V |
|
|
Contact capacity |
20A-100A |
32A-400A |
|
Short circuit protection |
with |
|
Overload protection |
with |
|
Lightning protection |
with(Nominal current:In:20KA,Imax:40KA,Up≤4kV) |
|
Isolation protection |
with(刀闸/手拉式隔离开关) |
|
Over and under voltage protection |
with |
|
Automatic reclosing |
with |
|
Self-duplex overvoltage and undervoltage protector (optional) 40A~125A |
When there is a power outage or the grid voltage deviates by more than 20%, it will automatically disconnect (internally disconnected).
When the grid is restored to normal, it will automatically close (internally connected). |
|
Small reclosing circuit breaker for photovoltaic (optional) 20A~100A |
When there is a power outage or the grid voltage deviates by more than 20%, it will automatically trip (operated by the handle).
When the grid is restored to normal, it will automatically close (operated by the handle).
The operation can be switched between manual and automatic modes. It has voltage detection for closing. |
|
Plastic case reclosing (optional) 40A~400A |
When there is a power outage or the grid voltage deviates by more than 20%, it will automatically trip (adjustable delay time of 0 to 10 seconds).
When the grid is restored to normal, it will automatically close.
The operation can be switched between manual and automatic modes.
It has phase loss protection and zero-crossing protection.
It has voltage detection for closing. |
|
Temperature & Humidity |
Operating temperature: -25 to +60℃ Storage temperature: -40 to +70℃ Humidity: 0-90%no frost; Non-corrosive gas sites (if any, please specify) |
|
Altitude |
≤3000M |
|
Salt spray resistance |
Standard salt spray test 336 hours |
| Material of the box | PC/SMC/Cold rolled steel/Stainless steel |
| Level of protection | Outdoor IP45/ IP55/IP65 |
| Box types |
Double door with gauge (distribution bin, metering bin) Single door without metering bin (optional) |
| Installation ways | Indoor and outdoor wall mounted |
| Box size | 180X400X600180X500X750(customizable) |
IP65 Waterproof and Dustproof Design
