Product Details
Place of Origin: China
Brand Name: PVkingdom
Certification: CCC/ISO
Model Number: YTBWG
Payment & Shipping Terms
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: Export packaging
Delivery Time: 15 working days after the receipt of payment
Payment Terms: T/T, L/C
Product Namee: |
PV Combiner Box |
Model: |
YTBWG |
Box Material: |
Cold Rolled Steel/Stainless Steel |
Number Of Inverter Input: |
1-5 |
Installation Ways: |
Floor Vertical Mounted |
Grid-connection Voltage: |
AC:380V-AC:500V |
Switch: |
ZJYITO, Chint, Delixi, Changshu, ABB, Schneider, Liangxin And Other Well-known Brands |
Product Namee: |
PV Combiner Box |
Model: |
YTBWG |
Box Material: |
Cold Rolled Steel/Stainless Steel |
Number Of Inverter Input: |
1-5 |
Installation Ways: |
Floor Vertical Mounted |
Grid-connection Voltage: |
AC:380V-AC:500V |
Switch: |
ZJYITO, Chint, Delixi, Changshu, ABB, Schneider, Liangxin And Other Well-known Brands |

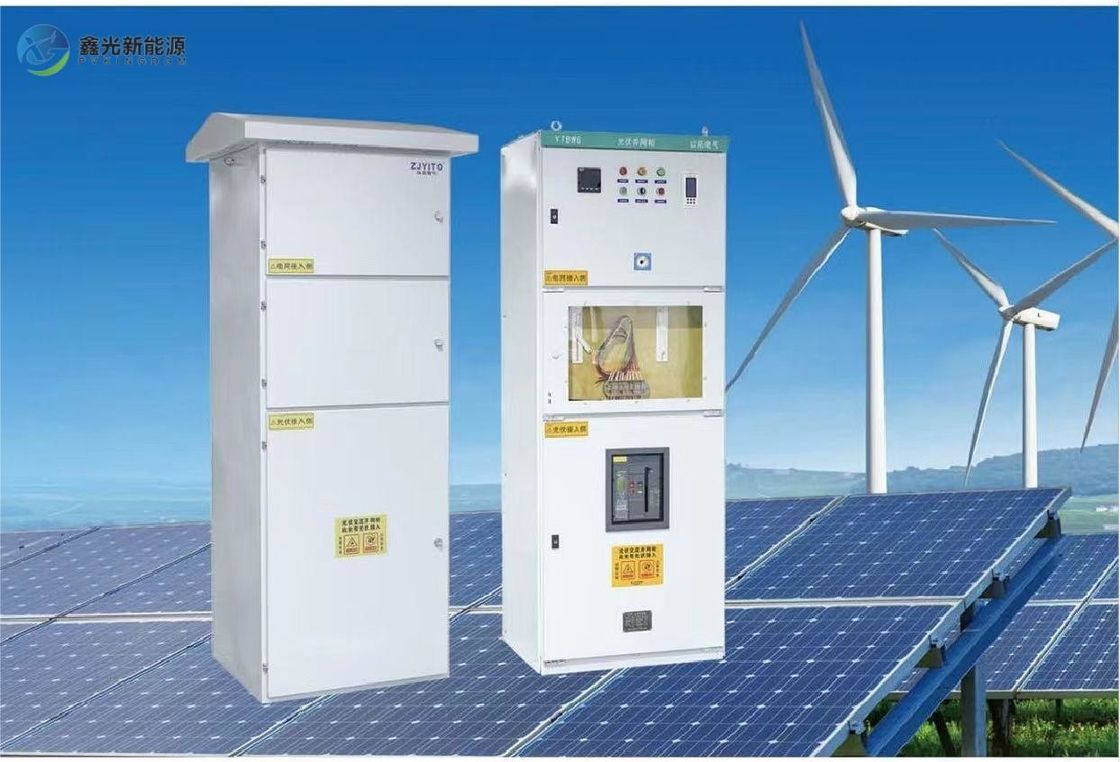

Three Phase AC/DC On-Grid PV Combiner Box For 100-2000 kW PV System
On-grid PV Combiner Box plays a vital role in connecting the photovoltaic array to the grid, converting power, ensuring system safety, and enabling measurement and monitoring. It provides essential support for the efficient and reliable injection of photovoltaic power into the grid.
YTBWG on-grid PV Combiner Box primarily designed for high-power commercial and industrial photovoltaic grid-connected systems ranging from 100 kW to 2000 kW. It is connected between the grid-tied inverter (or AC combiner box) and the grid. The product features a range of protections, including anti-islanding protection, voltage detection for closing, undervoltage trip, low grid voltage, overvoltage protection, input lightning protection, system overcurrent, and grid isolation. The multifunctional meter display and fault status indication provide clear visibility of the system's operational status. The product has obtained industry-standard CCC certification and IS09001 quality management system certification.
Parameters:
|
Model |
YTBWG (Three phase) |
|
|
Installed Power |
100KW~2000KW |
|
|
Number of inverter input |
1-5 |
|
|
Number of output |
1 |
|
|
Grid-connection requirement |
Three phase |
|
|
Grid-connection voltage |
AC:380V-AC:500V |
|
|
Switch(optional) |
ZJYITO, Chint, Delixi, Changshu, ABB, Schneider, Liangxin and other well-known brands |
|
Protection function:
|
Short circuit protection |
with |
|
Overload protection |
with |
|
Lightning protection |
with(Nominal current:In:20KA,Imax:40KA,Up≤4kV) |
|
Isolation protection |
with(刀闸/手拉式隔离开关) |
|
Over and under voltage protection |
with |
|
Automatic reclosing |
with |
| Panel manually open and close | with |
| Optional functions |
Online power quality monitor; (optional); Anti-island protection device; (optional); Fault disconnecting device; (optional) |
|
Plastic shell recloser (optional 100A~800A)
|
When there is a power outage or the grid voltage deviates by more than 20%, it will automatically trip (adjustable delay time of 0 to 10 seconds).
When the grid is restored to normal, it will automatically close.
The operation can be switched between manual and automatic modes.
It has phase loss protection and zero-crossing protection.
It has voltage detection for closing. |
|
Universal frame circuit breaker (optional 200A~4000A)
|
When there is a power outage or the grid voltage deviates by more than 20%, it will automatically trip (adjustable delay time of 0 to 10 seconds).
When the grid is restored to normal, it will automatically close.
The operation can be switched between manual and automatic modes.
It has phase loss protection and zero-crossing protection.
It has voltage detection for closing. |
|
Temperature & Humidity |
Operating temperature: -25 to +60℃ Storage temperature: -40 to +70℃ Humidity: 0-90% no frost Non-corrosive gas sites (if any, please specify) |
|
Altitude |
≤3000M |
|
Salt spray resistance |
Standard salt spray test 336 hours |
| Material of the box | Cold rolled steel/Stainless steel |
| Installation | Outdoor & Indoor |
| Box types |
Distribution bin, measuring bin, transformer bin, isolation switch bin |
| Installation ways | Floor vertical mounting |
| Box size | 600mm*800mm*2200mm/800mm*800mm*2200mm (customizable) |
