Product Details
Place of Origin: China
Brand Name: TW Solar
Certification: TUV CE CQC ISO
Model Number: TWMND-78HS605-625
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: $0.14~$0.15
Packaging Details: carton pallet 31 pcs per pallet,496 pcs per 40'HC
Delivery Time: 5-15 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000+peices/month
Cell Type: |
TNC |
Cell Orientation: |
156[6×26] |
Dimensions: |
2465±2×1134±2×35mm |
Weight: |
30.6 Kg |
Front Glass: |
3.2 Mm AR Coated Heat Strengthenedglass |
Backsheet: |
White |
Junction Box: |
IP68，3 Diodes |
Fire Class Rating: |
Class C |
Cell Type: |
TNC |
Cell Orientation: |
156[6×26] |
Dimensions: |
2465±2×1134±2×35mm |
Weight: |
30.6 Kg |
Front Glass: |
3.2 Mm AR Coated Heat Strengthenedglass |
Backsheet: |
White |
Junction Box: |
IP68，3 Diodes |
Fire Class Rating: |
Class C |

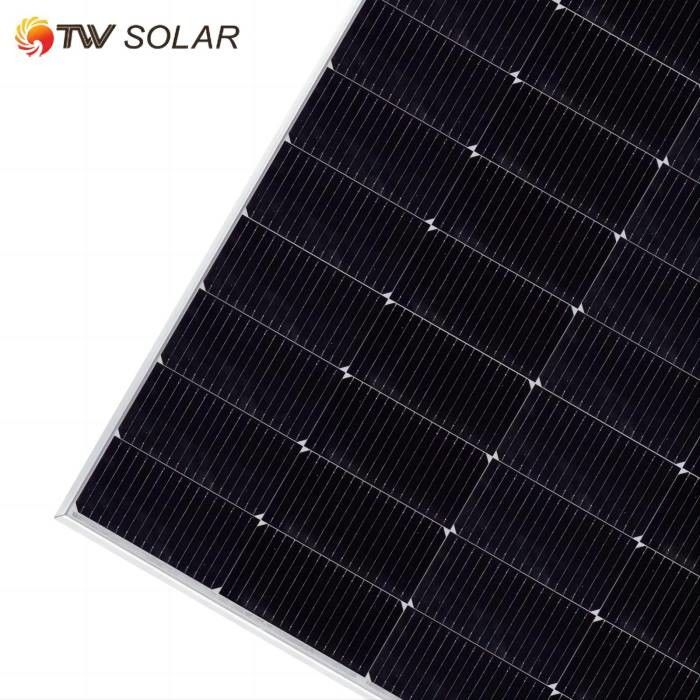

TW Solar Pv Module 605W 610W Mono Panel Solar 615W Solar Panel 620 Watt 625W Solar Panels
Features
1,Ultra-high Power for the Lowest LCOE and Highest IRR
2,Ultra-high Efficiency of 20.78%
3,Reliable Tiling Ribbon Technology Eliminating the Inter-cell Gap
4,9 Busbar Technology Decreasing the Resistance Loss
| Electrical Characteristics (STQ) | Temperature rating Temperature Coe ffcientof Pman Temperature Coe ffcient of Voc Tempersture Coefficientof be NMOT |
-030%/C -025%/ ℃ +0045%/C 45±zC |
|||
| Modud type: TWMND-78HS*** | |||||
| Maoimum Power Pmax [W] 605 610 615 620 625 | |||||
| Open Circuit Voltage: Voc M] | 57.05 | ||||
| ShortCrcuit Curent Ixe [A] 13.35 13.40 1345 1350 13.55 | |||||
| Voltage at MaximumPower: Vmp M 47.82 48.02 4822 4842 48.62 | |||||
| Current at M acimum Power: Imp [A] 12.65 12.70 1275 1281 12.85 | |||||
| Module Effciengy:n[%] 21.6 21.8 22.0 222 224 | |||||
| STC Irradiance 1000W/m', Cell Temperature 25℃, AM=1.5, Test Uhcertainty±3% | |||||
| Electrical Characteristics(NMOT) | Operating Parameters | ||||
| Macimum Power: Pmax [M] 457.8 461.6 465.4 469.2 4730 | Operating Temperature | 40℃-+85℃ | |||
| Open Crcuit Voltage: Voc M] 53.39 53.61 5384 5407 54.26 | Maimum System Voltage | 1500VCC | |||
| ShortGrcuit Curent Ise[A] 10.52 10.56 1059 1063 10.67 | Maimum Series Fuse Rsting | 25A | |||
| Voltage at MaximumPower: Vmp M 45.76 46.04 4632 4661 46.80 | PowerOutputTolerance | 0-+5W | |||
| Current at Macimum Power: Imp [A] 10.01 10.03 1005 1007 10.11 | |||||
| NMOT: Iradiance 800W/m, AmbientTemperatue 20C, AM=1.5. Wind Speed 1m/s | |||||
| MechnicalParameters | |||||
| Cel Type | TNC | ||||
| Cel Orientsfcn | 1586×26 | ||||
| Dimensons | 2465±2×1134±2×35mm | ||||
| Weight | 30.6kg | ||||
| Font Glass | 3.2 mm AR mated heat strengthenedglas | ||||
| Badksheet | White | ||||
| Fame | Anodired auminum alloyframe | ||||
| Junetion Box | P68,3 diodes | ||||
| Csble | 40 mm² | ||||
| Cable length | +400mm,-200mm,length can be customized | ||||
| Wind/Snowload | 2400Pa/5400Pa | ||||
| Psckaging | 31 pesper pallet,496 pesper 40'HC | ||||
| Fire dass rating | CasC | ||||
Chongqing PVkingdom New Energy Co.,Ltd., is a new energy technology enterprise engaged in new energy project design,
Authorized
WHY CHOOSE US
1. More than 12 years experience in solar power generation system.
2. Project Design of Solar Power Generation System.
3. Located in Asia's Largest Lithium Battery industry Zone.
4. Passed the certification of TUVULCE and JET
5. The product series includes solar panels, inverters,batteries, mounting brackets.
6. Provide one-stop photovoltaic solution.
