Product Details
Place of Origin: China
Brand Name: Jinko
Certification: IEC ISO
Model Number: JKM560-580N-72HL4-BDV-F6-EN
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: $0.13~$0.15
Packaging Details: carton pallet
Delivery Time: 5-15 days
Payment Terms: L/C, T/T
Supply Ability: 10000+peices/month
Material: |
Monocrystalline Silicon |
Cell Size: |
182mmx182mm |
Panel Dimensions: |
2278*1134*35mm |
Model Number: |
JKM570N-72HL4-BDV |
Weight: |
32 Kg |
Cell Type: |
N-type Topcon Mono-crystalline |
Solar Cells: |
144 Cell |
Type: |
Half Cell, Bifacial, Double-glass, N-TYPE, TOPCON |
Material: |
Monocrystalline Silicon |
Cell Size: |
182mmx182mm |
Panel Dimensions: |
2278*1134*35mm |
Model Number: |
JKM570N-72HL4-BDV |
Weight: |
32 Kg |
Cell Type: |
N-type Topcon Mono-crystalline |
Solar Cells: |
144 Cell |
Type: |
Half Cell, Bifacial, Double-glass, N-TYPE, TOPCON |

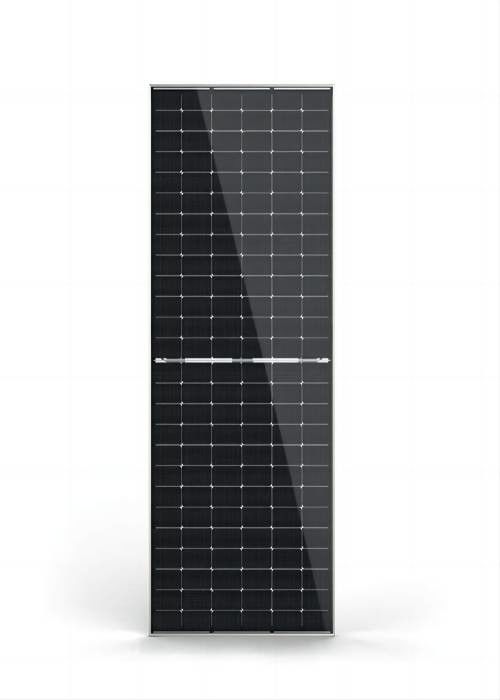

Jinko Tiger Neo N-Type 72HL4-BDV 560-580 Watt Bifacial Solar Panels For Solar Energy System 550w Solar Panel1,Power 635W
Features:
1,Power 635W , Efficiency 23.23% ,Power Warranty 30 Years,Temperature Coefficient -0.29%/℃,Max.Bifaciality 85%,Topcon Technology Innovation,Selective Passivation Contact
2,Ultra-High Power Generation/Ultra-High Efficiency
3,Higher Bifacial Gain
4,Enhanced Reliability
5,Lower LID / LETID
6,High Compatibility
7,Optimized Temperature Coefficient
8,Lower Operating Temperature
9,Optimized Degradation
10,Outstanding Low Light Performance
11,Exceptional PID Resistance
12,The Temperature Coefficient Of P-Type Is -0.35%/℃,Under High Temperature Condition, Tiger Neo Can Generate 2% More Power Than P-Type
| SPECIFICATIONS | ||||||||||
| Module Type | JKM560N-72HL4-BDV | JKM565N-72HL4-BDV | JKM570N-72HL4-BDV | JKM575N-72HL4-BDV | JKM580N-72HL4-BDV | |||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Masimum Power [Pmax] | 560Wp | 421Wp | 565Wp | 425Wp | 570Wp | 429Wp | 575Wp | 432Wp | 580Wp | 436Wp |
| Maximum Power Voltloge [Vmp] | 41.95V | 39.39V | 42.14V | 39.52V | 42.29V | 39.65V | 42.44V | 39.78V | 42.59V | 3987V |
| Mavimum Power Cument [lmp] | 13.35A | 10.69A | 13.41A | 10.75A | 13.48A | 10.81A | 13.55A | 10.87A | 13.62A | 10.94A |
| Open-circuit Voltoge [Voc] | 50.67V | 48.13V | 50.87V | 48.32V | 51.07V | 48.51V | 51.27V | 48.70V | 51.47V | 48.89V |
| Shor-circuit Cument [sc] | 14.13A | 11.41A | 14.19A | 11.46A | 14.25A | 11.50A | 14.31A | 11.55A | 14.37A | 11.60A |
| Module Effciency STC | 21.68% | 21.87% | 22.07% | 22.26% | 22.45% | |||||
| Operoting Temperature['9 | -40℃-+85℃ | |||||||||
| Maximum system voltoge | 1500VDC [IEC] | |||||||||
| Masimum series fuse rating | 30A | |||||||||
| Power toleronce | 0-+3% | |||||||||
| Temperature coeffcients of Pmax | 0.29%/℃ | |||||||||
| Temperature coefficients ofVoc | 0.25%/℃ | |||||||||
| Temperature coeffcients of kc | 0045%/℃ | |||||||||
| Nomindl operating cel temperature [NOCI] | 45±2℃ | |||||||||
| Refer. Bifocidl Factor | 80±5% | |||||||||
WHY CHOOSE US
1. More than 12 years experience in solar power generation system.
2. Project Design of Solar Power Generation System.
3. Located in Asia's Largest Lithium Battery industry Zone.
4. Passed the certification of TUVULCE and JET
5. The product series includes solar panels, inverters,batteries, mounting brackets.
6. Provide one-stop photovoltaic solution.
