Product Details
Place of Origin: China
Brand Name: Jinko
Certification: IEC ISO
Model Number: JKM565-585N-72HL4-(V)-F4-EN
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: carton pallet
Delivery Time: 5-15 days
Payment Terms: L/C, T/T
Supply Ability: 10000+peices/month
Cell Size: |
182mmx182mm |
Type: |
PERC, Half Cell |
Warranty: |
30years |
Panel Dimensions: |
2278*1134*35mm |
Model Number: |
JKM565-585N-72HL4 |
Frame: |
Anodized Aluminium Alloy |
Weight: |
28kg |
Cell Size: |
182mmx182mm |
Type: |
PERC, Half Cell |
Warranty: |
30years |
Panel Dimensions: |
2278*1134*35mm |
Model Number: |
JKM565-585N-72HL4 |
Frame: |
Anodized Aluminium Alloy |
Weight: |
28kg |

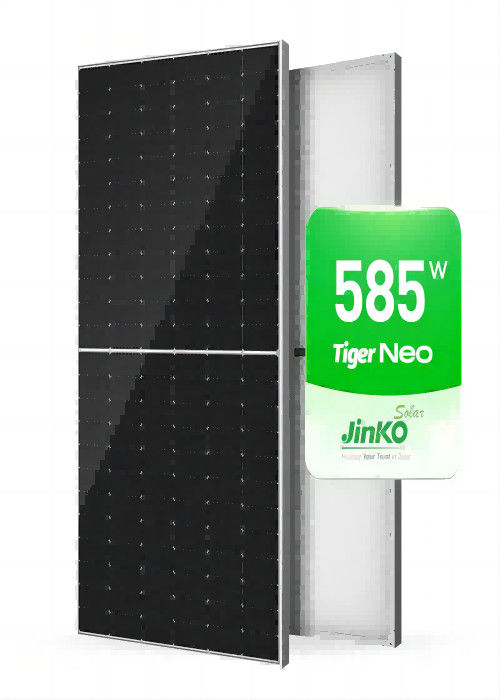

Jinko High Quality Mono Solar Panel 565-585 watt mono-facial module N-Type 570w tiger neo n-type solar panel
Features:
1,Power 635W , Efficiency 23.23% ,Power Warranty 30 Years,Temperature Coefficient -0.29%/℃,Max.Bifaciality 85%,Topcon Technology Innovation,Selective Passivation Contact
2,Ultra-High Power Generation/Ultra-High Efficiency
3,Higher Bifacial Gain
4,Enhanced Reliability
5,Lower LID / LETID
6,High Compatibility
7,Optimized Temperature Coefficient
8,Lower Operating Temperature
9,Optimized Degradation
10,Outstanding Low Light Performance
11,Exceptional PID Resistance
12,The Temperature Coefficient Of P-Type Is -0.35%/℃,Under High Temperature Condition, Tiger Neo Can Generate 2% More Power Than P-Type
| SPECIFICATIONS | ||||||||||
| Module Type | JKM565N-72HL4 | JKM570N-72HL4 | JKM575N-72HL4 | JKM580N-72HL4 | JKM585N-72HL4 | |||||
| JKM565N-72HL4-V | JKM570N-72HL4-V | JKM575N-72HL4-V | JKM580N-72HL4-V | JKM585N-72HL4-V | ||||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power [Pmax] | 565Wp | 425Wp | 570Wp | 429Wp | 575Wp | 432Wp | 580Wp | 436Wp | 585Wp | 440Wp |
| Maximum Power Voltage [Vmp] | 41.92V | 39.38V | 42.07V | 39.51V | 42.22V | 39.60V | 42.37V | 39.69V | 42.52V | 39.81V |
| Maximum Power Cument [lmp] | 13.48A | 10.79A | 13.55A | 10.85A | 13.62A | 10.92A | 13.69A | 10.99A | 13.76A | 11.05A |
| Open-circuit Voltloge [Voc] | 50.60V | 48.06V | 50.74V | 48.20V | 50.88V | 48.33V | 51.02V | 48.46V | 51.16V | 48.60V |
| Short-cicut Cument [lsc] | 14.23A | 11.49A | 14.31A | 11.55A | 14.39A | 11.62A | 14.47A | 11.68A | 14.55A | 11.75A |
| Module Effidency STC %) | 21.87% | 22.07% | 22.26% | 22.45% | 22.65% | |||||
| Openrating Temperature['9 | 40℃-+85℃ | |||||||||
| Maximum system voltloge | 1000/1500VDC (IEC) | |||||||||
| Maximum series fuse rating | 25A | |||||||||
| Power tolerance | 0-+3% | |||||||||
| Temperature coeffcients of Pmax | 029%/℃ | |||||||||
| Temperature coeffcients ofVoc | 0.25%/℃ | |||||||||
| Temperature coeffcients oflsc | 0045%/℃ | |||||||||
| Nominaloperating cel temperature [NOCI] | 45±2℃ | |||||||||
WHY CHOOSE US
1. More than 12 years experience in solar power generation system.
2. Project Design of Solar Power Generation System.
3. Located in Asia's Largest Lithium Battery industry Zone.
4. Passed the certification of TUVULCE and JET
5. The product series includes solar panels, inverters,batteries, mounting brackets.
6. Provide one-stop photovoltaic solution.
