Product Details
Place of Origin: China
Brand Name: TW
Certification: IEC ISO
Model Number: TWMPD-72HD540-560W
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: $0.14~$0.15
Packaging Details: carton pallet
Delivery Time: 5-15 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000+peices/month
Cell Size: |
182mmx182mm |
Type: |
PERC, Half Cell, Bifacial, Double-glass |
Panel Efficiency: |
21.70% |
Certificate: |
TUV/CGC/CE |
Panel Dimensions: |
2278X1134X30mm |
Brand Name: |
TW SOLAR |
Model Number: |
TWMPD-72HD |
Cells: |
Monocrystalline Silicon Cell |
Cell Size: |
182mmx182mm |
Type: |
PERC, Half Cell, Bifacial, Double-glass |
Panel Efficiency: |
21.70% |
Certificate: |
TUV/CGC/CE |
Panel Dimensions: |
2278X1134X30mm |
Brand Name: |
TW SOLAR |
Model Number: |
TWMPD-72HD |
Cells: |
Monocrystalline Silicon Cell |

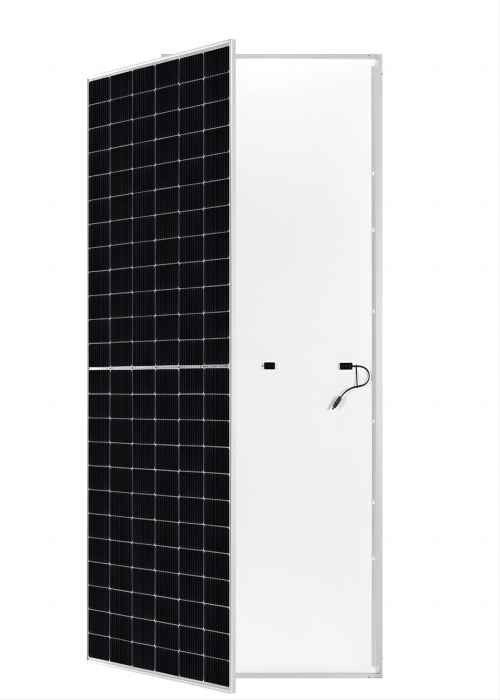

TW Solar Module 550w Mono 540W 545W Bifacial Solar Power Panels 555W 560
Features
1. Adopting multi-main shed (MBB) half-sheet technology, the output power is away from 410W, and the conversion efficiency of the module reaches 21.17%.
2. Anti-PID performance. The PID (Potential Induced Degradation) resistance authority test(85°C/85% RH, 96 hours) under the harsh conditions of the industry minimizes the chance of degradation caused by the PID.
3. 10 main grid cells. All the cells are upgraded to 10/11 main grid cells,which have stronger current collection capability and more stable power
4. Mechanical load. Certified for wind load of 2400 Pa at the back of the assembly and snow load of 5400 Pa at the front.
5. Excellent low light power generation performance. Excellent electrical performance output under low light conditions.
6. Low light attenuation. Rigorous ATLAS steady-state light testing ensures excellent photoluminescence performance for each batch of modules.
7. Rigorous EL testing. Spatial resolution is less than 0.5 mm,and more than two EL tests before and after to ensure zero defects inside the component.
8. Fully automated component production line. Guarantee 100% online production 100% online inspection to ensure consistent product quality.
| Electrical Characteristies(STC) | Temperature Ratings | |||||||||
| Module Type:TWMPD-72HDXXX | Temporature Coefficient [Pmax | -034%℃ | ||||||||
| Maximum Power. Pmax [W] | 540 | 545 | 550 | 555 | 560 | Temperature Coefficient [Voc] | -0.28%/℃ | |||
| Open Circuit Waltage:voc [M] | 49.70 | 49.90 | 50.10 | 50.30 | 50.50 | Temperature Coefficient llsc) | 005%/℃ | |||
| Short Circuit Cument Ise[A] | 13.78 | 13.83 | 13.88 | 13.93 | 13.98 | NMOT | 45±2℃ | |||
| altage at Maomum Power.Vmp[M] | 41.56 | 41.76 | 41.96 | 42.16 | 42.36 | |||||
| Current at Maximum Power.Imp [A] | 13.00 | 13.05 | 13.11 | 13.17 | 13.23 | |||||
| Madue Eficiency:n[% | 209 | 211 | 21.3 | 21.5 | 21.7 | |||||
| STC: Iradiance 1000Wm², Cell Tempeature 25C,Ar Mass1.5,Measuring Tolerance 3% | ||||||||||
| Electrical Characteristics (NMOT) | Mechanical Parameters | |||||||||
| Maximum Power: Fmax lW | 408.6 | 4124 | 4162 | 420.0 | 4238 | cells TPC | ||||
| Open Qnuit Voltaga:voc [M] | 46.48 | 46.74 | 47.01 | 4728 | 47.47 | Cell Orientation 144[6X24 | ||||
| Short Circuit Curent: Isc[A] | 11.04 | 11.09 | 11.12 | 11.16 | 11.20 | Dimension 227842 X1134±2×30mm | ||||
| Voltage at Maoimum Power:Vmp [M] | 3845 | 38.67 | 38.90 | 39.12 | 3931 | Weight 32.7kg | ||||
| Current at Maximum Rower: Imp [A] | 10.62 | 10.66 | 10.70 | 10.74 | 10.79 | ront Glass 20mm high tarsmitangn,ARcrated temponed dass | ||||
| NMOT: Iradiance 800Wm²,Ambient Temperature 20°℃,Ar Mass1.5, Wind Speed 1ms | Rear dass 20mmhightransmitance,coated tempered dass | |||||||||
| Electrical characteristics with different rear side power gain | Frame Anodized aluiminum alloy frame | |||||||||
| Maximum Power.Pmax[W] | 5670 | 5723 | 577.5 | 582.8 | 5880 | Junction Box P6B 3 diodes | ||||
| 5% | Module Eficiengy:n[%] | 21.9 | 22.2 | 22.4 | 226 | 22.8 | Output Cable 40mm² | |||
| 15% | Maymum Power;PmatW] 6210 Module Eficiengy:n[%]240 |
6268 24.3 |
6325 24.5 |
6383 247 |
6440 24.9 |
Cable Length +400mm,-200mm, length can be customized | ||||
| Wind/Snow Load 2400Pa/5400Pa | ||||||||||
| 25% | Maxmum Power: Pmax[W Modde Efficiency:n[] |
6750 26.1 |
6813 26.4 |
687.5 266 |
6938 269 |
7000 27.1 |
Pockaging 36pcs per pallet, 720pcs per 40HC | |||
WHY CHOOSE US
1. More than 12 years experience in solar power generation system.
2. Project Design of Solar Power Generation System.
3. Located in Asia's Largest Lithium Battery industry Zone.
4. Passed the certification of TUVULCE and JET
5. The product series includes solar panels, inverters,batteries, mounting brackets.
6. Provide one-stop photovoltaic solution.
