Product Details
Place of Origin: China
Brand Name: Jinko
Certification: PERC, Half Cell, MWT, HJT
Model Number: Tiger Pro 60HC
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: $0.14~$0.16
Packaging Details: carton pallet 36pcs/pallets, 72pcs/stack, 864pcs/ 40'HQ Container
Delivery Time: 5-15 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000+peices/month

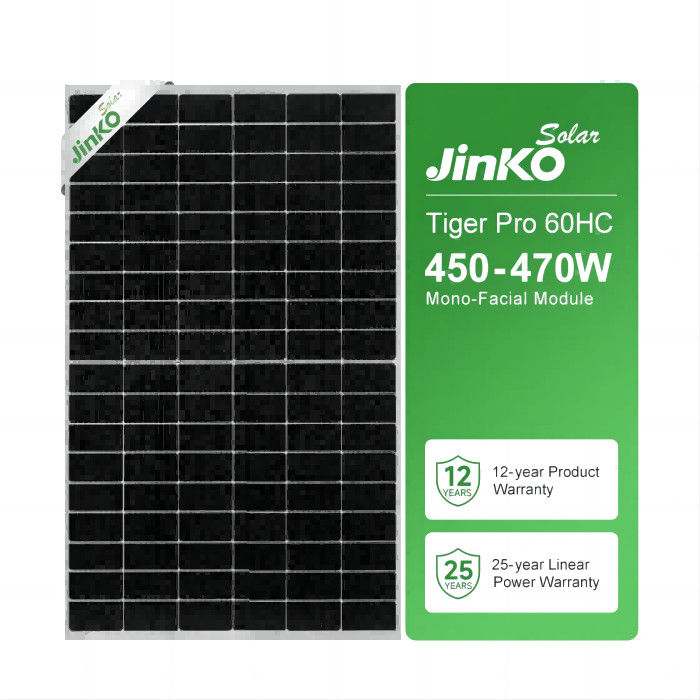

Jinko Tiger Pro Solar Panel 460w 470w 450 Watt Monofacial Single Glass Fotovoltaico Module
Features
1,Ultra-high Power for the Lowest LCOE and Highest IRR
2,Ultra-high Efficiency of 21.4%
3,Reliable Tiling Ribbon Technology Eliminating the Inter-cell Gap
4,Multi Busbar Technology Decreasing the Resistance Loss
| SPECIFICATIONS | ||||||||||
| Module Type | JKM450M-60HL4 | JKM455M-60HL4 | JKM460M-60HL4 | JKM465M-60HL4 | JKM470M-60HL4 | |||||
| JKM450M-60HL4-V | JKM455M-60HL4-V | JKM460M-60HL4-V | JKM465M-60HL4-V | JKM470M-60HL4-V | ||||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax) | 450Wp | 335Wp | 455Wp | 339Wp | 460Wp | 342WP | 465Wp | 346Wp | 470Wp | 350Wp |
| Maximum Power Vollage [Vmp] | 33.91V | 31.73V | 34.06V | 31.91V | 34.20V | 32.07V | 34.37V | 32.12V | 34.56V | 32.32V |
| Maximum Power Curent [lmp] | 13.27A | 10.55A | 13.36A | 10.61A | 13.45A | 10.67A | 13.53A | 10.77A | 13.60A | 10.82A |
| Open-cicuit Voltage [Voc] | 41.18V | 38.87V | 41.33V | 39.01V | 41.48V | 39.15V | 41.63V | 39.29V | 41.78V | 39.43V |
| Short-circuit Curent [lsc] | 13.85A | 11.19A | 13.93A | 11.25A | 14.01A | 11.32A | 14.09A | 11.38A | 14.17A | 11.344 |
| Module Eficiency SIC阅 | 20.85% | 21.08% | 21.32% | 21.55% | 21.78% | |||||
| Operafing Temperature(C) | 40℃-+85℃ | |||||||||
| Maximum system votoge | 1000/1500VDC [IEC | |||||||||
| Maximum series fuse rafing | 25A | |||||||||
| Power tolerance | 0-+3% | |||||||||
| Temperature coefficients of Pmax | 0.35%/℃ | |||||||||
| Temperature coefficients of Voc | -0.28%/℃ | |||||||||
| Temperature coefficients of sc | 0.048%/℃ | |||||||||
| Nomindl operating cel temperature [NOCI] | 45±2℃ | |||||||||
Chongqing PVkingdom New Energy Co.,Ltd., is a new energy technology enterprise engaged in new energy project design,
Authorized
WHY CHOOSE US
1. More than 12 years experience in solar power generation system.
2. Project Design of Solar Power Generation System.
3. Located in Asia's Largest Lithium Battery industry Zone.
4. Passed the certification of TUVULCE and JET
5. The product series includes solar panels, inverters,batteries, mounting brackets.
6. Provide one-stop photovoltaic solution.
Video
