Product Details
Place of Origin: China
Brand Name: Jinko
Certification: CE
Model Number: 54HL4-(V) 410-430 Watt
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: $0.13~$0.15
Packaging Details: carton pallet 36pcs/pallets, 72pcs/stack, 936pcs/ 40'HQ Container
Delivery Time: 5-15 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000+peices/month
Cell Size: |
108 |
Type: |
PERC, N-TYPE, Mono |
Panel Efficiency: |
22.02% |
Panel Dimensions: |
1722*1134*30mm |
Model Number: |
Tiger Pro 54HC 410-430 Watt |
Weight: |
22 Kg |
Front Glass: |
3.2mm,Anti-Reflection Coating |
Junction Box: |
IP68 Rated |
Output Cables: |
TUV 1*4.0mm2 |
Cell Size: |
108 |
Type: |
PERC, N-TYPE, Mono |
Panel Efficiency: |
22.02% |
Panel Dimensions: |
1722*1134*30mm |
Model Number: |
Tiger Pro 54HC 410-430 Watt |
Weight: |
22 Kg |
Front Glass: |
3.2mm,Anti-Reflection Coating |
Junction Box: |
IP68 Rated |
Output Cables: |
TUV 1*4.0mm2 |

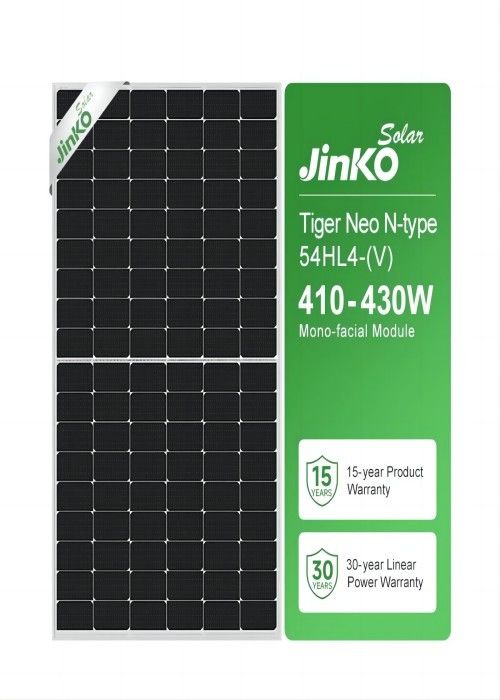

With 30 Year Product Warranty Tiger Neo N-Type 54hl4-(V) 410-430 Watt Solar Panels Jinko Price Solar Panels Jinko
Features
1,Power 635W Efficiency 23.23% Power Warranty 30 years Temperature Coefficient -0.29%/℃ Max.Bifaciality 85%
Topcon Technology Innovation Selective Passivation Contact
2,Ultra-high Power Generation/Ultra-high Efficiency
3,Higher Bifacial Gain
4,Enhanced Reliability
5,Lower LID / LETID
6,High Compatibility
7,Optimized Temperature Coefficient
8,Lower Operating Temperature
9,Optimized Degradation
10,Outstanding Low Light Performance
11,Exceptional PID Resistance
12,The temperature coefficient of P-type is -0.35%/℃,Under high temperature condition, Tiger Neo can generate 2% more power than P-type
The efficiency of HPBC+ cells exceeds 25.8%.
| SPECIFICATIONS | ||||||||||
| Module Type | JKM410N-54HL4 | JKM415N-54HL4 | JKM420N-54HL4 | JKM425N-54HL4 | JKM430N-54HL4 | |||||
| JKM410N-54HL4-V | KM41SN-54HL4-V | JKM420N-54HL4-V | JKM425N-54HL4-V | JKM430N-54HL4-V | ||||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Masimum Power [Pmax] | 410Wp | 308Wp | 415Wp | 312Wp | 420Wp | 316Wp | 425Wp | 320Wp | 430Wp | 323Wp |
| Mavimum Power Voltage [Vmp] | 31.13V | 29.06V | 31.32V | 29.21V | 31.51V | 29.34V | 31.70V | 29.50V | 31.88V | 29.63V |
| Maimum Power Curent [lmp] | 13.17A | 10.61A | 13.25A | 10.68A | 13.33A | 10.76A | 13.41A | 10.83A | 13.49A | 10.91A |
| Open-cirauit Voltoge [Voc] | 37.73V | 35.84V | 37.92V | 36.02V | 38.11V | 36.20V | 38.30V | 36.38V | 38.49V | 36.56V |
| Shorl-circuit Cument [bc] | 13.91A | 11.23A | 13.99A | 11.29A | 14.07A | 11.36A | 14.15A | 11.42A | 14.23A 11.49A | |
| Modue Efficiency STC (%) | 21.00% | 21.25% | 21.51% | 21.76% | 22.02% | |||||
| Operating TemperaturefQ | -40℃-+85℃ | |||||||||
| Mavimum system voltage | 1000/1500VDC [IEC] | |||||||||
| Mavimum series fuse rating | 25A | |||||||||
| Power toerance | 0-+3% | |||||||||
| Temperature coeficients of Pmax | 0.29%/℃ | |||||||||
| Temperature coeficients ofVoc | 0.25%/℃ | |||||||||
| Temperature coefficients of lsc | 0045%/℃ | |||||||||
| Nomind operating cel temperature [NOCT] | 45±2℃ | |||||||||
Chongqing PVkingdom New Energy Co.,Ltd., is a new energy technology enterprise engaged in new energy project design,
Authorized
WHY CHOOSE US
1. More than 12 years experience in solar power generation system.
2. Project Design of Solar Power Generation System.
3. Located in Asia's Largest Lithium Battery industry Zone.
4. Passed the certification of TUVULCE and JET
5. The product series includes solar panels, inverters,batteries, mounting brackets.
6. Provide one-stop photovoltaic solution.
Video
