Product Details
Place of Origin: China
Brand Name: Jinko
Certification: CE/TUV
Model Number: Tiger Neo N-type 54HL4-B 400-420 Watt
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: $0.13~$0.15
Packaging Details: carton pallet 36pcs/pallets, 7pcs/stack, 8pcs/40'HQ Container
Delivery Time: 5-15 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000+peices/month
Cell Size: |
166mmx166mm |
Type: |
PERC, Half Cell, All Black, N-TYPE |
Panel Efficiency: |
21.51% |
Panel Dimensions: |
1722*1134*30mm (67.79*44.65*1.18 Inch) |
Cell Type: |
N Type Mono-crystalline |
Weight: |
22 Kg (48.50 Lbs |
Cell Size: |
166mmx166mm |
Type: |
PERC, Half Cell, All Black, N-TYPE |
Panel Efficiency: |
21.51% |
Panel Dimensions: |
1722*1134*30mm (67.79*44.65*1.18 Inch) |
Cell Type: |
N Type Mono-crystalline |
Weight: |
22 Kg (48.50 Lbs |

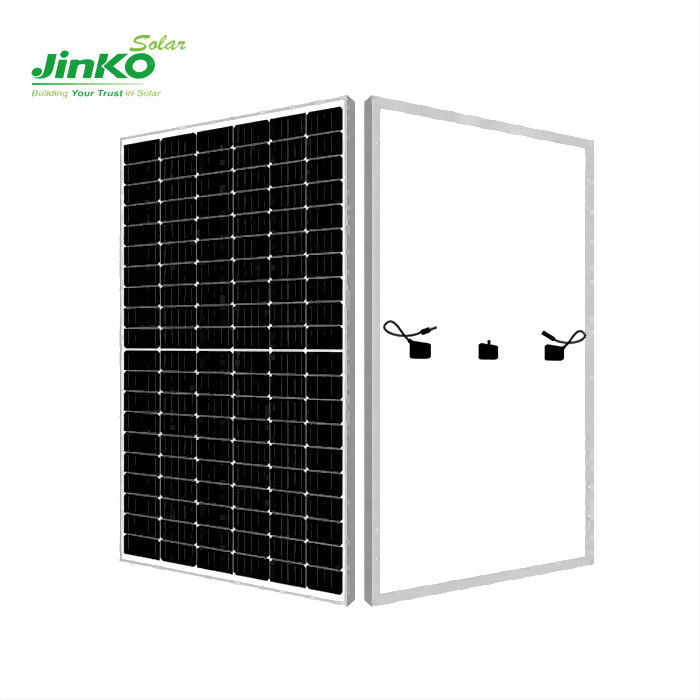

Solar Photovoltaic Panel Jinko Tiger Neo N Type 400 W 410 W 420 Full Black Shingled Unisun
Features
1,Ultra-high Power for the Lowest LCOE and Highest IRR
2,Ultra-high Efficiency of 20.78%
3,Reliable Tiling Ribbon Technology Eliminating the Inter-cell Gap
4,9 Busbar Technology Decreasing the Resistance Loss
| Other attributes | |
| Place of Origin | Anhui, China |
| Panel Dimensions | 1855*1029*30mm |
| Brand Name | JInko |
| Model Number | Tiger N-type JKM400-420N Mono-Facial |
| Brand | Jinko |
| Weight | 20.8kg |
| Cells Type | Mono 182*91mm |
| Application leve | Class A |
| Dimension | 1855*1029*30mm |
| Maximum system voltage | 1500V DC |
| Operate Temperature | 40~+85℃ |
| Maximum series fuse rating | 20A |
| Output Cables | TUV 1*4.0mm² |
| Junction Box | IP68 Rated |
