Product Details
Place of Origin: China
Brand Name: TW Solar
Certification: TUV CE CQC
Model Number: TWMPD-60HS445-465W_00
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: $0.13~$0.15
Packaging Details: carton pallet 31pcs per pallet, 744pcs per 40'HC
Delivery Time: 5-15 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000+peices/month
Cells: |
TPC |
Cell Orientation: |
120[6X20] |
Dimension: |
1908±2×1134±2X35mm |
Weight: |
24.2kg |
Front Glass: |
3.2mm High Transmittance, AR Coated Tempered Glass |
Backsheet: |
White |
Frame: |
Anodized Aluminum Alloy Frame |
Junction Box: |
P68,3 Diodes |
Cells: |
TPC |
Cell Orientation: |
120[6X20] |
Dimension: |
1908±2×1134±2X35mm |
Weight: |
24.2kg |
Front Glass: |
3.2mm High Transmittance, AR Coated Tempered Glass |
Backsheet: |
White |
Frame: |
Anodized Aluminum Alloy Frame |
Junction Box: |
P68,3 Diodes |

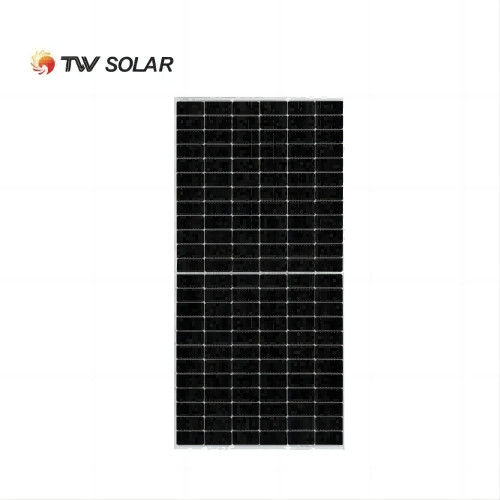

TW Cheap Panel Solar Costos In Stock 445W 450W 455W 460W 465 Watt Half Cell High Efficiency Mono Solar Panel
Features
1,Ultra-high Power for the Lowest LCOE and Highest IRR
2,Ultra-high Efficiency of 20.78%
3,Reliable Tiling Ribbon Technology Eliminating the Inter-cell Gap
4,9 Busbar Technology Decreasing the Resistance Loss
| Maximum Power: Pmax [W] 445 450 455 460 465 |
| Open Circuit Voltage:Voc[V] 41.04 41.21 41.38 41.55 41.72 |
| Short Circuit Current: Isc[A] 13.79 13.84 13.89 13.94 13.99 |
| Voltage at Maximum Power: Vmp M] 33.67 33.83 33.99 34.15 34.31 |
| Current at Maximum Power: Imp [A] 13.22 13.30 13.39 13.47 13.55 |
| Module Efficiency:n[% 20.6 20.8 21.0 21.3 21.5 |
| STC: Irradiance 1000W/m², Cell Temperature 25℃, Air Mass1.5, Measuring Tolerance:±3% |
| Maximum Power: Pmax [W] 336.7 340.5 344.3 348.1 351.9 | |
| Open Circuit Voltage:Voc [V] 38.93 39.11 39.30 39.49 39.68 | |
| Short Circuit Current: Isc[A] 10.88 10.91 10.95 10.97 11.01 | |
| Voltage at Maximum Power:Vmp M] 32.15 32.37 32.59 32.81 33.02 | |
| Current at Maximum Power:Imp [A] | 10.47 10.52 10.56 10.61 10.65 |
| NMOT: Irradiance 800W/m²,Ambient Temperature 20℃,Air Mass1.5,Wind Speed 1m/s | |
Chongqing PVkingdom New Energy Co.,Ltd., is a new energy technology enterprise engaged in new energy project design,
Authorized
WHY CHOOSE US
1. More than 12 years experience in solar power generation system.
2. Project Design of Solar Power Generation System.
3. Located in Asia's Largest Lithium Battery industry Zone.
4. Passed the certification of TUVULCE and JET
5. The product series includes solar panels, inverters,batteries, mounting brackets.
6. Provide one-stop photovoltaic solution.
